9.11 Other Devices
9.11.1 SFC block device (BL)
The SFC block is used to check that the specified block in the SFC program is activated.Note14
MELSEC-Q/L/QnA Programming Manual (SFC)
9.11.2 SFC transition device (TR)
This device is used for checking whether or not the transition condition for the specified SFC program block is set to
forced transition.
MELSEC-Q/L/QnA Programming Manual (SFC)
9.11.3 Network No. specification device (J)
(1) Definition
The network No. specification device is used to specify the network number in the link dedicated instructions.
(2) Specification method
In the link dedicated instruction, this device is specified as shown in Figure 9.91.
Remark
For details of the link dedicated instructions, refer to the following.
Manual for each network module
Note14

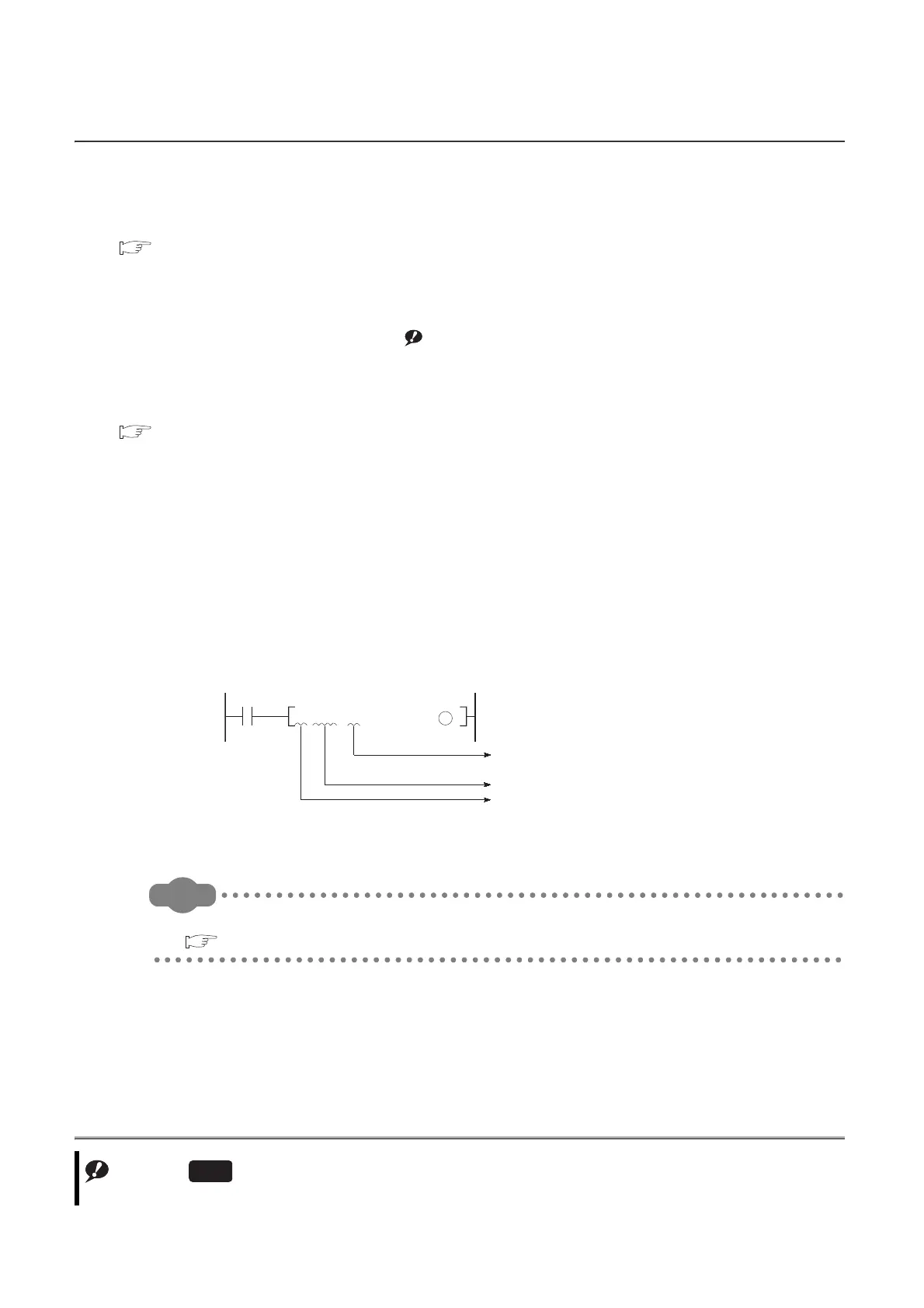

Figure 9.91 How to use the network No. specification device
Note9.14
For the Basic model QCPU, the SFC transition device (TR) cannot be used.
Basic
Note9.14
Jn
JP.READ
S1 S2 S3 D
Instruction name
Network No. specification instruction
Network No. specification device
(n: network No.)
