CHAPTER2 SEQUENCE PROGRAMS
2
3
2.3 Settings When Program is Divided
2.3 Settings When Program is Divided
When one sequence program is divided into multiple programs, execution conditions, such as executing a program
only once at start-up or executing a program at fixed intervals, can be set for each program.Note3
(1) Control by multiple programs dividing one program
The CPU module can store multiple programs divided on the basis of each control unit.
This enables programming of one sequence program by two or more designers.
Note3

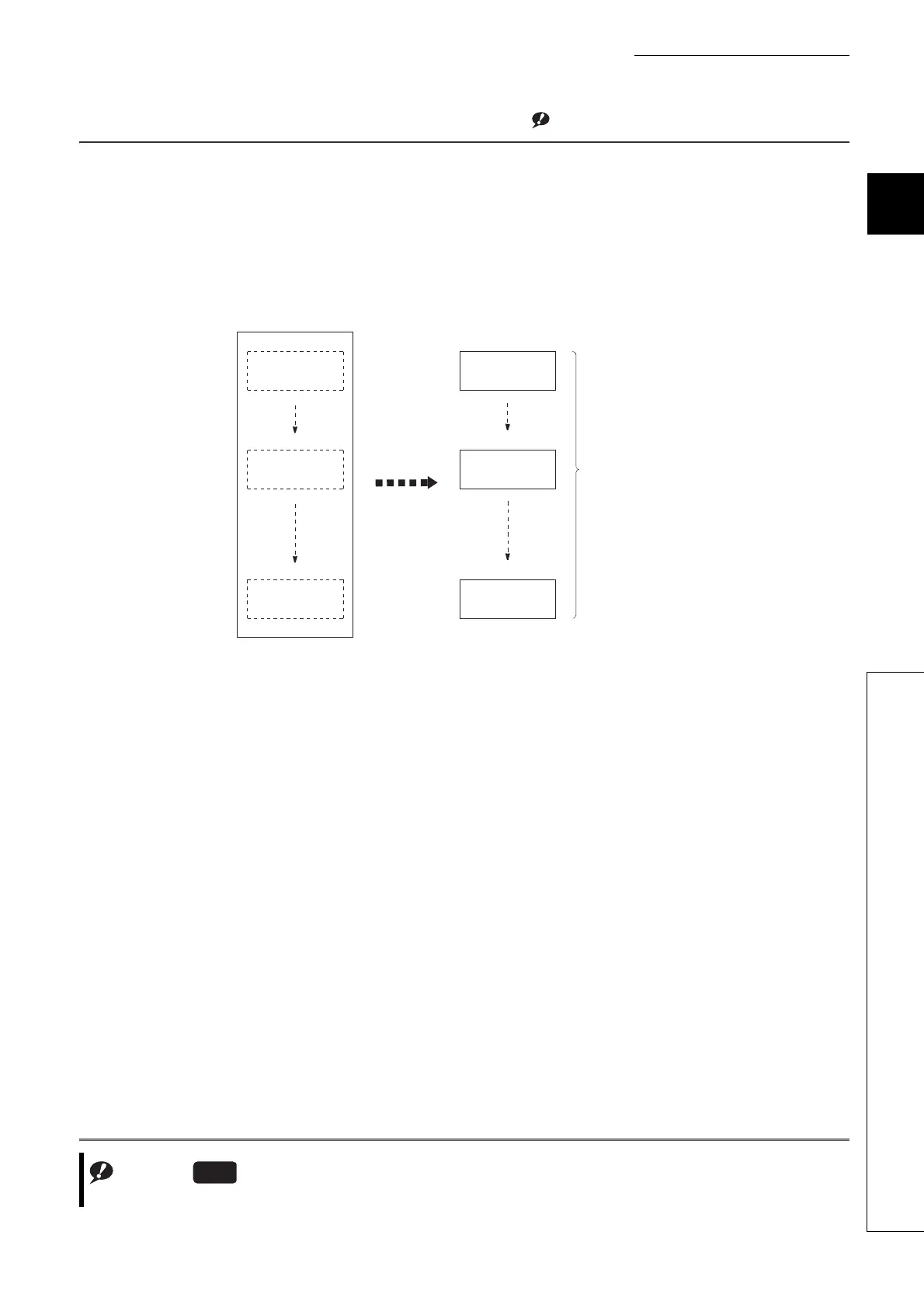

Figure 2.16 Control by multiple programs
Note2.3
Note2.3
The Basic model QCPU cannot execute multiple programs.
Basic
Control data A
Control by one program
Control data B
Control data C
Control data A
Control data B
Control data C
Program A
Program B
Program C
The programs divided on
the basis of each control
data are registered.
Divide one program
into multiple
programs.
