6.7 Q Series-compatible Module Input Response Time Selection (I/O
Response Time)
(1) Definition
This function changes the input response time for each Q series-compatible module.
Table6.10 shows the modules available for input response time change and selectable time settings.
The Q series-compatible modules in the table above take in external inputs within the set time here.
(2) Input response time setting
Set input response time values in the I/O assignment tab of the PLC parameter dialog box.
1) Make I/O assignment for the target module.
2) Click the button.
3) On the screen opened, select an input response time value ("I/O response time").

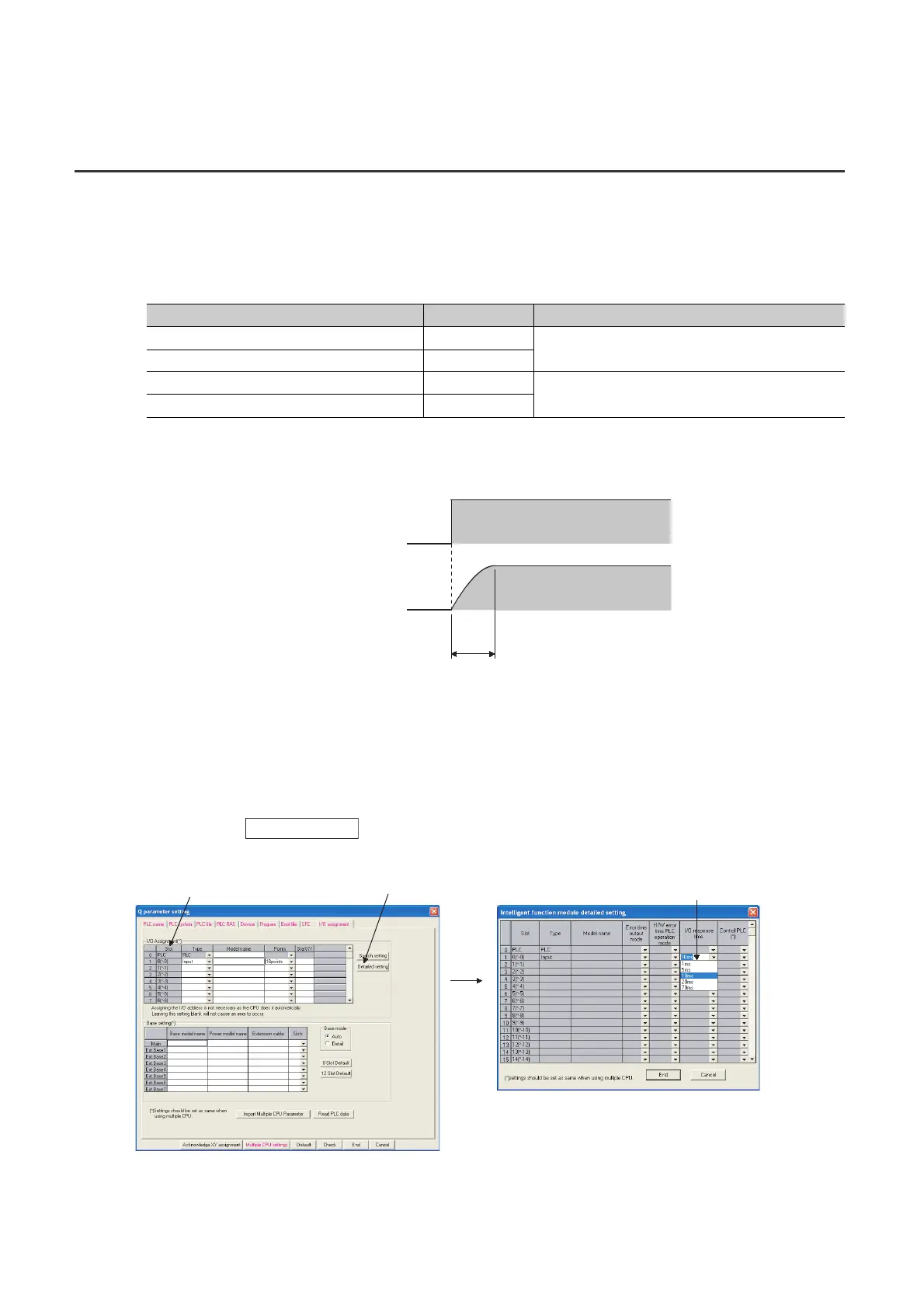

Table6.10 Modules available for input response time change
Module name Type Settable time setting
Input module "Input"
1ms, 5ms, 10ms, 20ms, 70ms
(Default: 10ms)
I/O combined module "I/O Mix"
High-speed input module "Hi Input"
0.1ms, 0.2ms, 0.4ms, 0.6ms, 1ms
(Default: 0.2ms)
Interrupt module "Interrupt"
Figure 6.21 Input response time
Figure 6.22 Input response time setting
OFF
OFF
ON
ON
External input
Q series-compatible module
Input response time
Detailed setting
1) Make I/O assignment.
2) Click the Detailed setting button.
3) Select the input response time.
