Mitsubishi 00JCPU User Manual

11 - 5
CHAPTER11 PROCEDURES FOR WRITING PROGRAM TO CPU MODULE
1
2
11
4
5
6
7
8
11.1 Basic Model QCPU 11.1.3 Procedure for writing a program

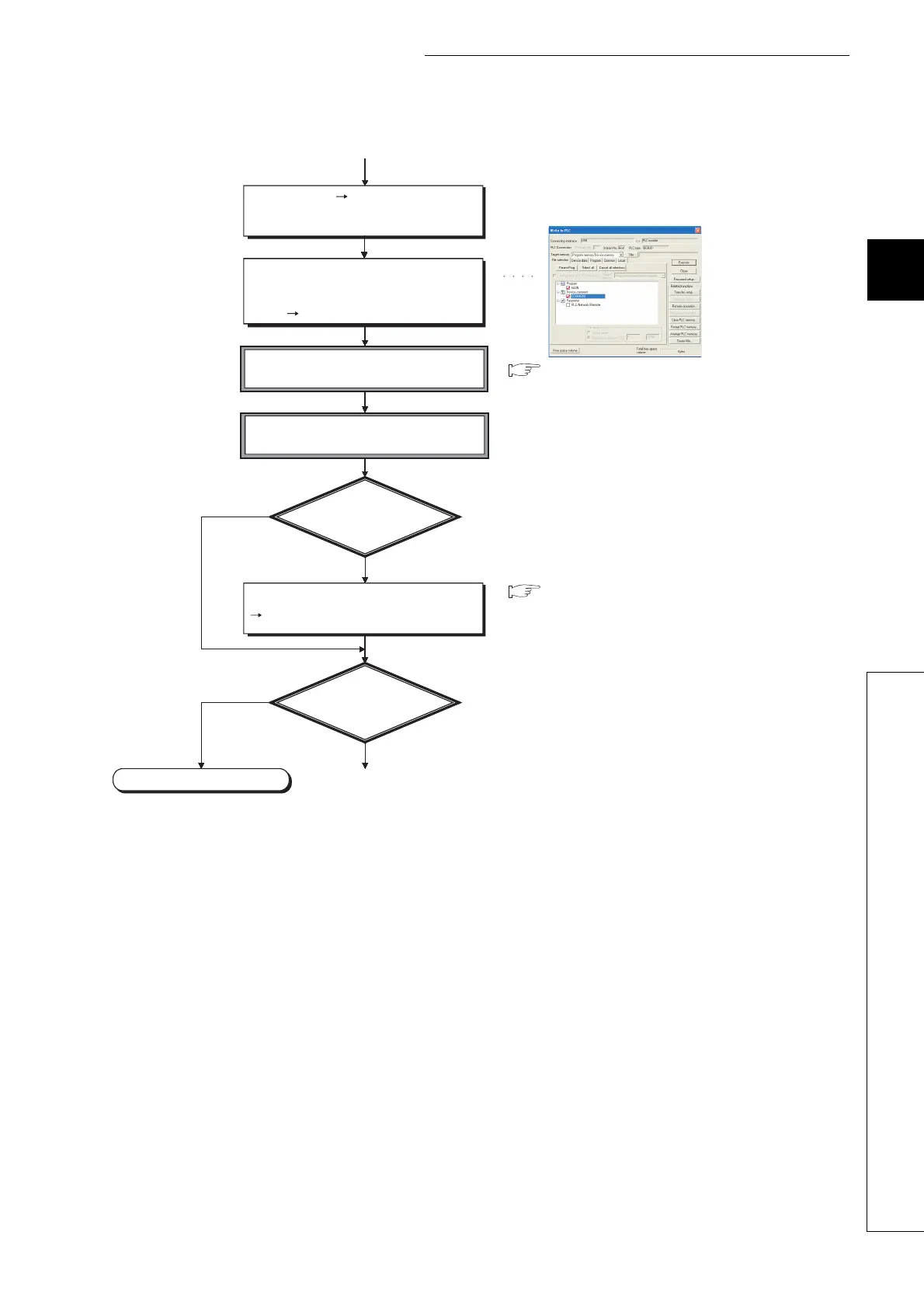

Figure 11.2 Flowchart for writing a program
To write the parameters, created program,
and initial device value, make settings
in the Write to PLC screen displayed by selecting
[Online] [Write to PLC] in GX Developer.
1)
YES
NO
YES
NO
Write to PLC screen
Select [Online] [Format PLC memory]
in GX Developer and format the
program memory or standard ROM.
Power off the programmable controller
and then on or reset the CPU module.
Set the RUN/STOP/RESET switch to RUN
to change the CPU module in the RUN status.
Is the ERR. LED
on the CPU module on
(flashing)?
Check the error cause in the System Monitor
screen displayed by selecting [Diagnostics]
[System Monitor] in GX Developer or in the
"PLC diagnostics" screen and remove the error.
Start boot operation?
QCPU User's Manual
(Hardware Design, Maintenance and Inspection)
QCPU User's Manual
(Hardware Design, Maintenance and Inspection)
End
To Section 11.1.3
