Appendix 3 Final assembly of training devices
STS Part 2 - This appendix describes the specications and connection method for the training device used with
this inverter training document.
Motor
Inverter
FR-E720S-008-EC (200VAC)
(Mitsubishi Electric)
U
V
W
L1
CNP1
L2
L3
Moulded case circuit breaker
NF30-FA
(Mitsubishi Electric)
Single-phase
A
C power supply
200VAC
LN
L1 N1
IM
Ground
Ground
24
13
1/L1
3/L2
->
Emergency stop switch
A1 A2
Magnetic contactor
S-T10-1a (200VAC)
(Mitsubishi Electric)
2/T1
4/T2
10 (+5V)
2
5
(Analog common)
0 - 5VDC
1
3
2
Frequency
setting
potentiometer
FM
SD
+
-
Frequency indicator
YM-206NRI
(Mitsubishi Electric)
AC INPUT
AC INPUT
Ground
PU connector
USB connector
USB cable
PC
RS-485
communication
cable
Main circuit
Control circuit
GOT
GT2708-STBA (Mitsubishi Electric)
IV
Voltage/current
input switch

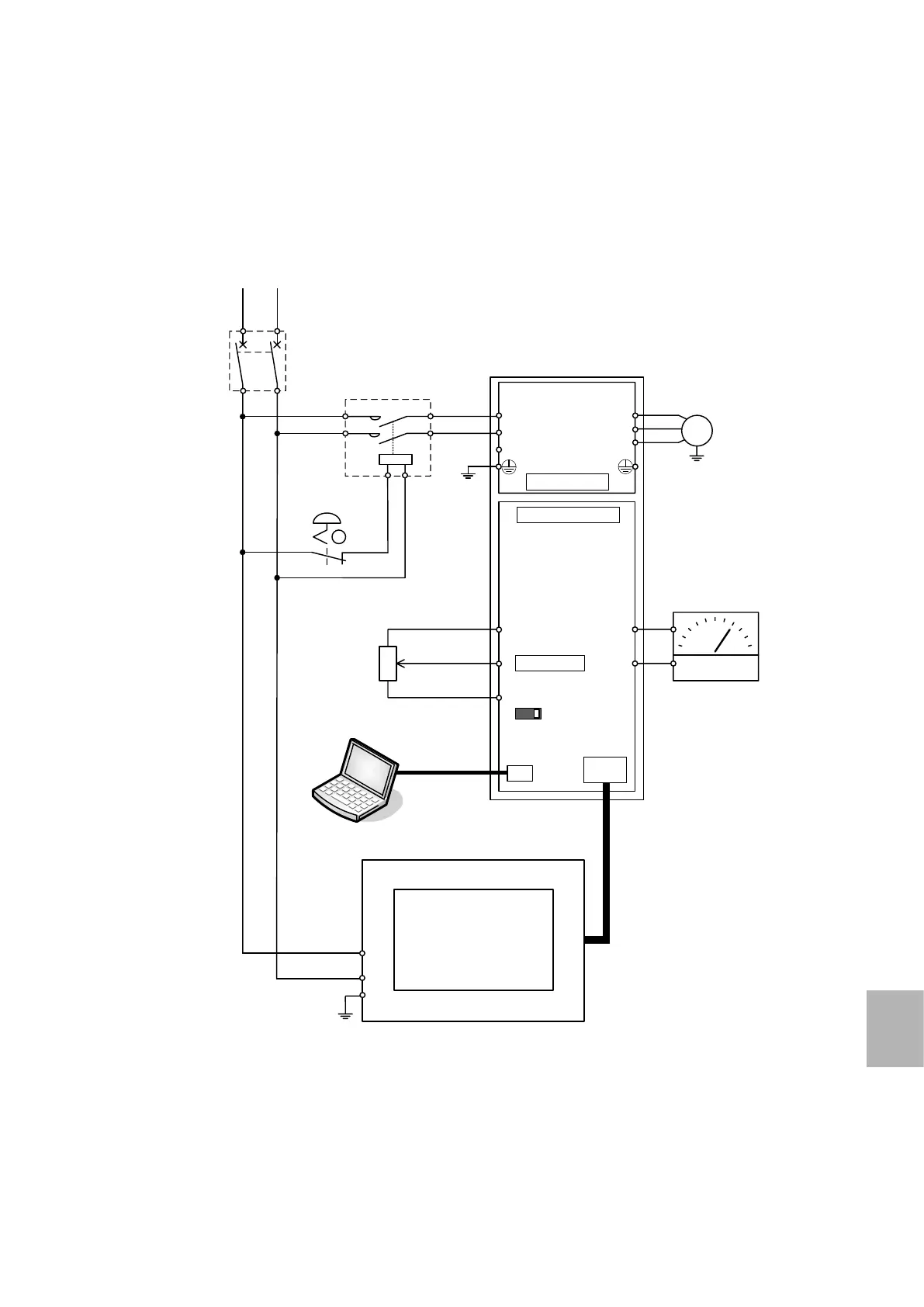

Training device connection diagram
