Mitsubishi FREQROL-E700 User Manual

5-2
5.1 Connecting GOT with the inverter
This document describes the procedure to establish a peer-to-peer connection with Mitsubishi general-purpose
inverter FR-E700 series and Mitsubishi GOT2000 series GT2708.
Refer to specic manuals for information on connecting other inverters and GOTs.
5.1.1 Function overview

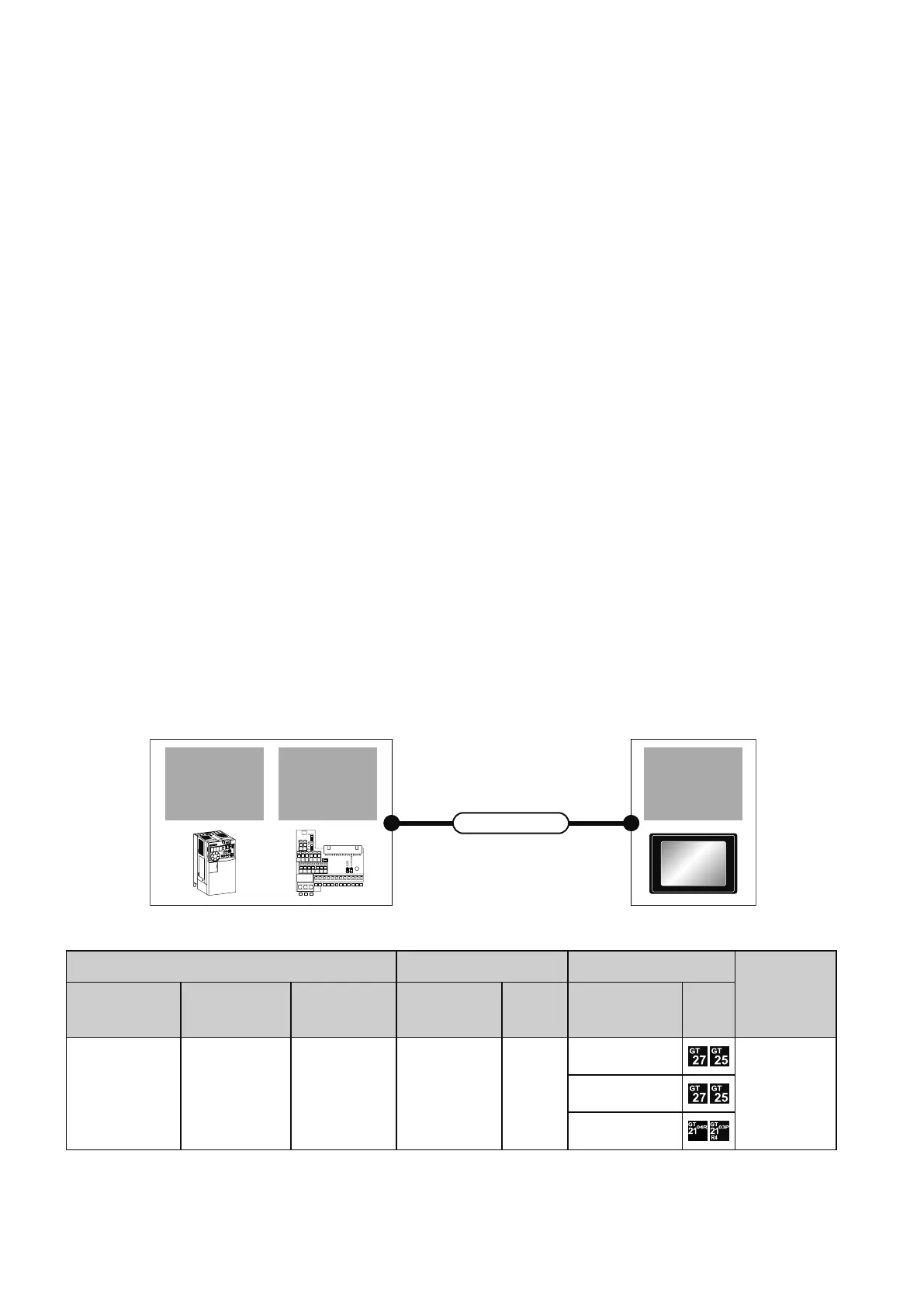

5.1.2 System conguration
When connecting to one inverter
Inverter Connection cable GOT
Number of
connectable
equipment
Model name
Control terminal
option
Communication
type
Connection
diagram number
Max.
distance
Option device Model
FREQROL-E700 - RS-485
RS485
connection
diagram
500m
- (Built into GOT)
1 GOT for
1 inverter
GT15-RS4-9S
GT10-C02H-9SC
Control
terminal
option
GOT
Connection cable
Inverter
GOT is an acronym for Graphic Operation Terminal.
Hardware switches and lamps installed to a conventional control panel have been replicated in software and
combined with a touch panel display device to enable viewing of information and device operation via the
monitor screen. The GOT can connect and send commands to up to 31 inverters via RS-485 communication.
The GOT is equipped with USB ports located in the front so that doors do not have to be opened when
performing inverter maintenance. The USB port on the GOT can be used to connect inverters without USB ports
to PCs and use FR Congurator. Parameter conguration backups to SD cards can be performed with GOT2000
or later devices, which enables you to replace your Mitsubishi general-purpose inverter of the same type and
restore the conguration saved on the SD card to the new inverter. This backup and restore functionality also
signicantly reduces time to load data into devices and equipment used for mass production.
