2-8
2.3.3 Control terminals

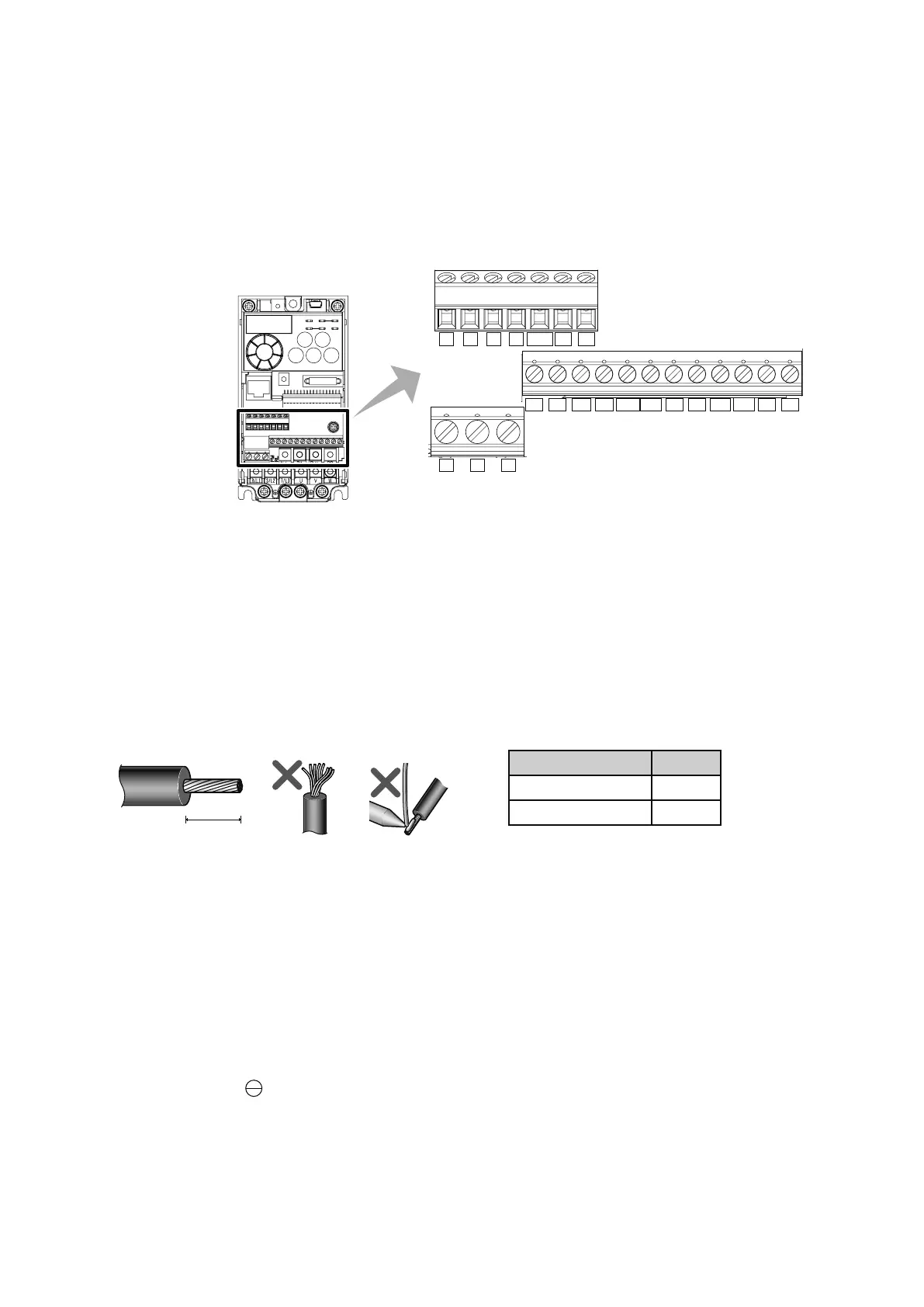

Terminal layout
Wiring method
1.
For the control circuit wiring, strip off the sheath of a cable and use as it is.
Strip off the sheath about the size below. If the length of the sheath peeled is too long, a short circuit may
occur among neighboring wires. If the length is too short, wires might come off.
Wire the stripped wire after twisting it to prevent it from becoming loose. In addition, do not solder it.
2.
Loosen the terminal screw and insert the cable into the terminal.
Cable sheath stripping length
L
L (mm)
Terminals A, B, and C 6
All others 5
3.
Tighten the screw according to the specied tightening torque.
Under tightening may cause cable disconnection or malfunction. Over tightening may cause a short circuit
or malfunction due to damage to the screw or unit.
Tightening torque: 0.5N m to 0.6N m (terminals A, B, and C),
0.22N m to 0.25N m (terminals other than described above)
Screwdriver: small, at-blade screwdriver (tip thickness: 0.4mm/tip width: 2.5mm)
Terminal screw size
M3: (Terminals A, B, and C)
M2: (All others)
SDSD
STF STR
PCSD
RESMRS
RHRMRL
FM
CBA
10 2 5 4 RUN FU SE
To Next Page
