3.4 Basic operation modes
3.4.1 External operation mode

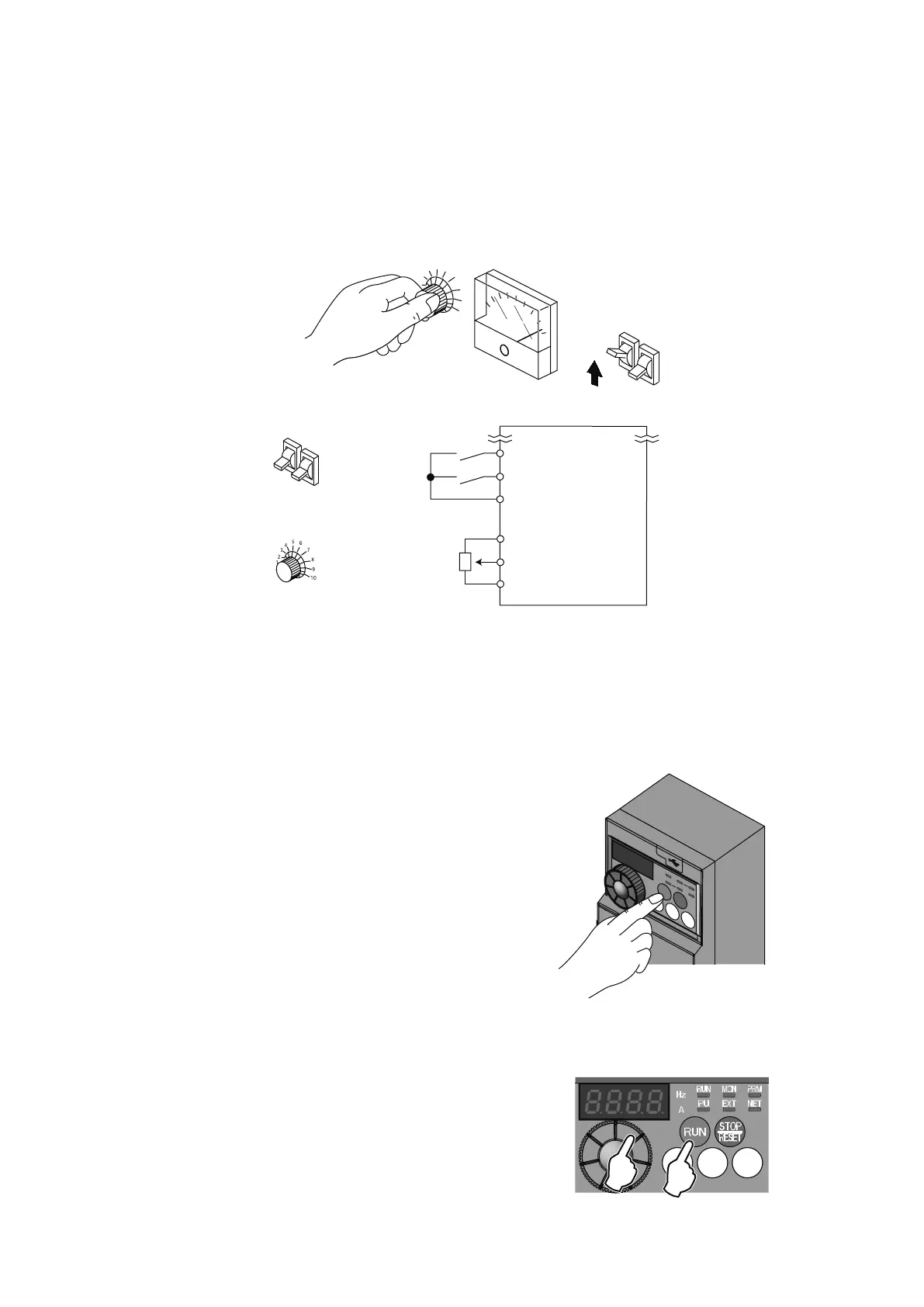

External operation mode is used to input start and frequency commands with external potentiometers and
switches connected to the control circuit terminal.
PU operation mode is used to input start and frequency
commands with operation panels or parameter units
(FR-PU04/FR-PU07).
3
4
5
6
7
8
9
10
Hz
Inverter
Frequency setting
potentiometer
5
10
2
Forward
rotation start
Reverse
rotation start
STF
STR
SD
3.4.2 PU operation mode
Operation panel
