Mitsubishi FREQROL-E700 User Manual

4-4

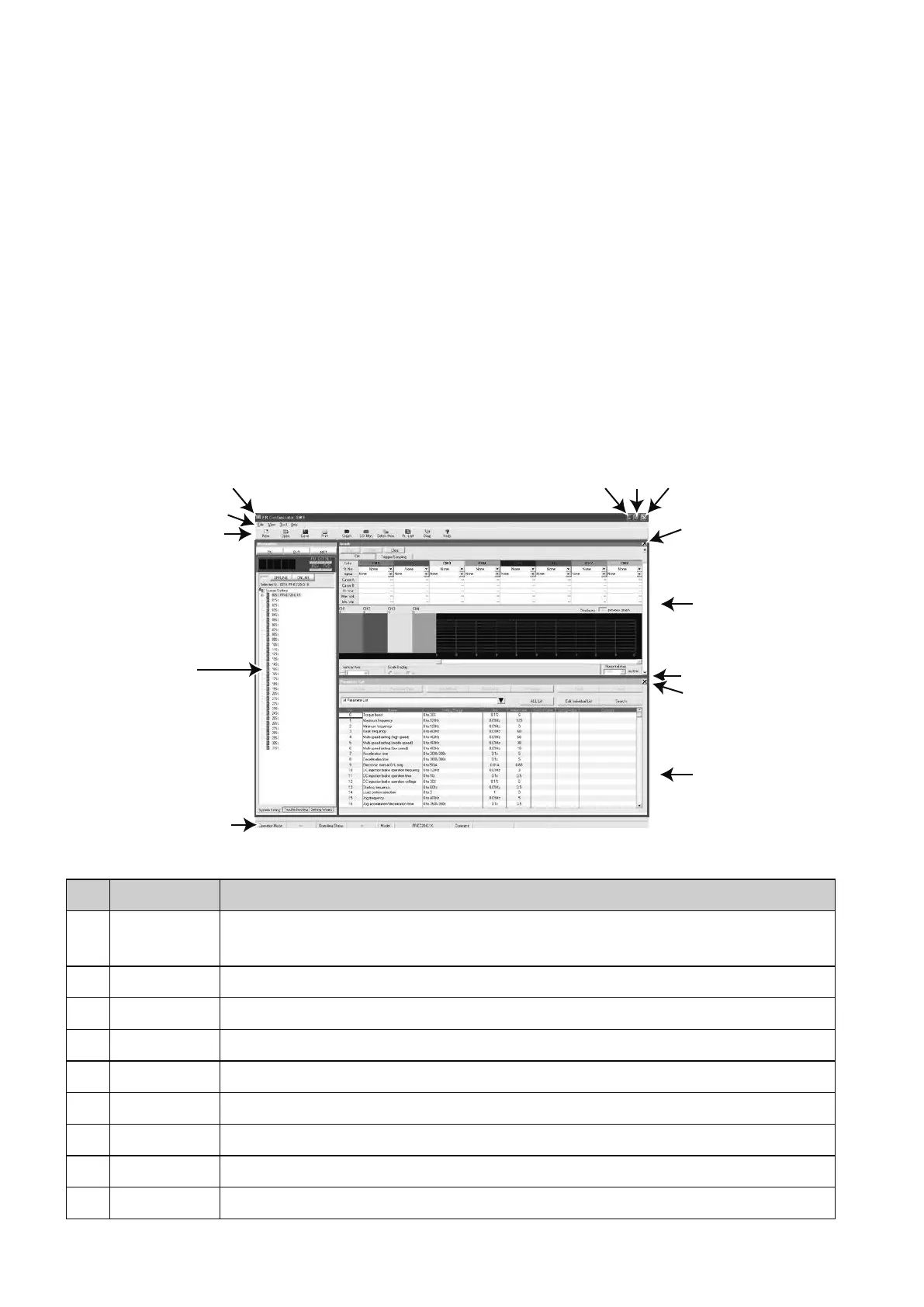

4.1.4 Screen conguration (Main frame)
The Main frame (main window) of FR Congurator consists of three areas.
• Navigation area
An area for showing information of the registered inverter, or for making settings. "Test Operation", "System
Settings", "Setting Wizard", and "Troubleshooting" are available in this area.
• Monitor area
An area for showing obtained monitor data of the inverter. "Graph", "I/O Terminal Monitor", "Machine Analyzer",
"Batch Monitor" are available in this area.
• System area
An area for showing and read/write parameters, or for converting from parameter setting of conventional model.
"Parameter List", "Diagnosis" and "Convert" are available in this area.
D
B
A
Monitor area
C
System area
E
Navigation area
F
F
H
G
I
No. Name Function and description
A Title bar
"FR Congurator SW3" is displayed on the title bar. If a system le has been read, or has been
saved, the le name is displayed.
B Menu bar Each function is available by selecting from the menu.
C Tool bar Each function is available by clicking icons of the tool bar.
D Status bar The model name, Operating status, etc. are shown.
E Split line Adjustment of System area size and Monitor area size is available.
F Conceal button Conceals the Monitor area and System area.
G Minimize button Minimizes the Main frame window size of FR Congurator.
H Maximize button Maximizes the Main frame window size of FR Congurator.
I Close button Closes FR Congurator.
