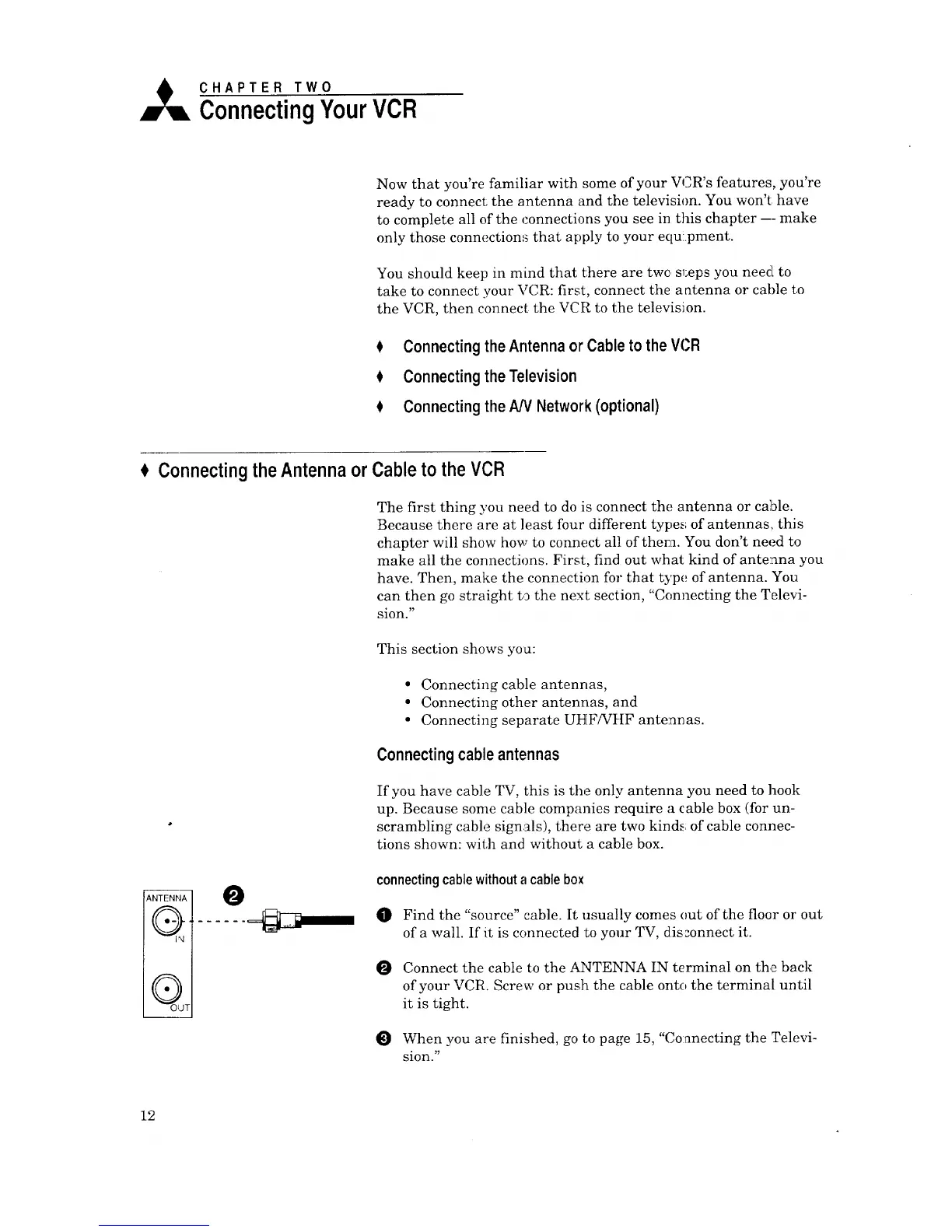

A CHAPTER TWO
ConnectingYourVCR
Now that you're familiar with some of your VCR's features, you're
ready to connect: the antenna and the television. You won't have
to complete all of the connections you see in this chapter -- make
only those connections that apply to your equ:pment.
You should keep in mind that there are twc s!;eps you need to
take to connect your VCR: first, connect the antenna or cable to
the VCR, then connect the VCR to the television.
Connectingthe Antennaor Cable tothe VCR
Connectingthe Television
Connectingthe AN Network(optional)
ConnectingtheAntennaor
__m
ANTENHA
IL O-]I-
A
I! • II
0
Cableto the VCR
The first thing you need to do is connect the antenna or cable.
Because there are at least four different types of antennas, this
chapter will show how to connect all of them. You don't need to
make all the connections. First, find out what kind of antenna you
have. Then, make the connection for that type of antenna. You
can then go straight to the next section, "Connecting the Televi-
sion."
This section shows you:
• Connecting cable antennas,
• Connecting other antennas, and
• Connecting separate UHF/VtIF antennas.
Connectingcableantennas
If you have cable TV, this is the only antenna you need to hook
up. Because some cable companies require a cable box (for un-
scrambling cable signals), there are two kinds of cable connec-
tions shown: with and without a cable box.
connectingcablewithoutacablebox
O Find the "source" cable. It usually comes out of the floor or out
of a wall. If it is connected to your TV, dis:onnect it.
Connect the cable to the A2qTENNA IN terminal on the back
of your VCR. Screw or push the cable onto the terminal until
it is tight.
When you are finished, go to page 15, "(;onneeting the Televi-
sion."
12
