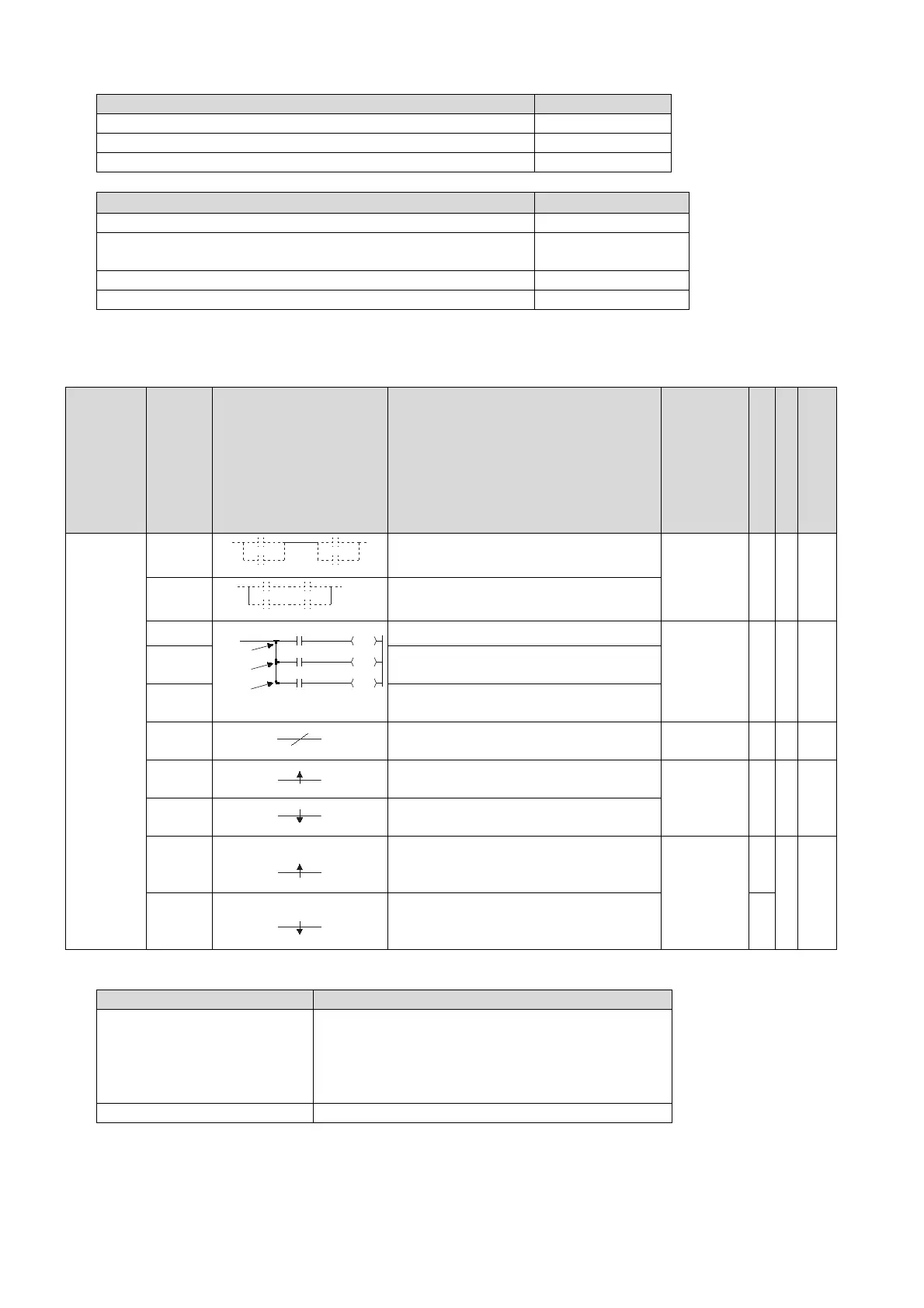

2.3.2 Association instructions
*1: The number of steps may vary depending on the device and type of CPU module being used.
Device Number of Steps
Internal device, file register (R0 to R32767) 1
Direct access input (DX) 1
Devices other than above 3
Device Number of Steps
Internal device, file register (R0 to R32767) Number of Basic Steps
Serial number access format file register (ZR), Extended data register (D),
Extended link register (W), Multiple CPU shared device (U3En\G10000)
Number of Basic Steps +1
Direct access input (DX) Number of Basic Steps +1
Devices other than above Number of Basic Steps +2
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Connection
ANB
• AND between logical blocks
(Series connection between logical blocks)
1-
Page
131
ORB
• OR between logical blocks
(Series connection between logical blocks)
MPS • Memory storage of operation results
1-
Page
132
MRD
• Read of operation results stored with MPS
instruction
MPP
• Read and reset of operation results stored
with MPS instruction
INV • Inversion of operation result 1 -
Page
135
MEP
• Conversion of operation result to leading
edge pulse
1-
Page
136
MEF
• Conversion of operation result to trailing edge
pulse
EGP
• Conversion of operation result to leading
edge pulse
(Stored at Vn)
1
-
Page
137
EGF
• Conversion of operation result to trailing edge
pulse
(Stored at Vn)
*1
Component Number of Basic Steps
High Performance model QCPU
Process CPU
Redundant CPU
Universal model QCPU
LCPU
1
Basic model QCPU 2
ANB
ORB
MPS
MRD
MPP
Vn
Vn
