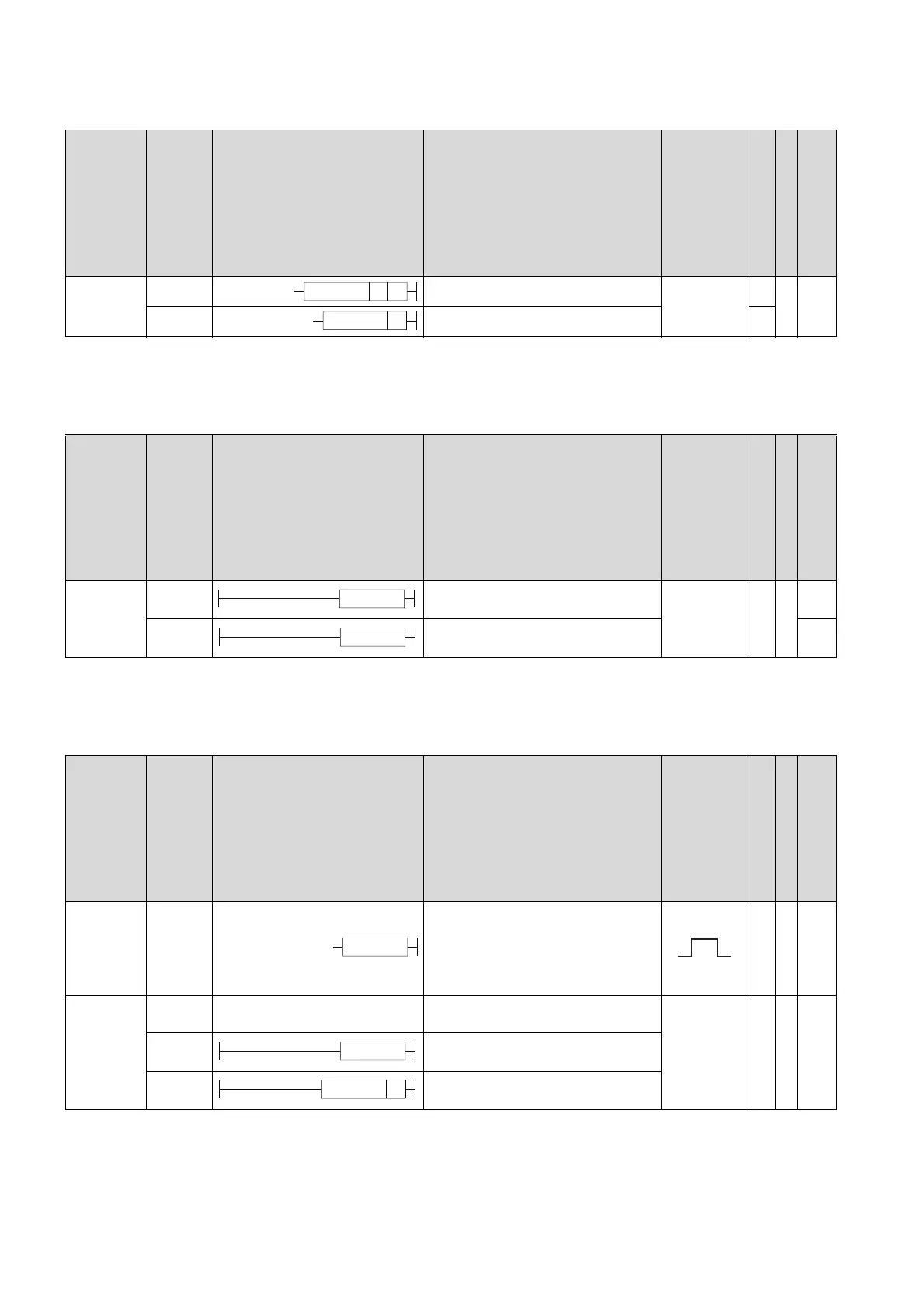

2.3.5 Master control instructions
2.3.6 Termination instructions
2.3.7 Other instructions
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Master
control
MC • Starts master control 2
-
Page
159
MCR • Resets master control 1
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Termination
FEND • Termination of main program
1-
Page
163
END • Termination of sequence program
Page
165
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Stop STOP
• Terminates sequence operation after
input condition has been met.
• Sequence program is executed by
placing the RUN/STOP key switch
back in the RUN position.
1-
Page
167
Ignored
NOP ––––––
• Ignored (For program deletion or
space)
1-
Page
168
NOPLF
• Ignored (To change pages during
printouts)
PAGE
• Ignored (Subsequent programs will be
controlled from step 0 of page n)
MC n D
MCR n
FEND
END
STOP
NOPLF
PAGE n
