Modification mode

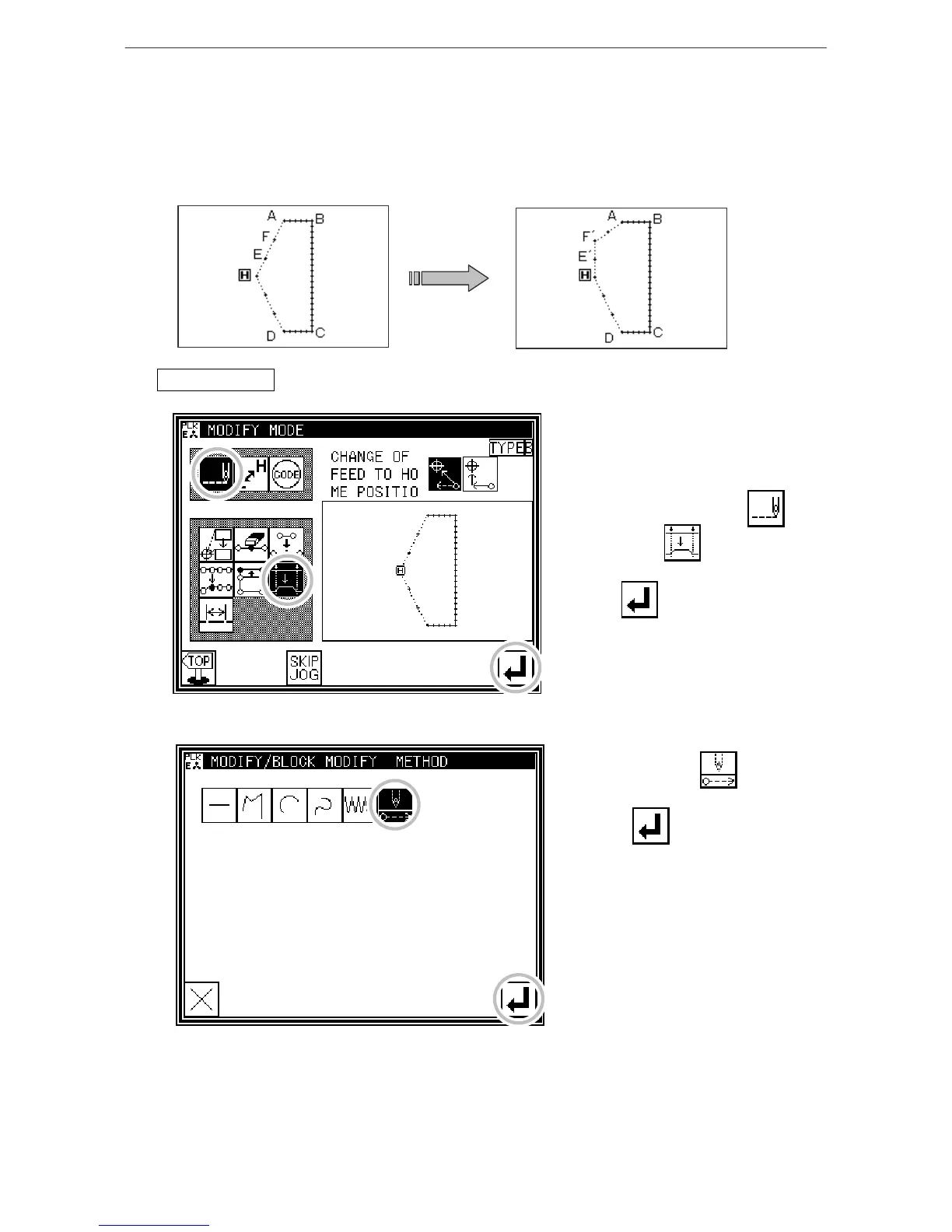

(18) Modifying a block 4 (Changing the feed data)

Methods for designating the modification position with the jog keys. (This is handy

when using the modification origin data as a reference.)



[Example] The E point and F point in the following type of data are each modified to the E' point and F'

point.



Operationdetails

1. Selecting block modification



* Enter the modification mode. (Refer to

the methods for entering the

modification mode.)



* Press Stitch Data Change and

Block Modify .



* Press to open the next screen.



2. Selecting the input type



* Press Feed data .



* Press to set the data.



[12]-38
