Modification mode

(4) Changing the feed data to home position



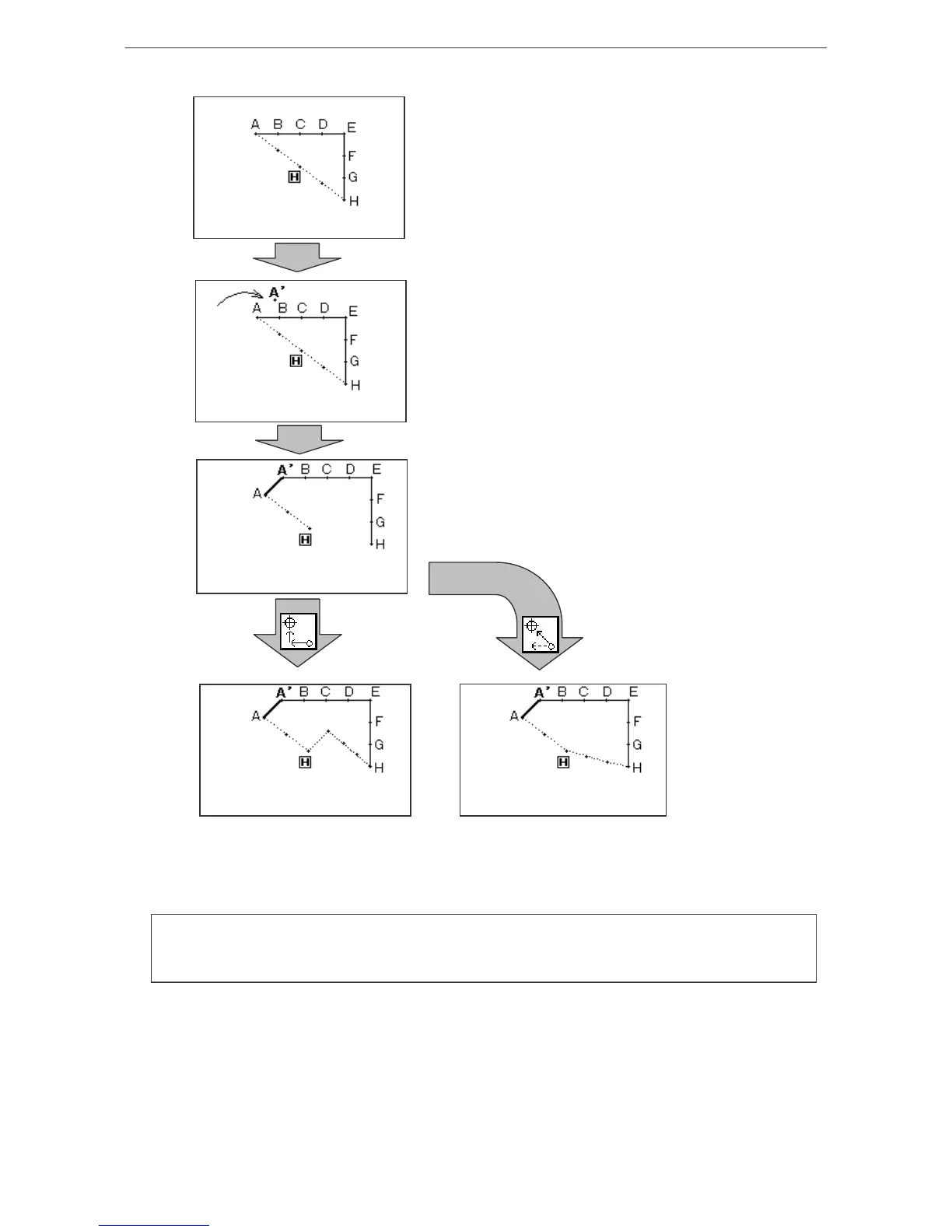

An example for adding the A' point by adding one

stitch to the original stitching data, as shown on the left,

is explained in this section.



Add the A' point as shown on the left.



The B point to H point positions will change when the A'

point is added. Thus, the feed data from the H point to the

home position will also change.

The method for changing this feed data can be selected

with the following keys.



Add return Change return



[ Add return ] [ Change return ]



[Memo] Before modification, check the data. If the data on feed data from the sewing end point

to the home position includes code data, the feed data following the code data will be

modified.



[12]-3
