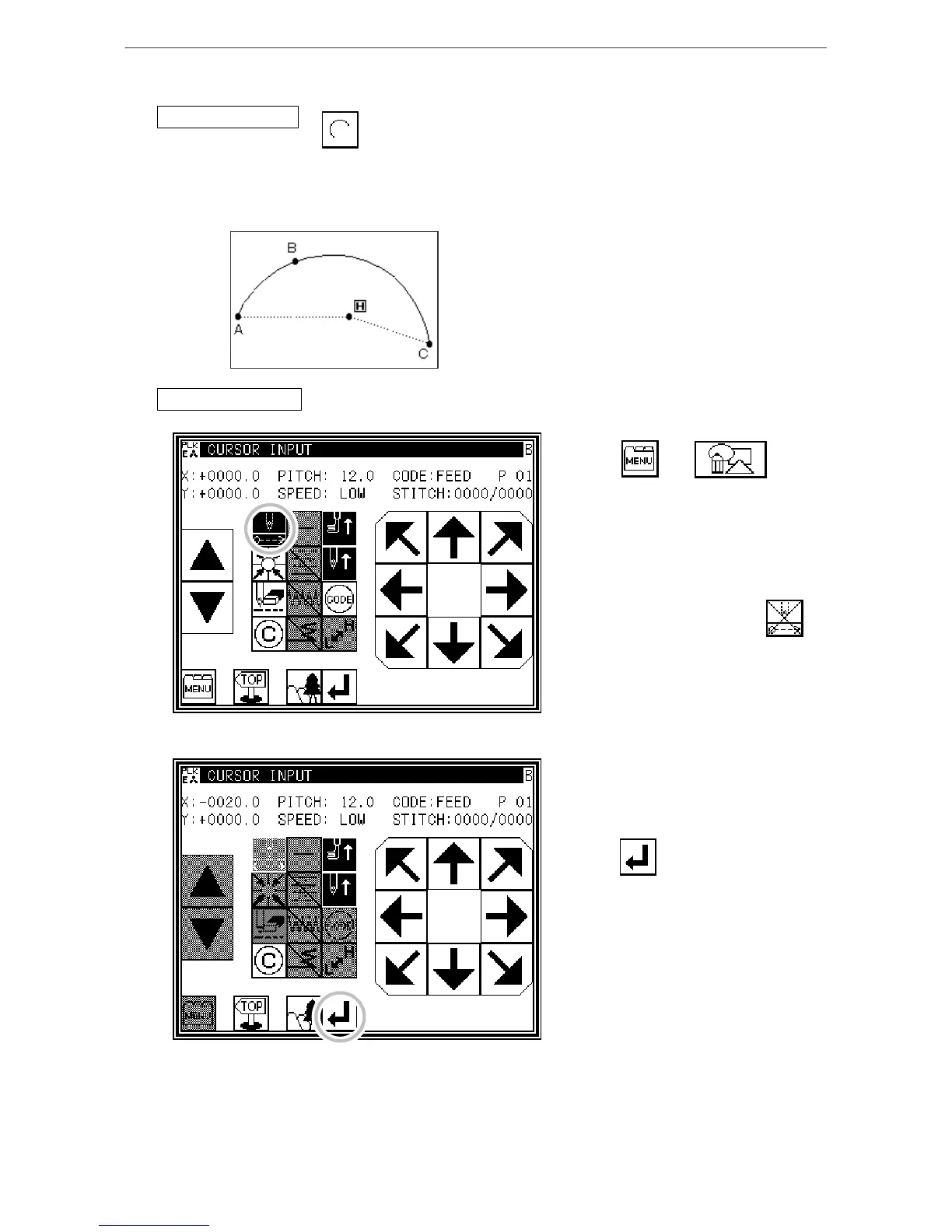

Methods of creating stitching data

(2) Arc input

Operation points

* Designate arc input ( )

* Input three points (An arc, passing through the current position (already input) and two newly

input points, is created.)



[Example] The following type of pattern data will be created.



Operation details

1. Inputting feed data to A point



* Press and on

the Standard screen. After making the

various settings on the Data Setting

Input screen, the Arrow Input screen

will open.



* Check that the code is set to FEED.

If different code is set, press

and set the code to FEED.



* Press the arrow keys and move to the

A point.

(Feed data to A point.)



2. Setting feed data to A point



* The movement amount can be

confirmed.



* Press to set the data.



* Data on feed data to point A will be

created.



[9]-4
