Reading, writing and erasing data (internal memory)

[6] Reading, writing and erasing data (internal memory)

(1) Reading (from internal memory) (The data can also be read out easily by pressing the data

number on the Standard screen. Refer to section [7] Reading the data ([short cut function] internal

memory) for details.)



Operation points

* Select Read from the menu.

* Select the data, and execute reading.



Operation details

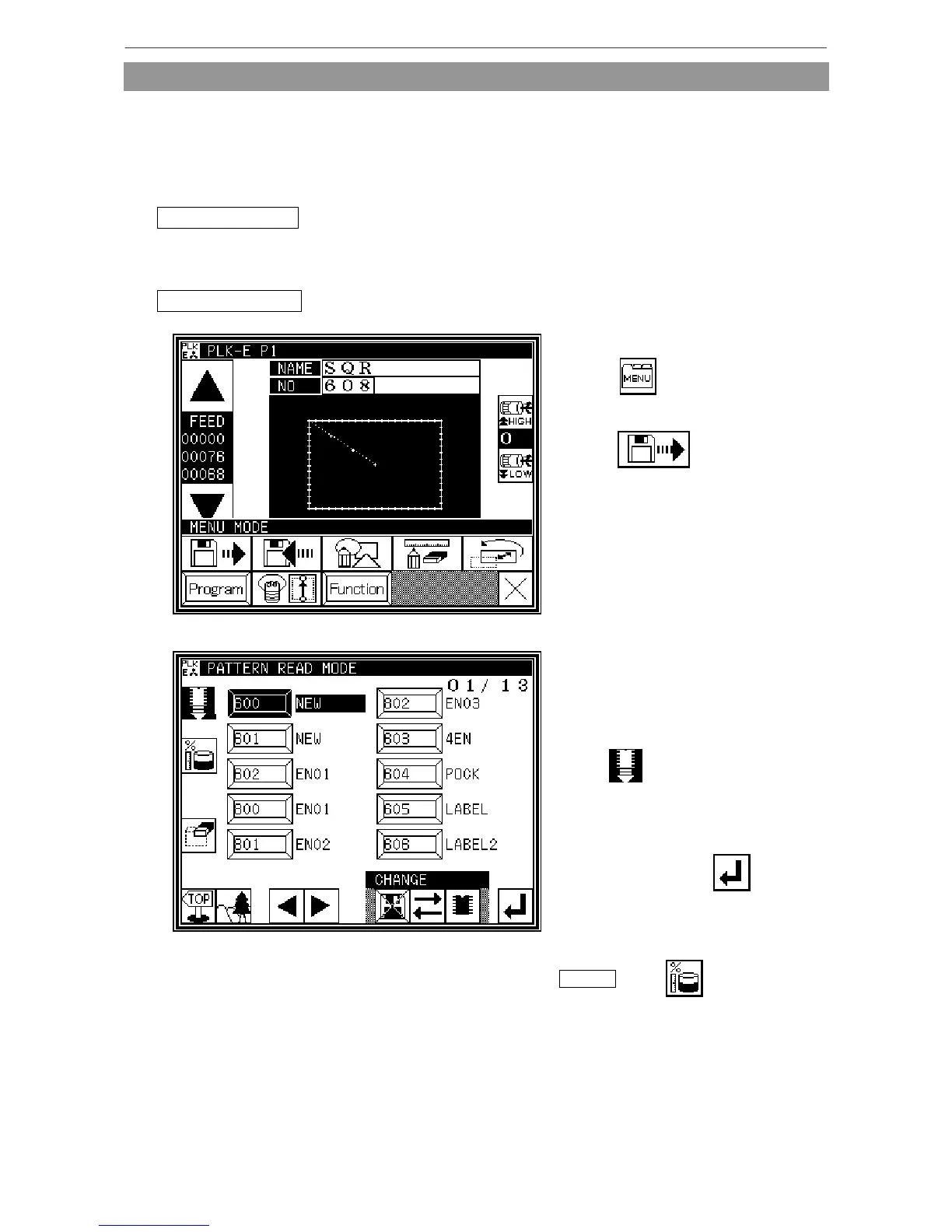

1. Selecting data read



* Press on the Standard

screen, and open the Menu mode.



* Press



2. Selecting and setting the data



* When the screen first appears, the

mode for reading from the internal

memory is selected.



(The mode is displayed at

the upper left of the screen.)

* Press the number of the data to be

read, and then press .



Memo When is pushed,

empty capacity of an internal

memory is seen.



[6]-1
