Troubleshooting Waveforms: I2C BUS 6-19
6.7 I2C BUS
6.7.1 SCL

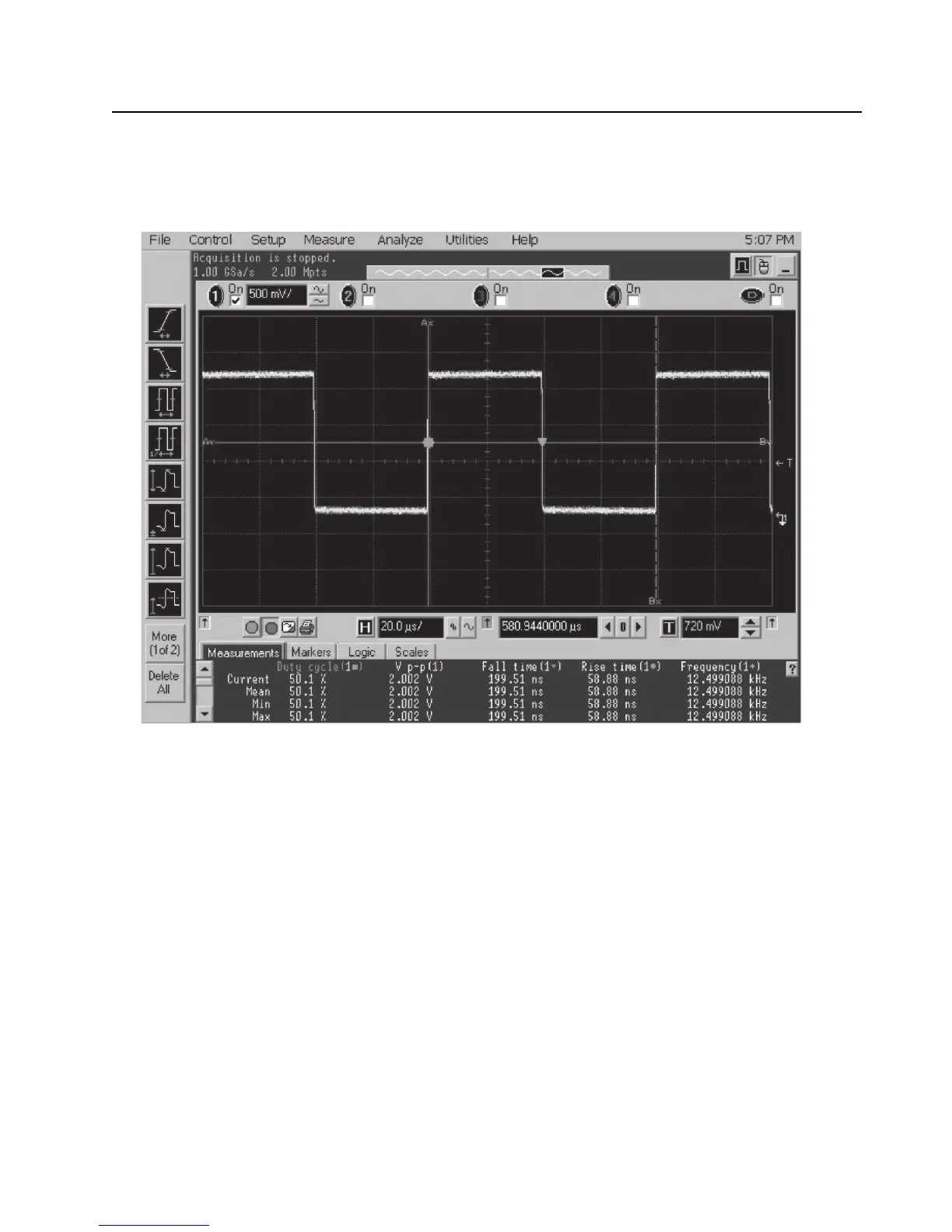

Trace 1: Trace recorded at R6208.
Figure 6-18. I2C Bus – SCA Waveform
