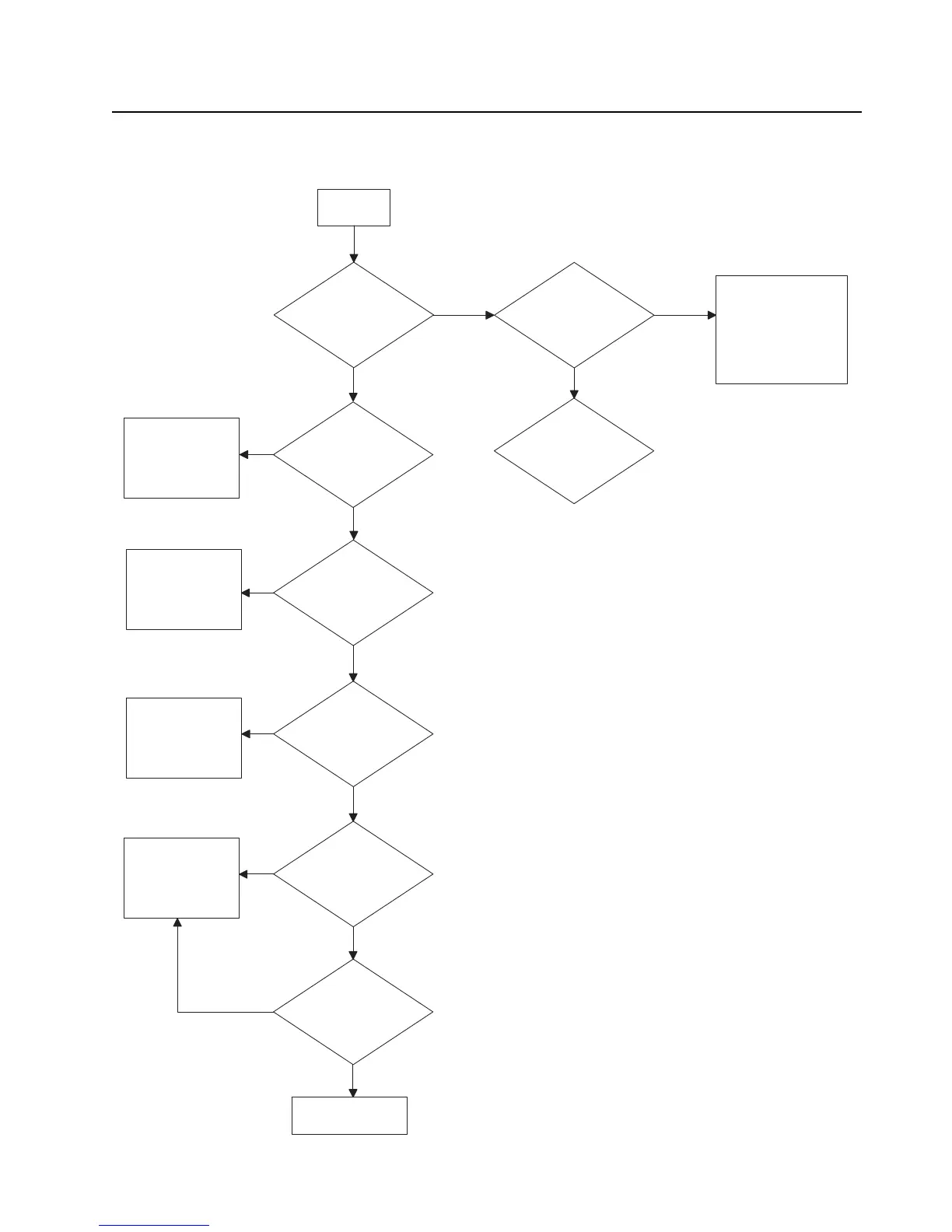

Troublesho
oting Charts:
Main Troubleshooting Flowchart
5-3
5.2
Main T
roubleshooting Flowchart
Start
Good
power up
self test
Any Error
Message?
See Table for
error codes
Table 4.5
No
No
Yes
Go to either Display
Failure(5.19,5.20)
or controller power
up failure flowchart
Chart 5.3
Yes
Does the
Radio
transmit?
No
Go to TX RF
troubleshooting
Flowchart
(Chart 5.45)
Is there TX
deviation?
Go to controller
TX Audio error
(Chart 5.11)
Receive Audio
present?
Go to RX RF/
controller audio
flowchart
(Chart 5.29/5.11)
No
No
RX SINAD
GOOD?
Buttons
Functional?
No
End
See Button Test
Flowchart
(Chart 5.10)
