8-34
Schematics, Boards Over
lays, and Parts Lists
: Transceiver (RF) Boards: VHF (8401232
0001 / PC000352A01)

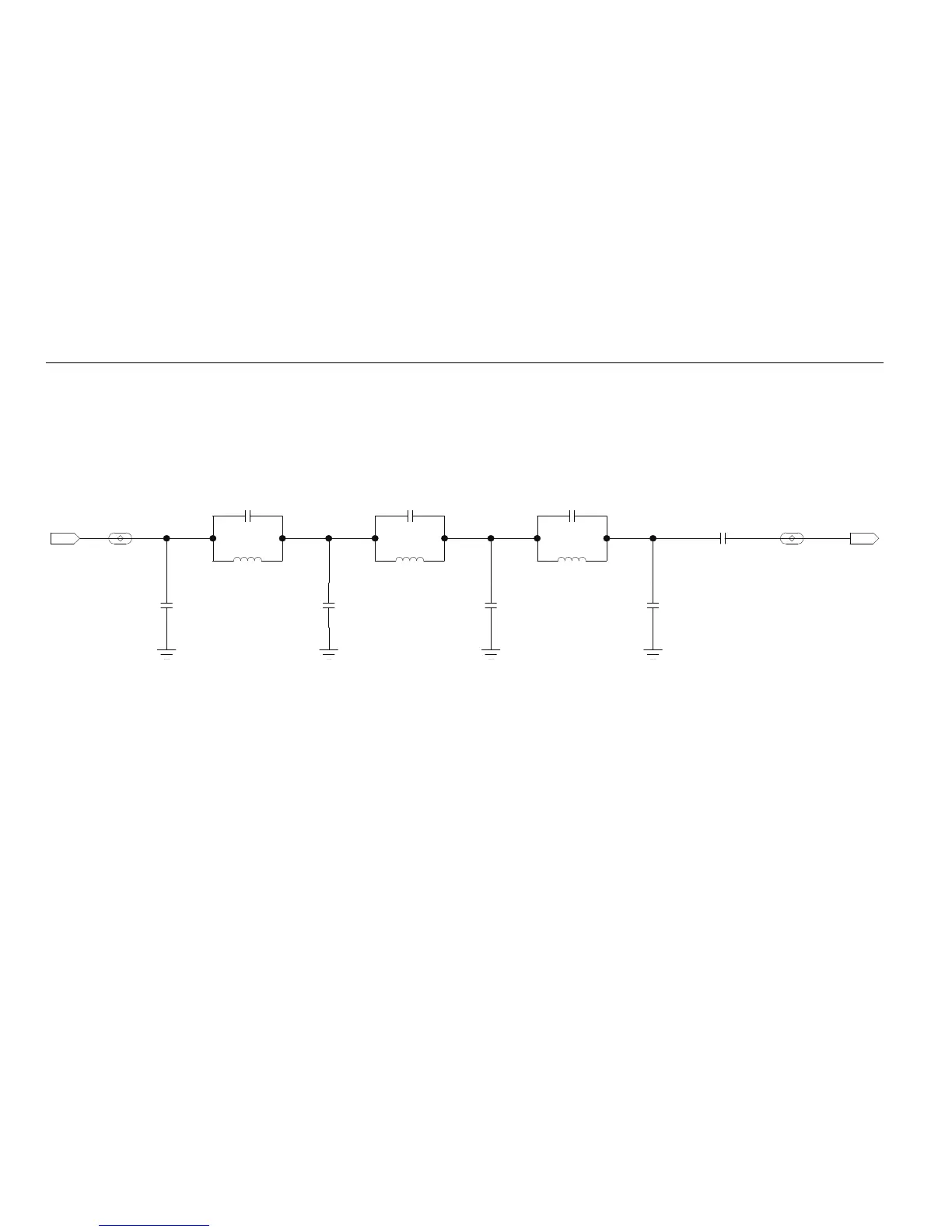

Figure 8-6. TX HF Circuit
5.6PF
IF
C1203
IF1201
HF_IN
1
IN
43NH
4.3PF
C1204
L1203
27PF
43NH
8.2PF
C1220
L1209
C1207
43NH
4.3PF
24PF
C1221
C1226
L1211
9.1PF
330PF
C1227
C1222
IF
IF1202
HF_OUT
1
OUT
289
291
