Motorola APX 3000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Reassembly 8-15
8.6 Radio Reassembly
This section contains instructions for reassembling the radio.
8.6.1 Reassemble the Battery Seal(40†††*)

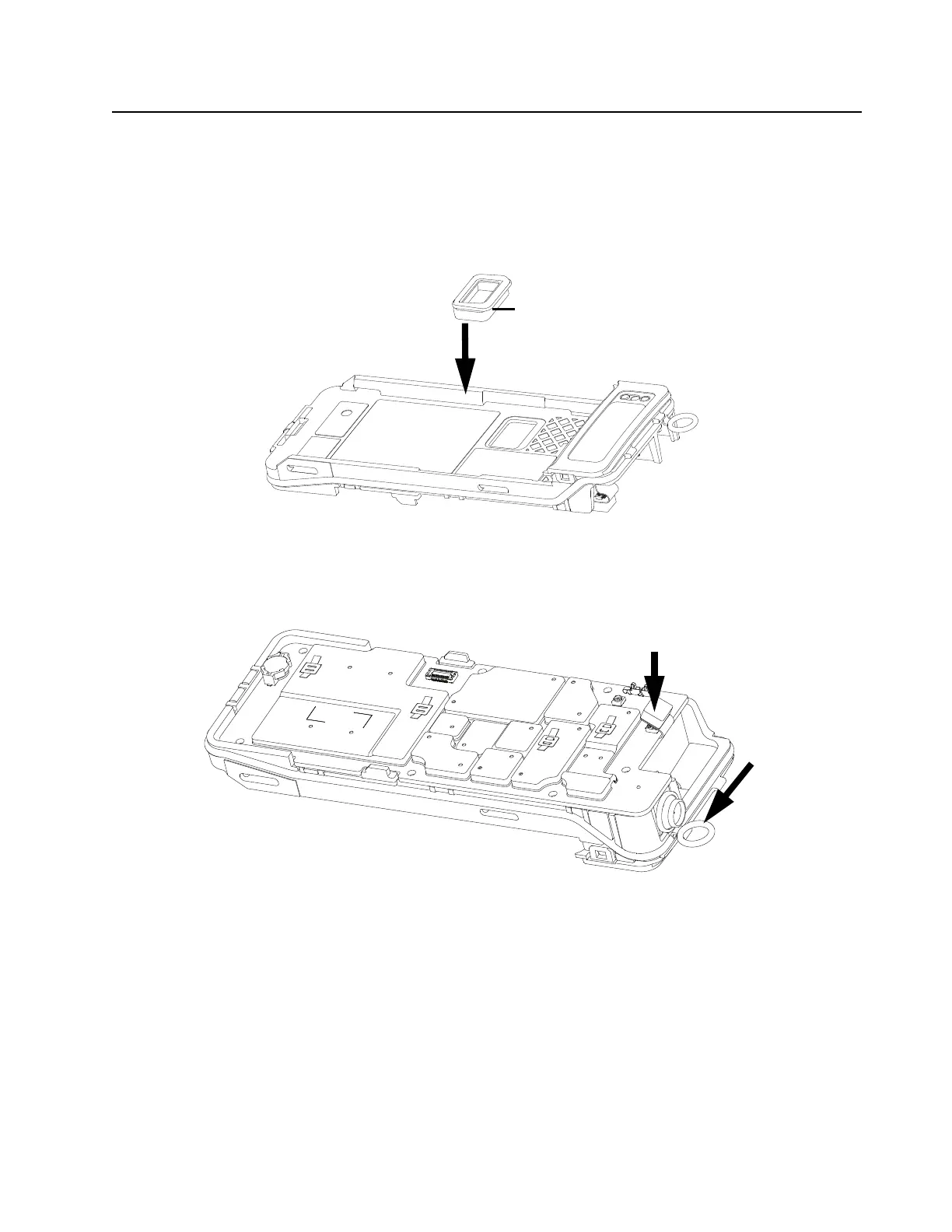

1. Assemble the battery seal (40†††*) as shown in Figure 8-16.
Figure 8-16. Assemble the Battery Seal
2. With the Main Board (29††) seated in the Chassis (33†††), gently assemble the Main O-Ring
(28†††*) and the connector to the Antenna Holder as shown in Figure 8-17.
Figure 8-17. Assemble the Main O-Ring at Antenna Holder
Battery Seal
Contact
NFC Flex Connector
Antenna Holder
