Disassembly/Reassemb
ly Procedures
: Radi
o Reassembly
8-21
3.
Adhere the Botto
m Label (46†††) on
the recess at the
bottom of the Front Housin
g as shown
in
Figure 8-28.

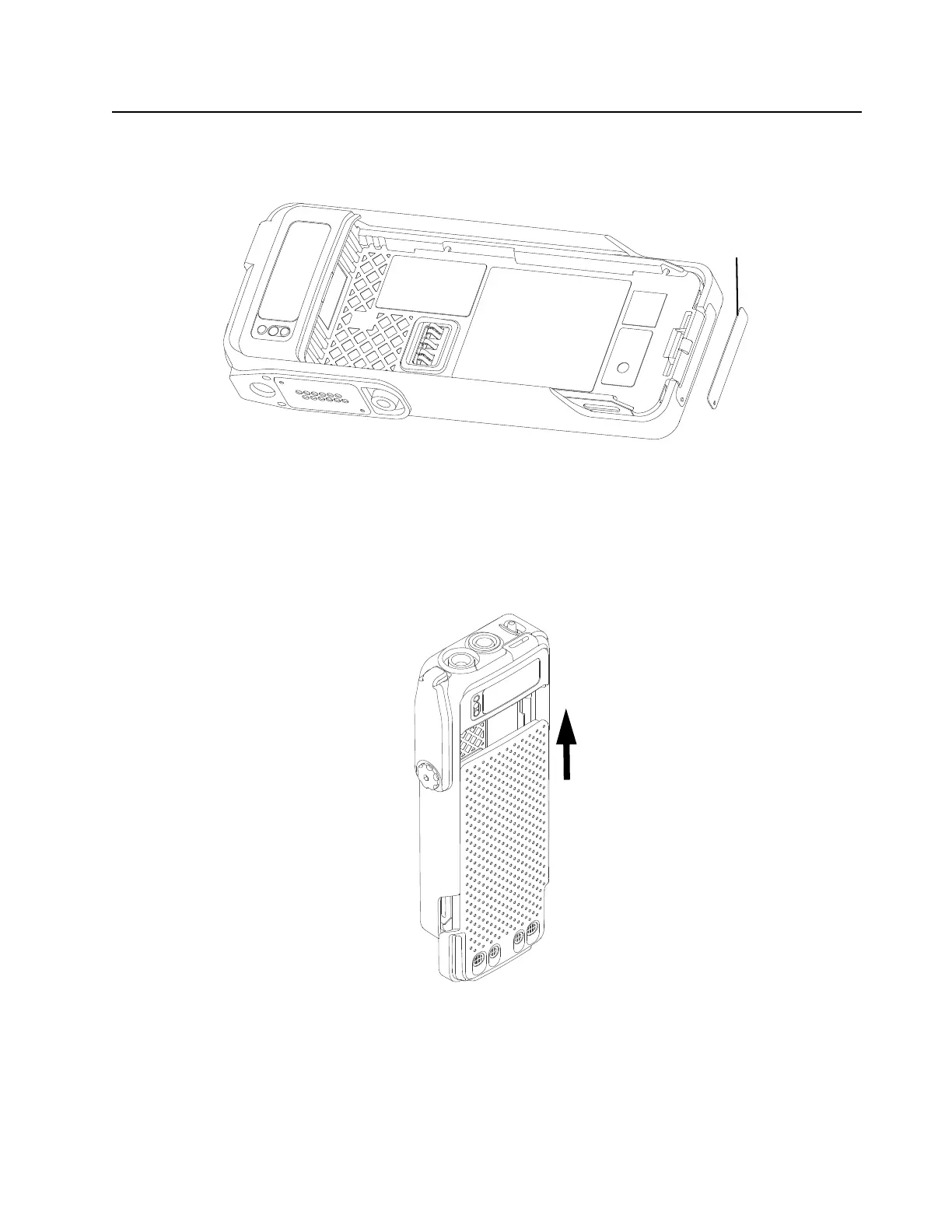

Figure 8-28. Assemble the Bottom Label
8.6.8
Reassemble the Battery
1.
With the radio turned of
f, slide up the battery into the radio’
s frame until the bottom latch clicks
into place as shown in
Figure 8-29
.
Figure 8-29. Atta
ching Battery – Slide into Position
Bottom label
106
108
