Motorola APX 3000 Basic Service Manual

8-16 Disassembly/Reassembly Procedures: Radio Reassembly
8.6.2 Reassemble the Main Board (29††)

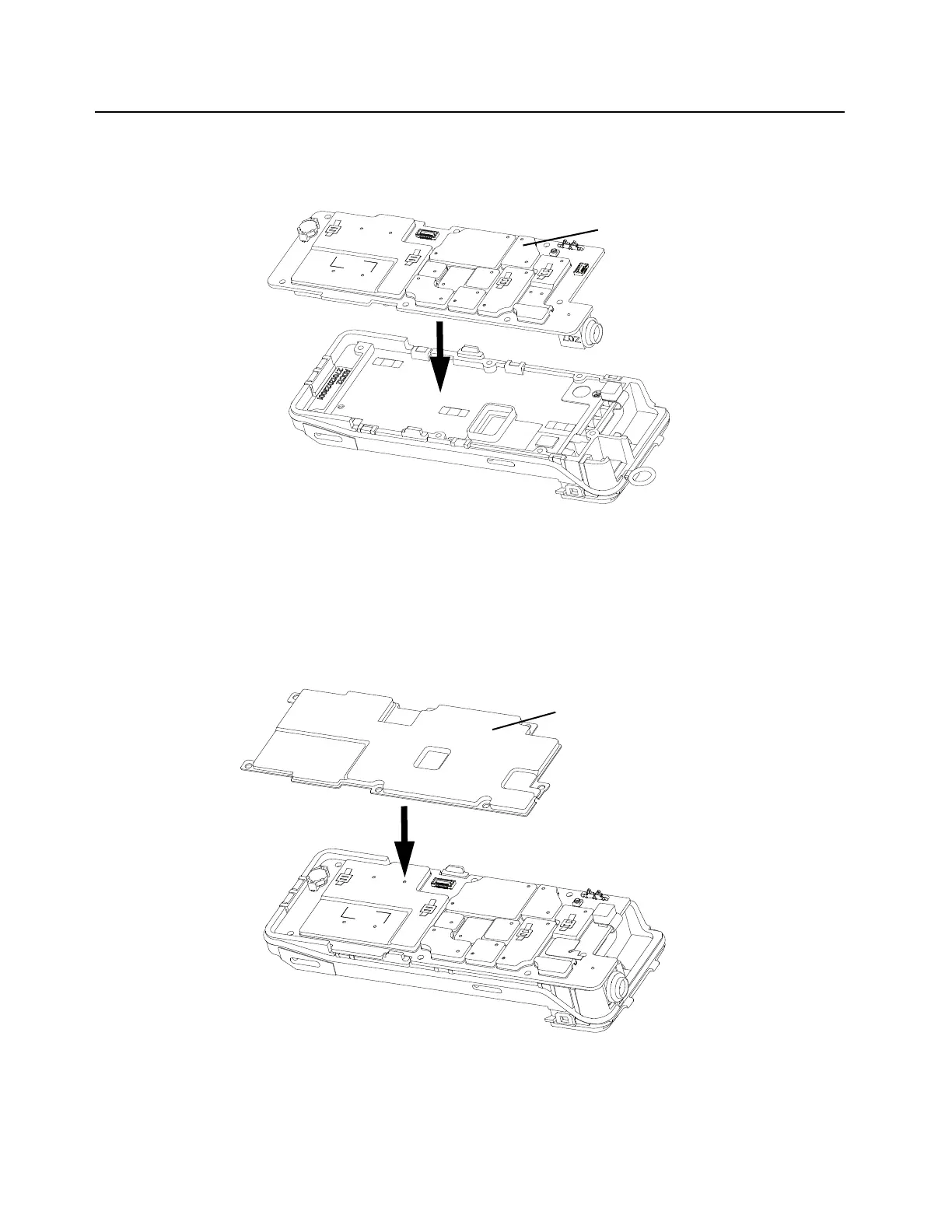

1. Place the Main Board into the Chassis (33+++) as shown in Figure 8-18.
.
Figure 8-18. Assemble the RF Board
NOTE: Ensure that the Battery Contact Seal (40†††*) does not pinch and the tabs of the Main O-Ring
are held in place when assembling the Main Board into the Chassis.
8.6.3 Reassemble the Secondary Shield Assembly (26†††*)
1. With Main Board (29††) assembled, place the Secondary Shield Assembly (26†††*) onto the
Main Board as shown in Figure 8-19.
Figure 8-19. Assemble the Secondary Shield Assembly
Main Board
Secondary Shield
