Motorola APX 3000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Disassembly 8-7
8.4.4 Removal of the Back Kit Assembly (B)
This section contains instructions for disassembling the radio.
8.4.4.1 Removal of the Chassis (33†††)
1. With the Battery removed, disengage the Chassis (33†††) using the Chassis Opener as
shown in Figure 8-6.

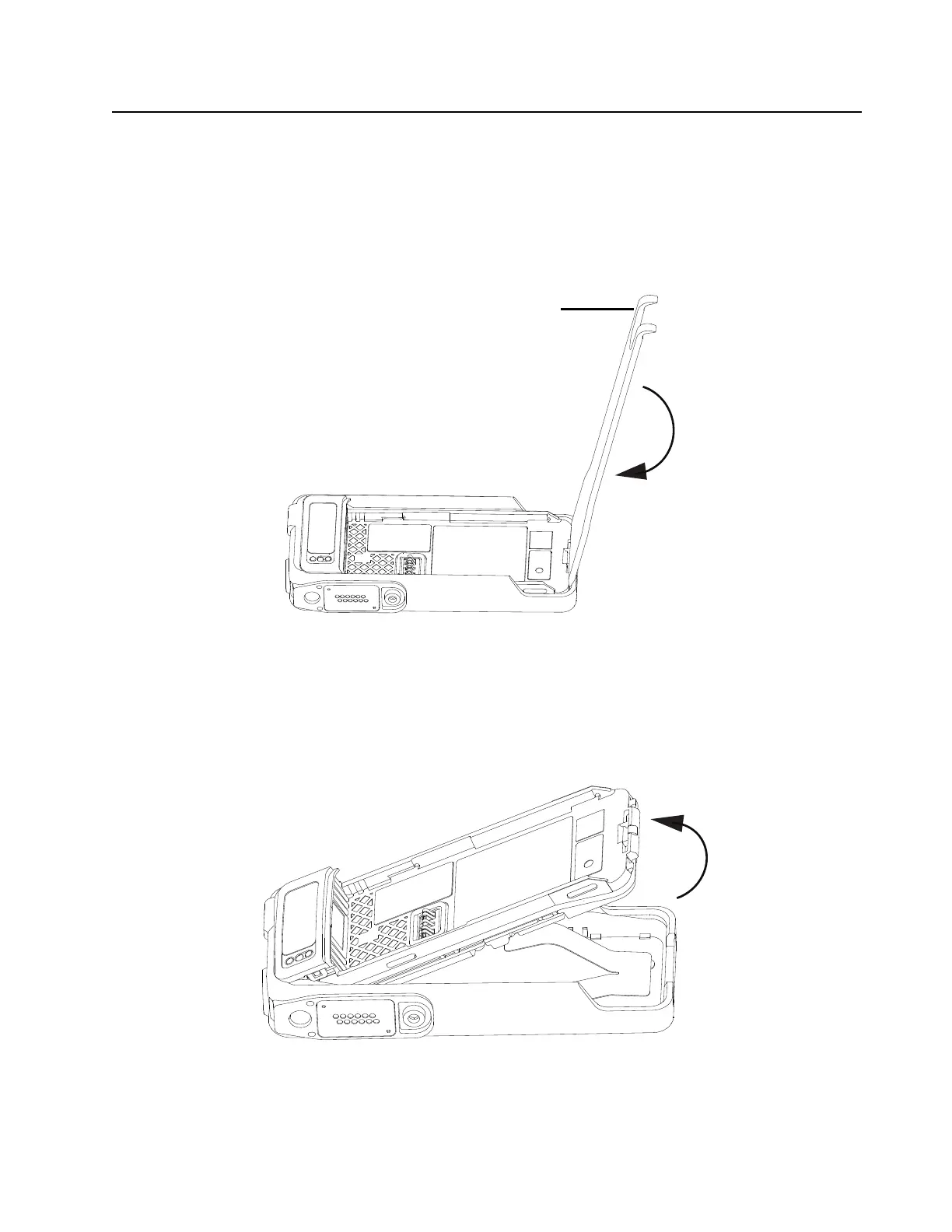

Figure 8-6. Disengage the Chassis
NOTE: The Seal, Vacuum Port (45†††*) and the Label Gore Port (43†††) must be removed
each time the Chassis is removed (for leak test).
2. After the Chassis (33†††) is disengaged, remove the connector at the bottom of the back kit
and lay both sub-assemblies on the anti-static mat (part of anti-static ground kit) as shown in
Figure 8-7.
Figure 8-7. Remove the Chassis Assembly
Chassis opener
