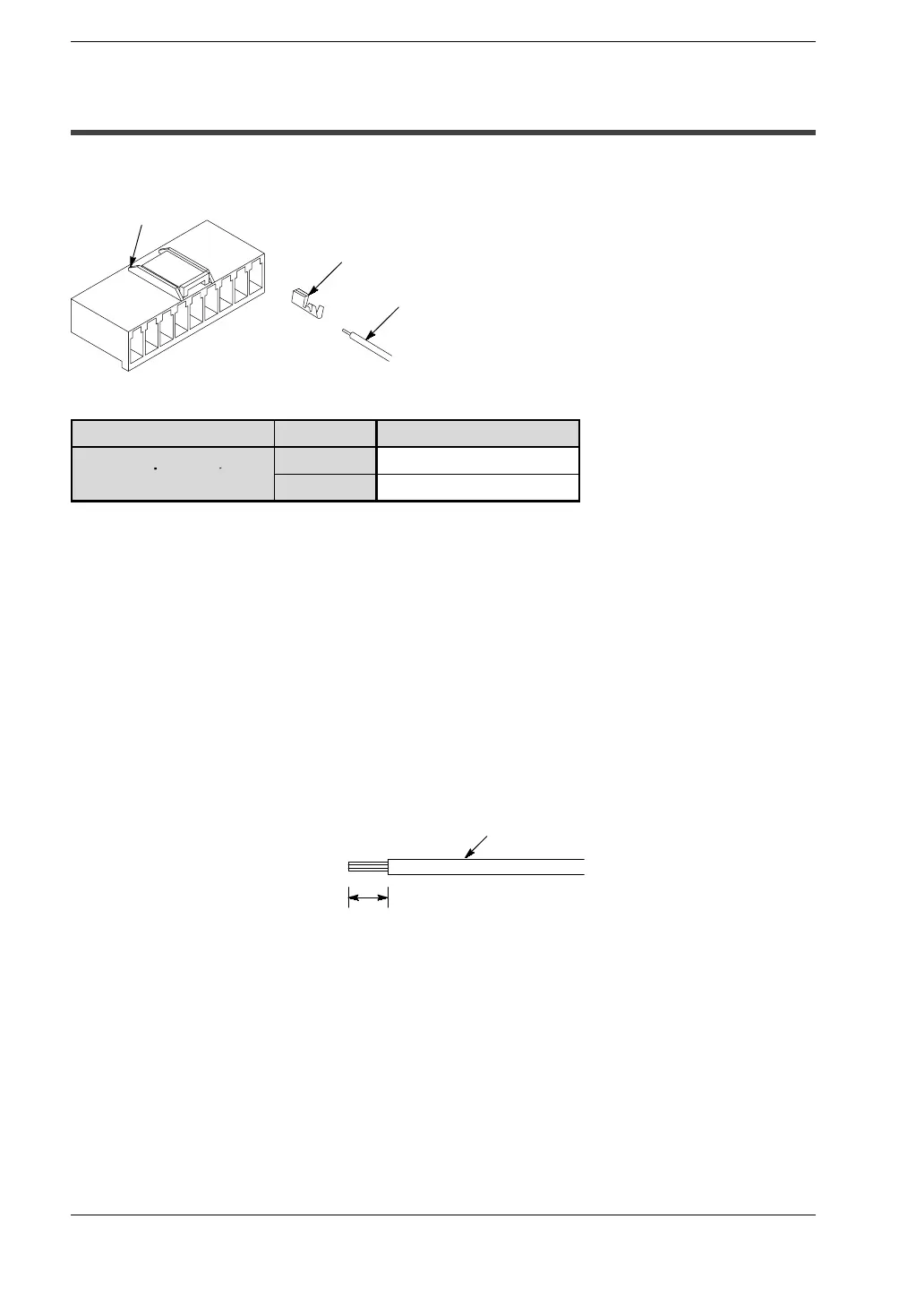

7.7 Wiring the MOLEX Connector Type
7.7 Wiring the MOLEX Connector Type
The housings and contacts listed below come supplied with the FP0. Use the wires
given below. Also, use the required special tool for connecting the wires.
Housing
Contact
Suitable wire
Supplied connector
Manufacturer Item Product number
Molex Japan Co., Ltd. Housing
51067-0900 (2 pieces)
p
,
Contact
50217-8100 (20 pieces)
Suitable wires (twisted wire)
- Size: AWG #24 to 18
- Conductor cross-sectional area: 0.2 to 0.75 mm
2
- Insulation outside diameter: dia. 1.4 to dia. 3.0
Special crimping tool
- Manufacturer: Molex Japan Co., Ltd
- Product number: 57189-5000
Procedure:
1. Remove a portion of the wire’s insulation.
3 to 3.5 mm/0.118 to 0.138 in.
Wire
.
