3.4 Pin Layouts
3.4.12 E16YP

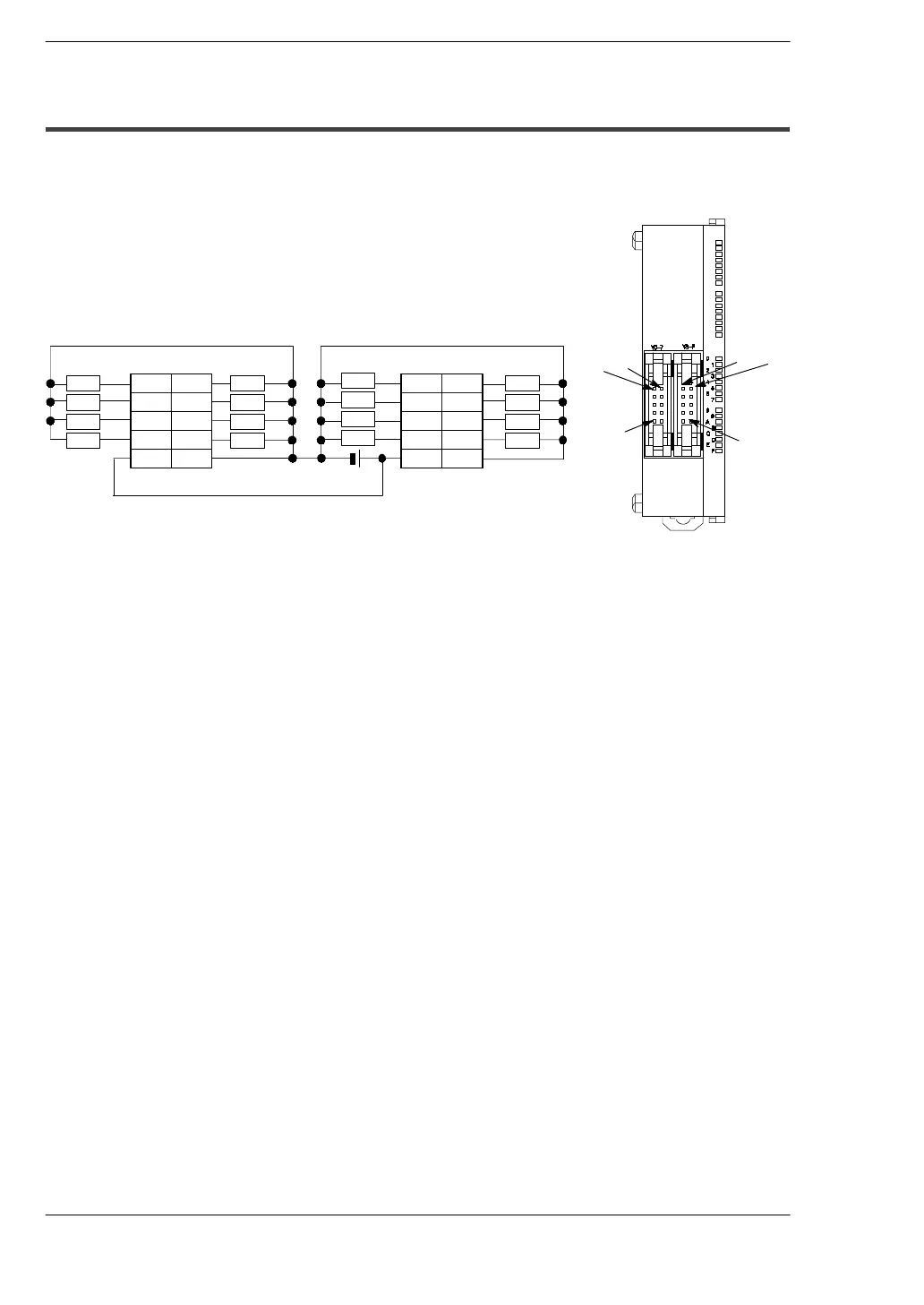

E16YP
Y20 Y21
Y28 Y29
(+)
(-)
(-)
Y25
Y27
Y21
Y23
(+)
Y24
Y26
Y20
Y22
(-)
Y2D
Y2F
Y29
Y2B
(+)
Y2C
Y2E
Y28
Y2A
AA
Output
Output
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
.
Notes
D
The two (+) terminals of the output terminals are connected
internally, however they should be externally connected as
well.
D
The two (-) terminals of the output terminals are connected
internally, however they should be externally connected as
well.
D
The output number given above is the output number when
the expansion output unit is installed as the first expansion
unit. The output numbers for the expansion output units will
differ depending on the location where they are installed
(
*
section 5.3).
