NETGEAR GS748T User Manual

137
GS748T Smart Switch
Configuring Router Discovery
The Router Discovery protocol is used by hosts to identify operational routers on the subnet.
Router Discovery messages are of two types: Router Advertisements and Router
Solicitations. The protocol mandates that every router periodically advertise the IP Addresses
it is associated with. Hosts listen for these advertisements and discover the IP Addresses of
neighboring routers.

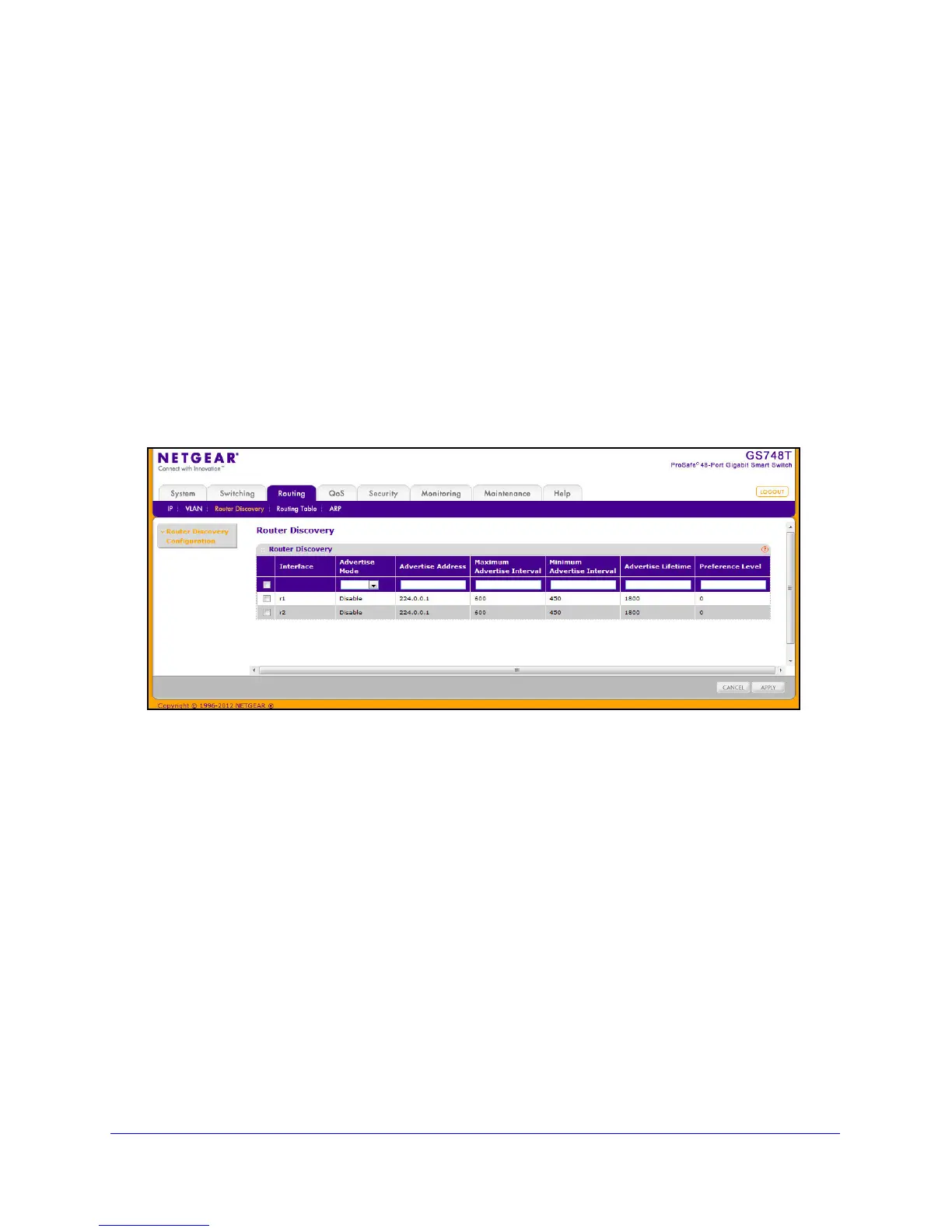

Router Discovery Configuration
Use the Router Discovery Configuration page to enter or change Router Discovery
parameters.
To display the page click Rou
ting, and then click the Router Discovery link.
To configure the router discovery settings:
1. Select
the router interface for which data is to be configured. To perform the same
configuration on all interfaces, select the check box in the heading row. To configure a
single interface, select the check box associated with the interface. The interface
number appears in the Interface field in the table heading row.
2. From the Advertise Mode
field, select Enable or Disable from the drop-down menu. If you
select Enable, Router Advertisements are transmitted from the selected interface.
3. In the Ad
vertise Address field, enter the IP Address to be used to advertise the router.
4. In the Maximu
m Advertise Interval field, enter the maximum time (in seconds) allowed
between router advertisements sent from the interface. The allowed range for this field is 4
to 1800.
5. In the Minim
um Advertise Interval field, enter the minimum time (in seconds) allowed
between router advertisements sent from the interface. The allowed range for this field is 3
to 1800.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
