Nikon D300 Repair Manual

VBA20001-R.3720.A
- Ａ  ・ -
logo�Q0310�forGraphic
070509�Gdesign�ito
・

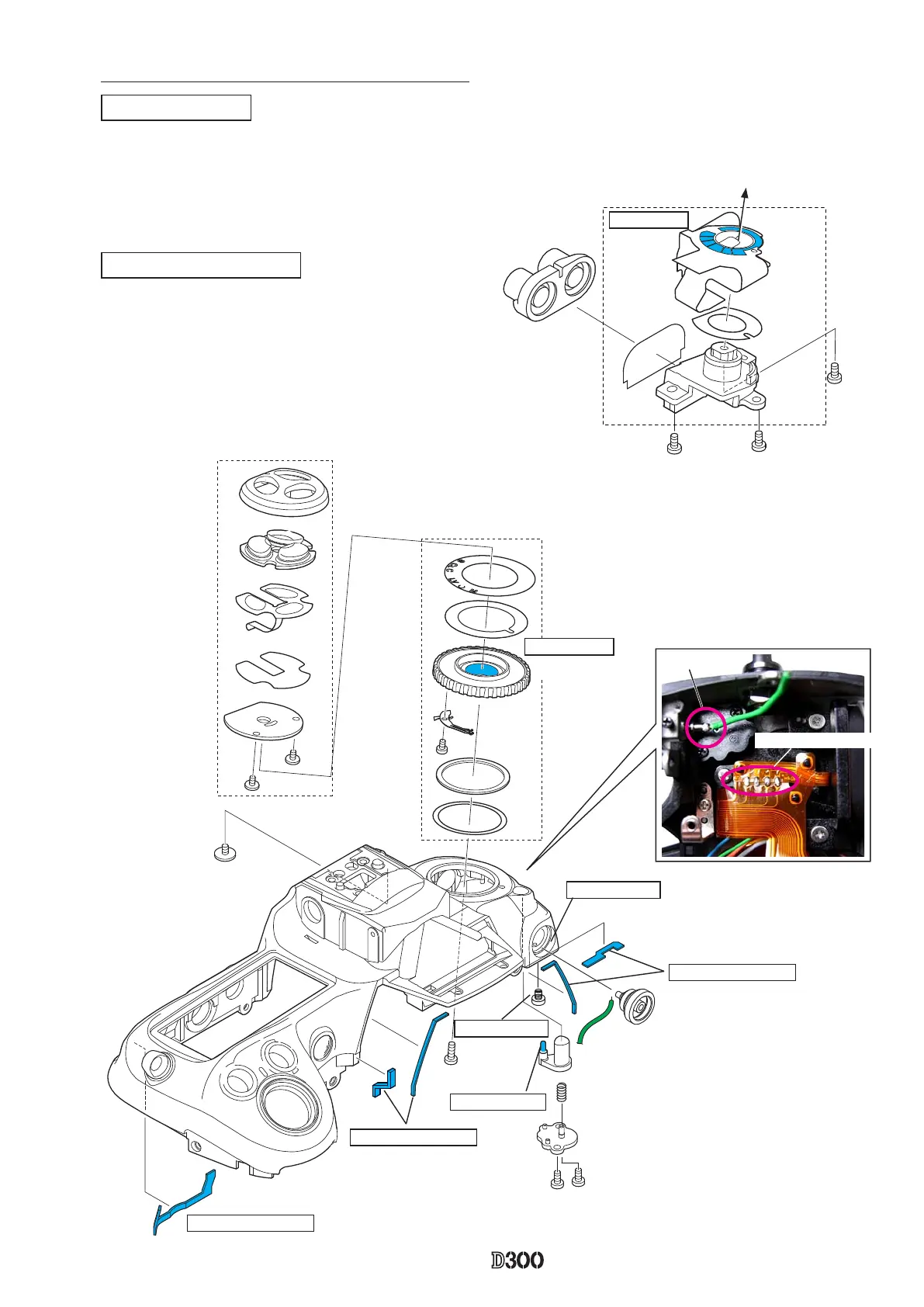

Attach the playback/DEL button (#513) to the top cover.
・
Apply the contact grease to the pattern area of [#1025].
・
Mount the mode dial FPC unit on the top cover, and
tighten two screws (#1609) and one screw (#1571).
Mode dial / Trefoil button
・
As below, apply the grease to the mode dial unit, and
mount it on the top cover.
・
Mount the trefoil rubber button unit on the mode dial
unit (while passing through the hole of #1026), and
tighten the screw (#1574).
#1025
#514
#515
#505
#1609
#1571
Mode dial FPC unit
#513
#1609
WB
QUAL
ISO
#502
#501
#1026
#516
#503
#518
#519
#504
#507
#1533
#512
#511
#1601
#966
#968
#967
#967
#970
#508
#509
#510
#1544×2
Grease: G-92KA
※
Apply to the
inside of the hole.
#1574
To Top cover
Solder
Soldering bridge
#50
#1107
Grease:PL-22S
#1640×2
Mode dial, Trefoil rubber button and other small parts
Mode dial FPC unit
Mode dial unit
Trefoil rubber button unit
Grease: G-92KA
#1532
Adhesive: LoctiteLoctite
※
Apply to the threaded portion for attaching [#50]
.
※
Apply to
the threaded
portion.
Adhesive: LoctiteLoctite
Oil barrier: OS-30MEL
Oil barrier: OS-30MEL
Oil barrier: OS-30MEL
INC

Nikon D300 Specifications

General

Megapixel	12.3 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848, 3216 x 2136, 2144 x 1424
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	920000 pixels
Magnification	0.94 x
Product color	Black
Eye relief	19.5 mm
Image editing	Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Fine, Flash, Fluorescent, Incandescent, Manual, Shade, Sunny
Playback modes	Zoom
Camera playback	Highlights, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Battery type	EN-EL3e
Battery life (CIPA standard)	1000 shots
Number of batteries supported	1
Flash modes	Auto, Red-eye reduction, Slow synchronization
Flash range (wide)	- m
Compatible memory cards	CF, CF Type II, MicroDrive
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
USB version	2.0
Optical zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
HD type	Not supported
Maximum video resolution	- pixels
Analog signal format system	NTSC, PAL

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	825 g
