Nikon D300 Repair Manual

VBA20001-R.3720.A
- Ａ  ・ -
logo�Q0310�forGraphic
070509�Gdesign�ito
Grease: G-92KA
※
Dipping
Grease: G-92KA
#732
#733
#734
#742
#743
#784
#1648
#914
#1028
#B782
#1557×2
#B745
#1652
#1608×2
Grease: OS-30MEL
※
Apply to the overall
around the hole.
※
Apply to the 5 holes
of the back side.
Grease: G-92KA
※
Apply to the
claw on the back.
Drysurf:MZ-800S
・

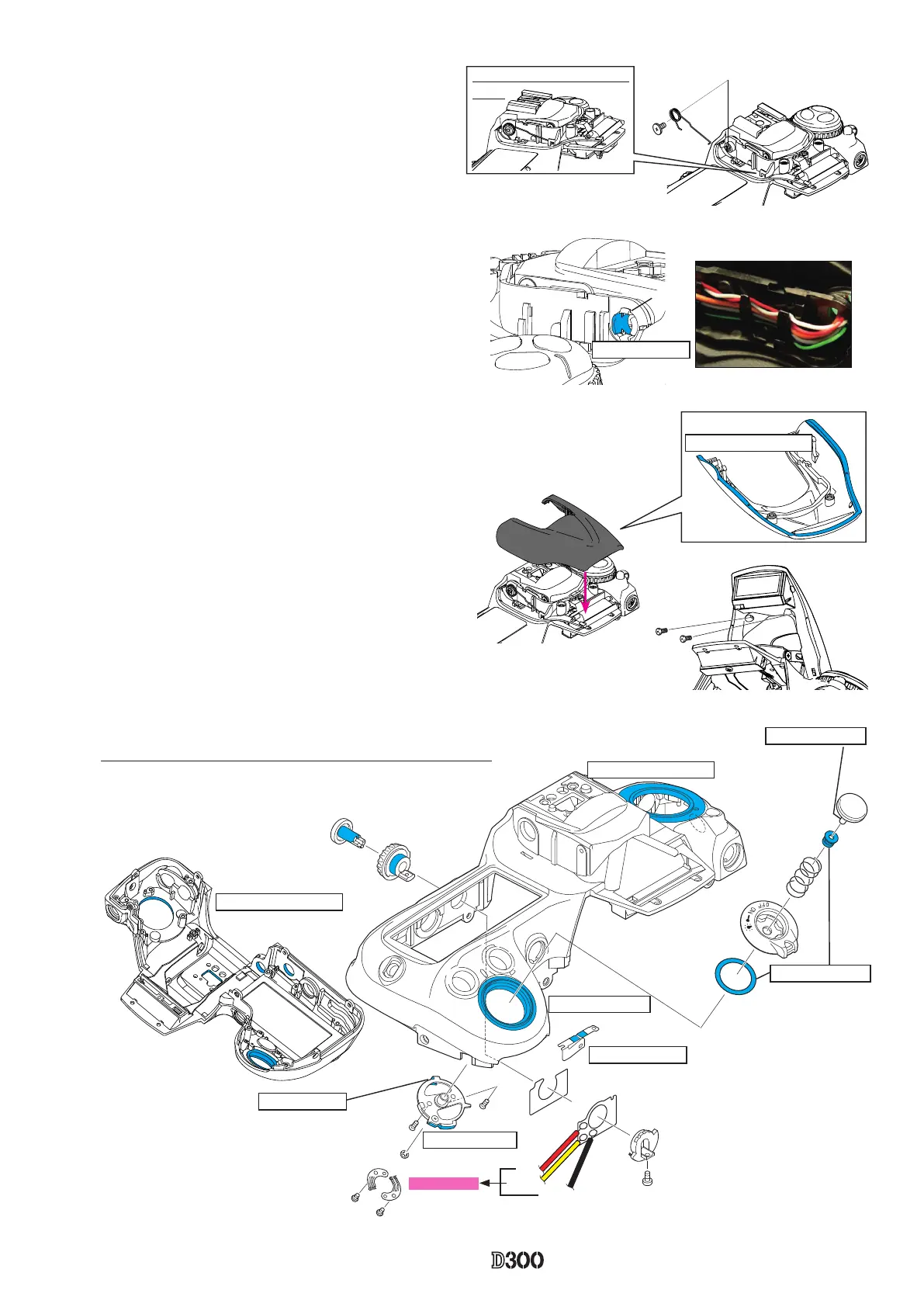

Apply the grease to the contacting area between
[#308] and SB wire.
・
Arrange the wires of the SB lower case unit (#B302)
on the top cover. (Thick wire comes to the inside.)
・
Mount the SB upper case (#301) on [#B302].
※

・
Operate [#309] to unlock. (ref. Previous page)
・

#780
#781
・
Put the SB-up spring (#305) on [#B302], and

・
Attach [#305] to the hooking part of [#B302].
Metering mode dial, Release button and other small parts
※
Apply to the overall
around the hole.
#748×2
Red
Grease: GN-20SB: GN-20SB
#308
#305
#1601
#1623×2
#301
Position for hooking the spring
(#305)
Yellow
Black
Outside LCD
Grease: G-92KA
Oil barrier: OS-30MEL
Oil barrier: OS-30MEL
Oil barrier: OS-30MEL
INC

Nikon D300 Specifications

General

Megapixel	12.3 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848, 3216 x 2136, 2144 x 1424
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	920000 pixels
Magnification	0.94 x
Product color	Black
Eye relief	19.5 mm
Image editing	Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Fine, Flash, Fluorescent, Incandescent, Manual, Shade, Sunny
Playback modes	Zoom
Camera playback	Highlights, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Battery type	EN-EL3e
Battery life (CIPA standard)	1000 shots
Number of batteries supported	1
Flash modes	Auto, Red-eye reduction, Slow synchronization
Flash range (wide)	- m
Compatible memory cards	CF, CF Type II, MicroDrive
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
USB version	2.0
Optical zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
HD type	Not supported
Maximum video resolution	- pixels
Analog signal format system	NTSC, PAL

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	825 g
