Nikon D300 Repair Manual

VBA20001-R.3720.A
- Ａ  ・ -
logo�Q0310�forGraphic
070509�Gdesign�ito
#1623×2
#1601
#305
#303
#308
SB lower case unit (#B302)
#322
#796
#308
#306
#188
#310
#312
#309
#917A
～
C
#1565
#322
#796
#307
#770×2
#765×2
#766×2
Grease: AX-115
Grease: OS-30MEL
※
Dipping
※
Apply to the slid-
ing areas (front/rear/
inside)
※
Dipping
※
Dipping
Grease: AX-115
※
Apply
to the top
surfaces of the
sheet, after
attaching the
tape.
※
Apply to the surfaces and and
inside of the holes.
Direction for positioning
#306
・
Attach two of [#322] to the top cover, and
tighten two screws (#796).
・
Attach [#307] to the top cover.
・
Mount the SB lower case unit (#B302) on the
top cover.
※※

in the grooved section of [#322].
・
Attach [#308] to the top cover.
・
Attach [#306] to the top cover.
※
Attach by aligning [#306] with the small
holes of the SB lower case unit (#B302).

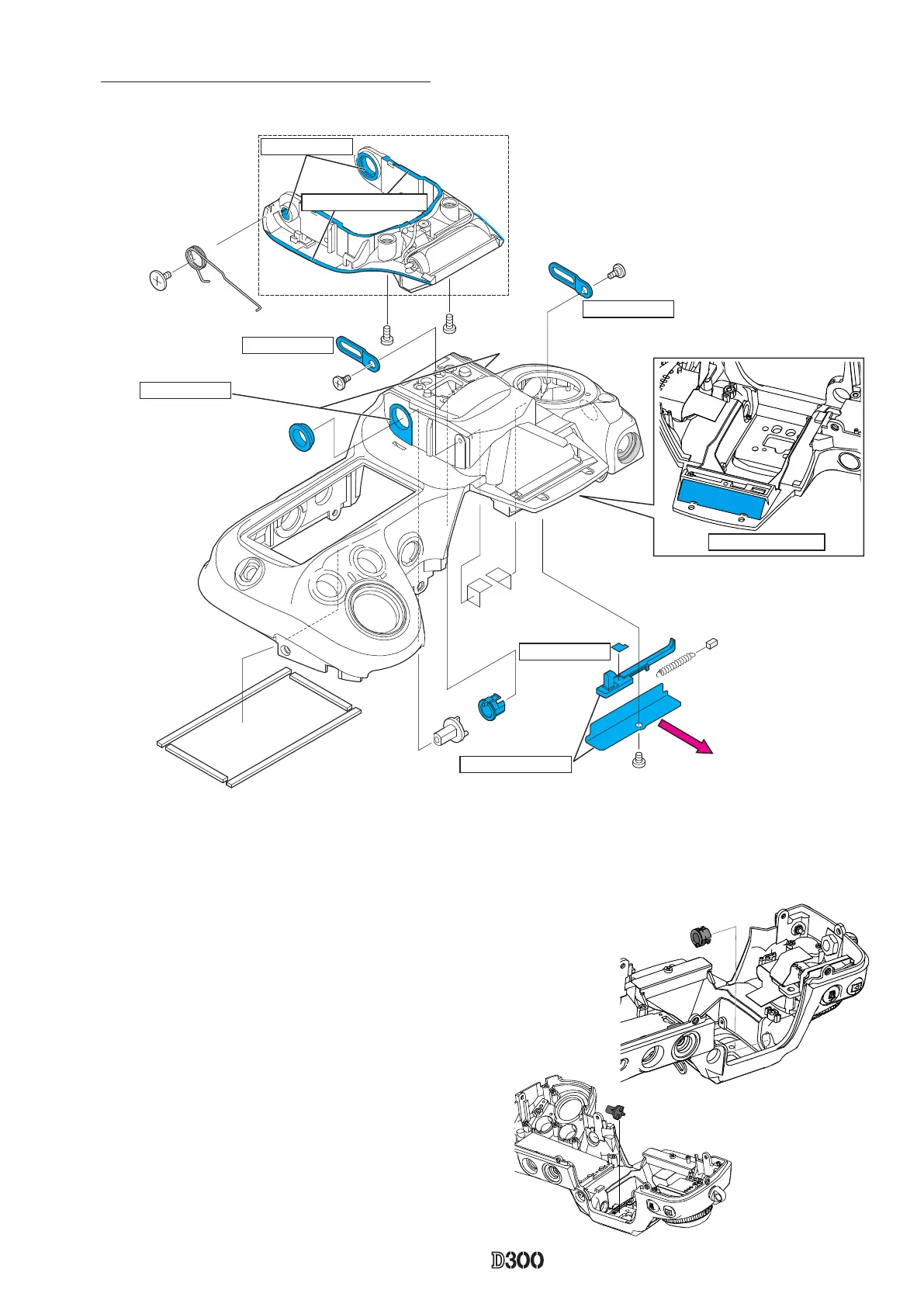

SB case, Syncrho-terminal and other small parts
< Top cover >
< Top cover / Back >
Grease: OS-30MEL
Grease: AX-115
Grease: AX-115
Grease: AX-115
Oil barrier: OS-30MEL
INC

Nikon D300 Specifications

General

Megapixel	12.3 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Sensor format	DX
Image stabilizer	No
Total megapixels	13.1 MP
Image sensor size	- \
Image formats supported	JPG, RAW, TIF
Maximum image resolution	4288 x 2848 pixels
Image sensor size (W x H)	23.6 x 15.8 mm
Still image resolution(s)	4288 x 2848, 3216 x 2136, 2144 x 1424
Focus adjustment	Auto/Manual
Auto Focus (AF) lock	Yes
Auto Focus (AF) points	51
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Display diagonal	3 \
Vari-angle LCD display	-
Display resolution (numeric)	920000 pixels
Magnification	0.94 x
Product color	Black
Eye relief	19.5 mm
Image editing	Trimming
Photo effects	Black&White, Neutral, Vivid
White balance	Auto, Fine, Flash, Fluorescent, Incandescent, Manual, Shade, Sunny
Playback modes	Zoom
Camera playback	Highlights, Slide show, Thumbnails
Self-timer delay	2, 5, 10, 20 s
Camera file system	DCF 2.0, DPOF, Exif 2.21
Battery type	EN-EL3e
Battery life (CIPA standard)	1000 shots
Number of batteries supported	1
Flash modes	Auto, Red-eye reduction, Slow synchronization
Flash range (wide)	- m
Compatible memory cards	CF, CF Type II, MicroDrive
Light metering	Centre-weighted, Matrix, Spot
ISO sensitivity	100, 200, 3200, 6400
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure correction	±5EV (1/2; 1/3 EV step)
USB version	2.0
Optical zoom	- x
Mounting type	Bayonet
Lens mount interface	Nikon F
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
HD type	Not supported
Maximum video resolution	- pixels
Analog signal format system	NTSC, PAL

Weight and Dimensions

Depth	74 mm
Width	147 mm
Height	114 mm
Weight	825 g
