2.5
Position Exchange of the Fine Focus Knob
mong left and right fine focus knobs, one is flat and the other is
convex. Both fine focus knobs are attached to the coarse focus
knobs using magnet, so you can detach the right and left knobs
from the coarse focus knobs and swap them.
Position them to best suit your usage.
The flat fine focus knob mounted as a standard component has
2 mm projection. A knob having 7 mm projection is available as
an option.
POWER
0.1
0.2
0.3
0.40.6
0.7
0.8
0.9

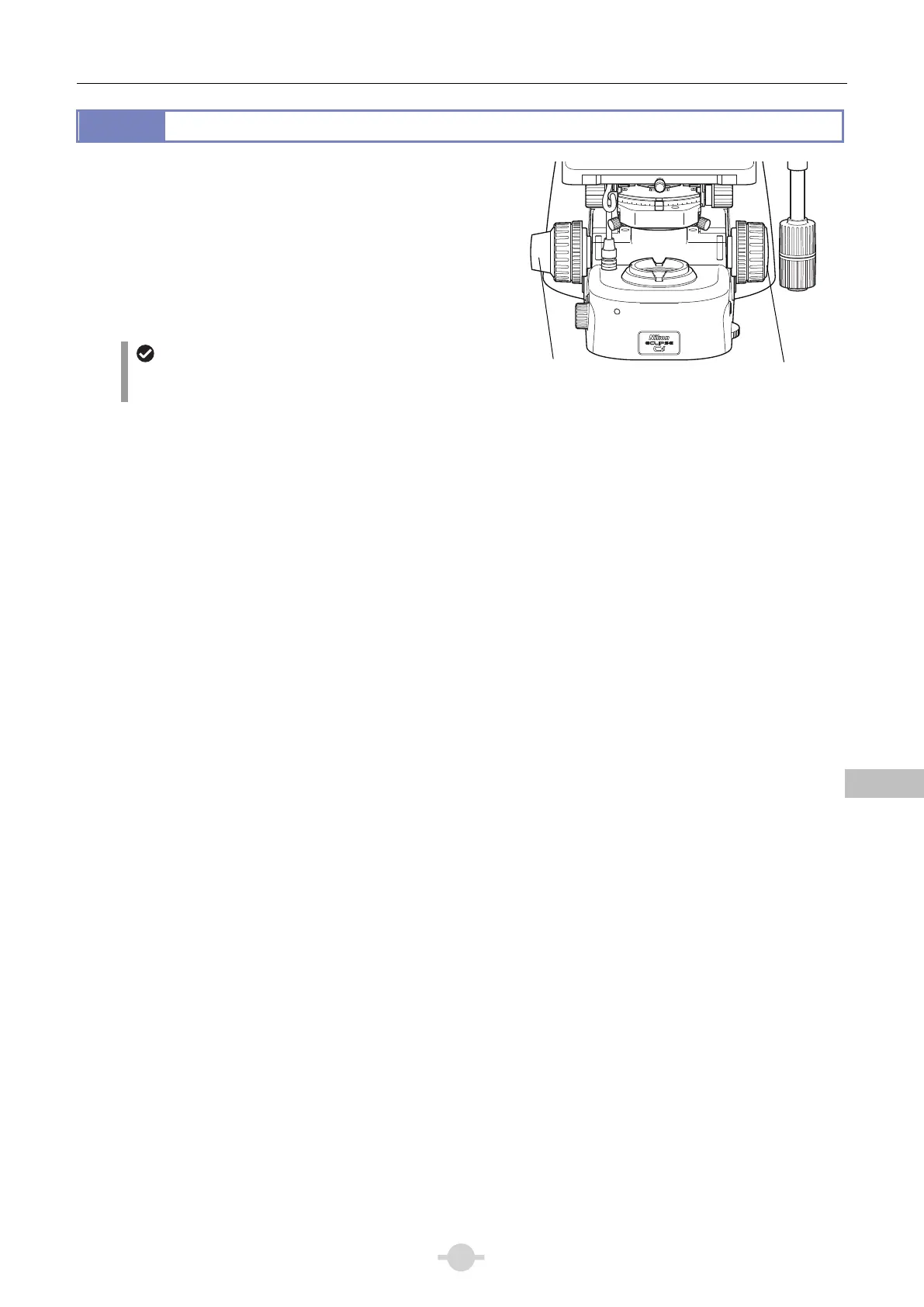

Position exchange of the fine focus knob
Removing a flat focus knob
A flat fine focus knob can be easily removed by inserting a
provided tool into the notch in the knob.
Flat fine focus knob
Convex fine focus knob
