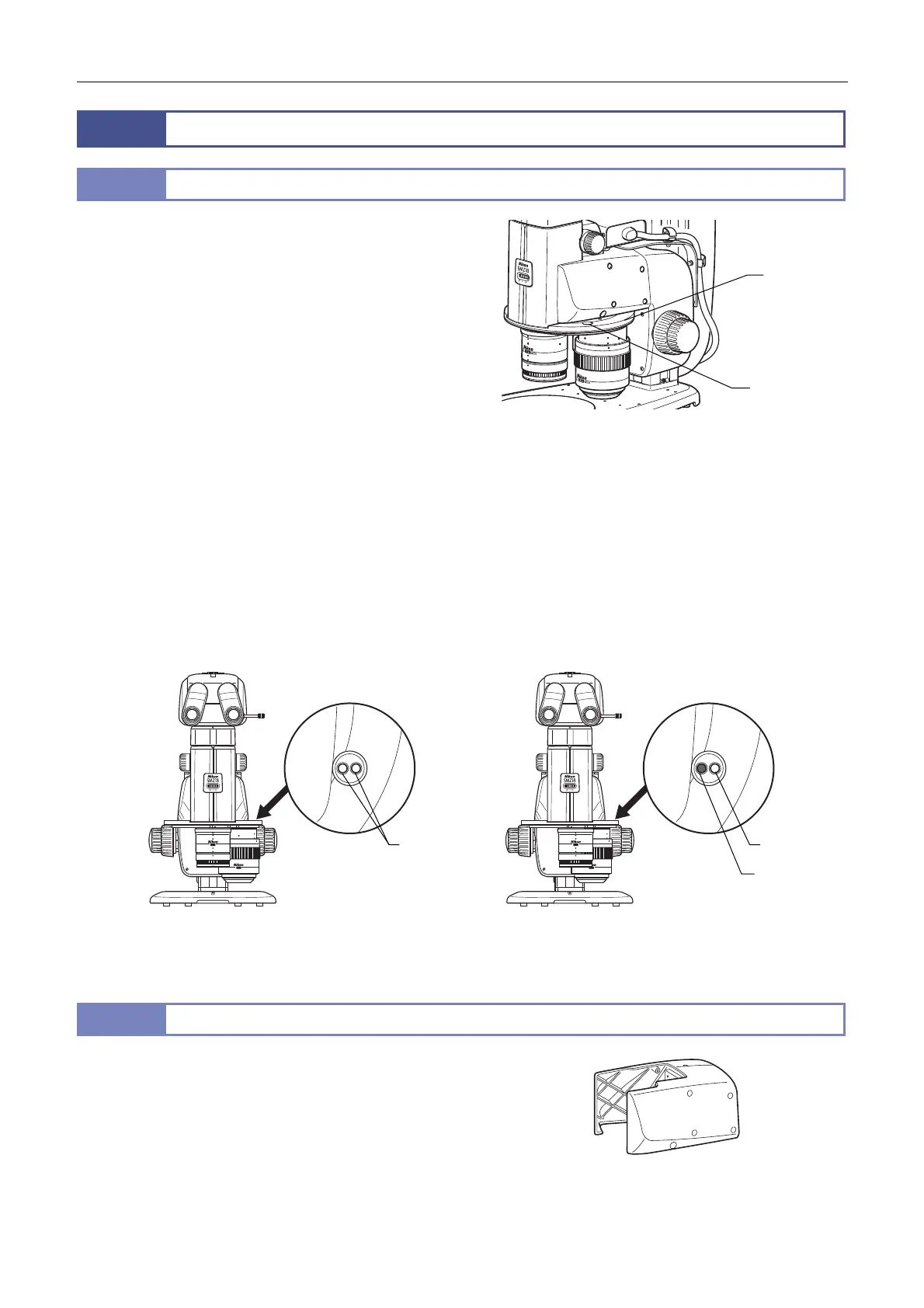

Chapter 8 Functions and Operations of the Devices
98
3
Nosepiece, Focus Mount Adapter
3.1
P2-RNI2 Intelligent Nosepiece
The P2-RNI2 Intelligent Nosepiece is a nosepiece that connects
the zooming body and the focus unit. Two objectives can be
attached. The attached objectives can be switched by turning the
nosepiece.
Stereoscopic view and vertical view
An intelligent nosepiece has two click positions for each
objective.
The click position switches between stereoscopic view and
vertical view. Microscopy with vertical view is possible when
needed, for example when taking a picture.
The click position of the objective can be checked by the
position of the objective viewed from the front or the color of
the hole on the objective status display area on the intelligent
nosepiece.
For systems where a control box has been connected, the
objective attachment position addresses and vertical-view state
are sent to the control box via a motorized focus unit or relay box,
and then transmitted to the DS-L4 camera control unit and
personal computer.
P2-RNI2 Intelligent Nosepiece
1 x
SHR Plan apo WD:60
2 x
SHR Plan apo WD:20
2 x
SHR Plan apo WD:20
1 x
SHR Plan apo WD:60
Stereoscopic view Vertical view
Objective position state (stereoscopic view and vertical view)
3.2
P2-FM Focus Mount Adapter
The P2-FM Focus Mount Adapter is an adapter that connects the
zooming body and the focus unit. When not using an intelligent
nosepiece, connect the zooming body to the focus unit via the
P2-FM Focus Mount Adapter.
P2-FM Focus Mount Adapter
Objective state
indication
Objective state
indication
Objective state
indication
Nosepiece
White White
Black
To Next Page
