Nikon SMZ25 User Manual

Chapter 8 Functions and Operations of the Devices
126
10.3
AZ-PCR Photo Release
The AZ-PCR Photo Release is a foot switch for capturing images
using the DS camera connected to the microscope.
The photo release is connected to the PHOTO connector of the
A
Z-FSW Foot Switch.
When operating the microscope with a DS camera using the
DS-L4 camera control unit, connect the camera control unit to the
P2-CTLA Control Box (USB connection). Next, connect the photo
release to the AZ-FSW Foot Switch connected to the control box.
The DS camera can then capture images simply by stepping on
the pedal of the photo release.

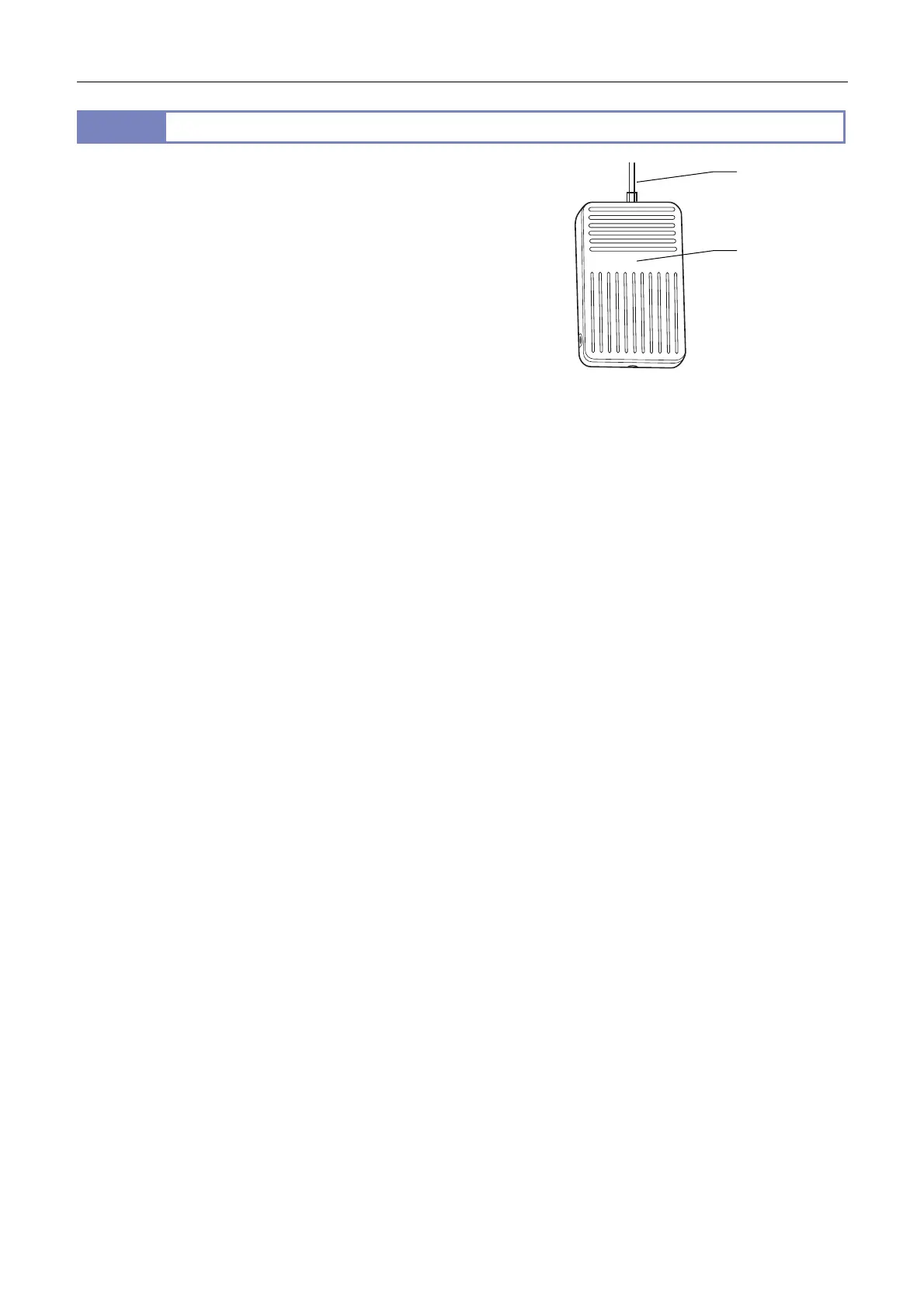

AZ-PCR Photo Release
Connection
cable
Foot switch
