Chapter 8 Functions and Operations of the Devices
103
5.5
P-DSL32 LED Diascopic Illumination Stand
See “8.3 P-DSL32 LED Diascopic Illumination Stand” in this chapter.
5.6
P-DSF32 Fiber Diascopic Illumination Stand
See “8.4 P-DSF32 Fiber Diascopic Illumination Stand” in this chapter.
5.7
P-SXY64 XY Stage

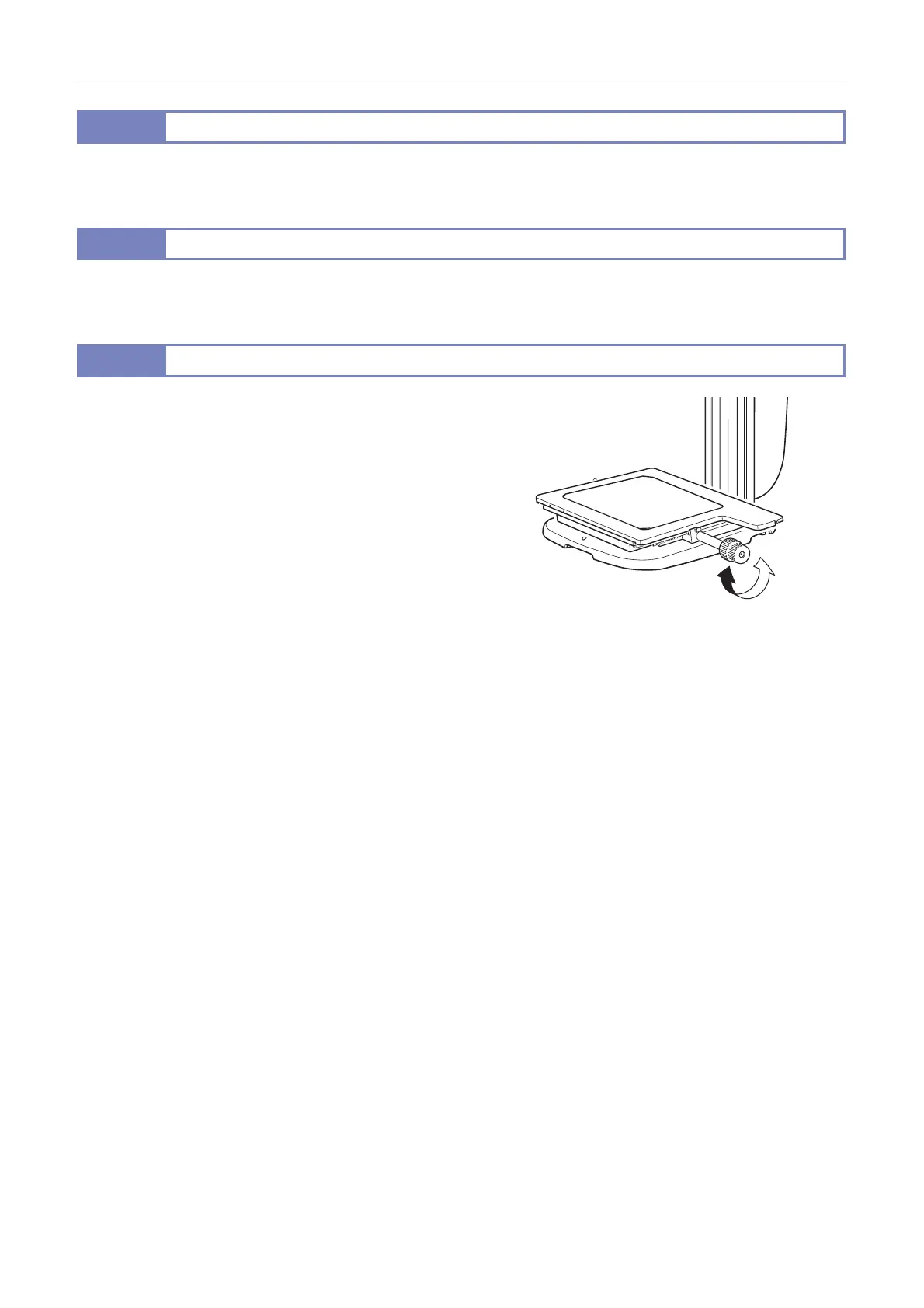

This stage shifts the glass plate in the X and Y directions when
the X/Y shift knobs are turned. Attach this stage instead of the
base or the stage plate on the stand. The glass plate measures
215 mm x 154 mm x 5 mm and is detachable.
45-mm dia. filter can be slotted into the optical-path hole on the
lower board of the stage.
[Compatible bases and stands]
• P2-PB Plain Base
• P2-DBL LED Diascopic Illumination Base
• P2-DBF Fiber Diascopic Illumination Base
• P-PS32 Plain Stand
(The movement of the stroke in the Y direction is restricted.)
• P-DSL32 LED Diascopic Illumination Stand
(The movement of the stroke in the Y direction is restricted.)
• P-DSF32 Fiber Diascopic Illumination Stand
(The movement of the stroke in the Y direction is restricted.)
Shift using the P-SXY64 XY Stage
XY stroke of the stage with the X/Y shift knob and stroke per rotation of the knob
X: 150 mm; 37.5 mm per rotation
Y: 100 mm; 24.1 mm per rotation
Load weight
5 kg or less
Applicable range of diascopic illumination (bright field/ OCC)
150 x 100 mm travel range (Shading may occur in diascopic illumination or OCC illumination in the low zoom
magnification range.)
