Chapter 8 Functions and Operations of the Devices
112

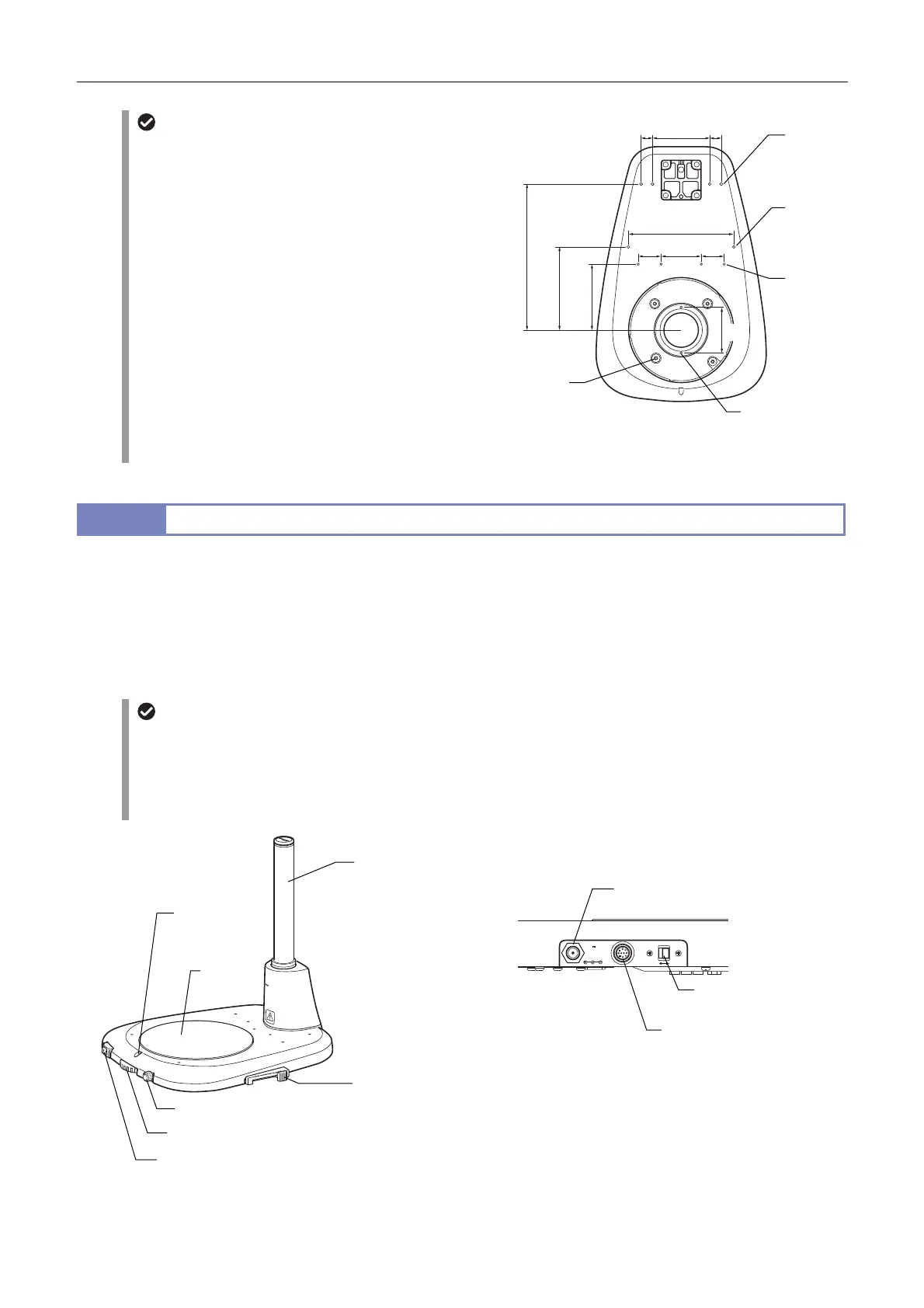

Screw holes for attaching optional devices
The base’s top board has screw holes for attaching various
types of devices. Screw holes
(2) to (5) are not penetrating
to prevent ingress of solution into the base.
(1) 2-M4: Positioned under the stage plate attachment
section of the base. Usable for multiple
purposes.
(2) 4-M6: Positioned under the stage plate attachment
section of the base. Used for attaching the
P-SXY64 XY Stage.
(3) 2-M5: Positioned at the center on the top surface of
the base. Usable for multiple purposes.
(4) 4-M4: Positioned at the center on the top surface of
the base. Usable for multiple purposes.
(5) 4-M5: Positioned at the rear on the top surface of the
base. Used for attaching a device such as the
C-FDF Flexible Double Arm Fiber Illumination
Unit.
Screw holes for attaching optional devices
8.3
P-DSL32 LED Diascopic Illumination Stand
The P-DSL32 is a stand equipped with diascopic illumination optical systems and the focusing mechanism of the support
pillar vertical movement type.
Combine this stand with an SMZ18 via a P2-FMDN Focus Mount. This stand cannot be used in combination with an SMZ25.
The base with a large glass plate (180 mm dia.) enhances usability and enables easier observation of samples in a container
such as a petri dish.
A dedicated hex driver is located at the top of the support pillar.
Sliding mechanism of the stage plate
The sliding parts are mounted on the base part for mounting the stage plate, which can be slid by loosening the stage
plate fixing screw. There is a clearance gap of approximately 3 mm around the stage plate when the stage is securely set.
The stage plate can be smoothly and finely moved within the clearance gap by loosening the stage plate fixing screw.
This mechanism is useful for positioning, especially for high-magnification observation.
Securely fix the stage plate in place using the fixing screw when this mechanism does not need to be used.
CTRL
CTRL
INPUT
12VDC ,
3.5A
ON OFF
Left side of the base
P-DSL32 LED Diascopic Illumination Stand
(1)
2-M4
(5)
4-M5
Depth 7
(3)
2-M5
Depth 7
(4)
4-M4
Depth 6
(2)
4-M6
Depth 8
20 100 20
184
40 70 40
80
255
145
115
LED brightness control
selection switch
LED brightness control
terminal
A
C adapter input terminal
Support pillar
Stage
plate
OCC adjustment knob
LED brightness control dial
Focus dial
LED power ON/OFF switch
Stage plate
fixing screw
