Chapter 8 Functions and Operations of the Devices
122
10
Remote Control Devices
A remote controller, foot switch, and photo release are available as remote control devices of the microscope system.
10.1

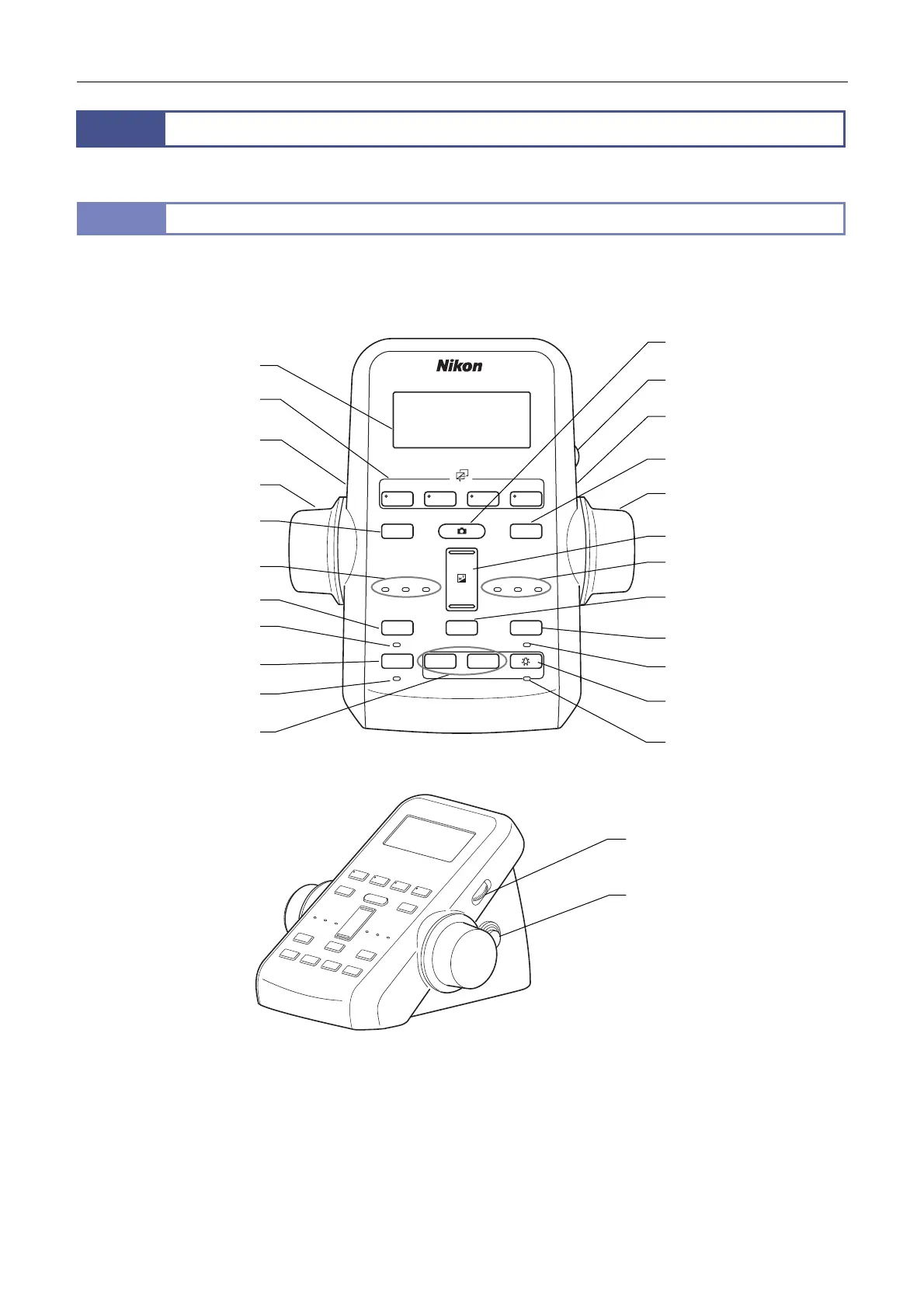

P2-RC Remote Controller
The P2-RC Remote Controller is used mainly for focus and zoom operations.
The remote controller is attached to the REMOTE connector of the P2-CTLA Control Box.
DISPLAY
BRIGHTNESS
ESCAPE
ALZ
−+
LIMIT
ZOOM
STEP
Z-RESET
Z-SPEED
ZOOM STEP
Coarse
FL Cube
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Fine
Ex Fine
1x
0.5x
0.1x
+
−
Front Right Side
P2-RC Remote Controller
(1) LCD
(6) Filter cube switching
button
(7) LCD display switching
button
(5) Focus speed indicato
(13) Escape button
(14) Escape ON/OFF
indicato
(17) ALZ button
(18) ALZ ON/OFF
(19) Diascopic LED
brightness control button
(9) Capture button
(2) Backlight control dial
(4) Fine/coarse focus
switchin
button
(8) Z-reset button
(3) Focus knob
(12) Zoom step indicator
(10) Zoom button
(11) Zoom step switching
button
(15) Limit button
(16) Limit ON/OFF indicator
(20) Diascopic LED ON/OFF
button
(21) Diascopic LED ON/OFF
indicato
(4) Fine/coarse focus
switching button
(3) Focus knob
(2) Backlight control dial
(4) Fine/coarse focus
switching button
(on both sides)
To Next Page
