Chapter 7 Specific Operations
74
7
Focusing on the Sample
Focus adjustment of the sample is performed by the rotation of the focus knobs on the focus unit or focus mount. When the
remote controller or foot switch is connected, focusing can be adjusted using the focus knobs of the remote controller or the
foot pedals on the left side of the foot switch. To use the foot switch, the P2-RC Remote Controller or the P2-CTLA Control
Box must be connected.

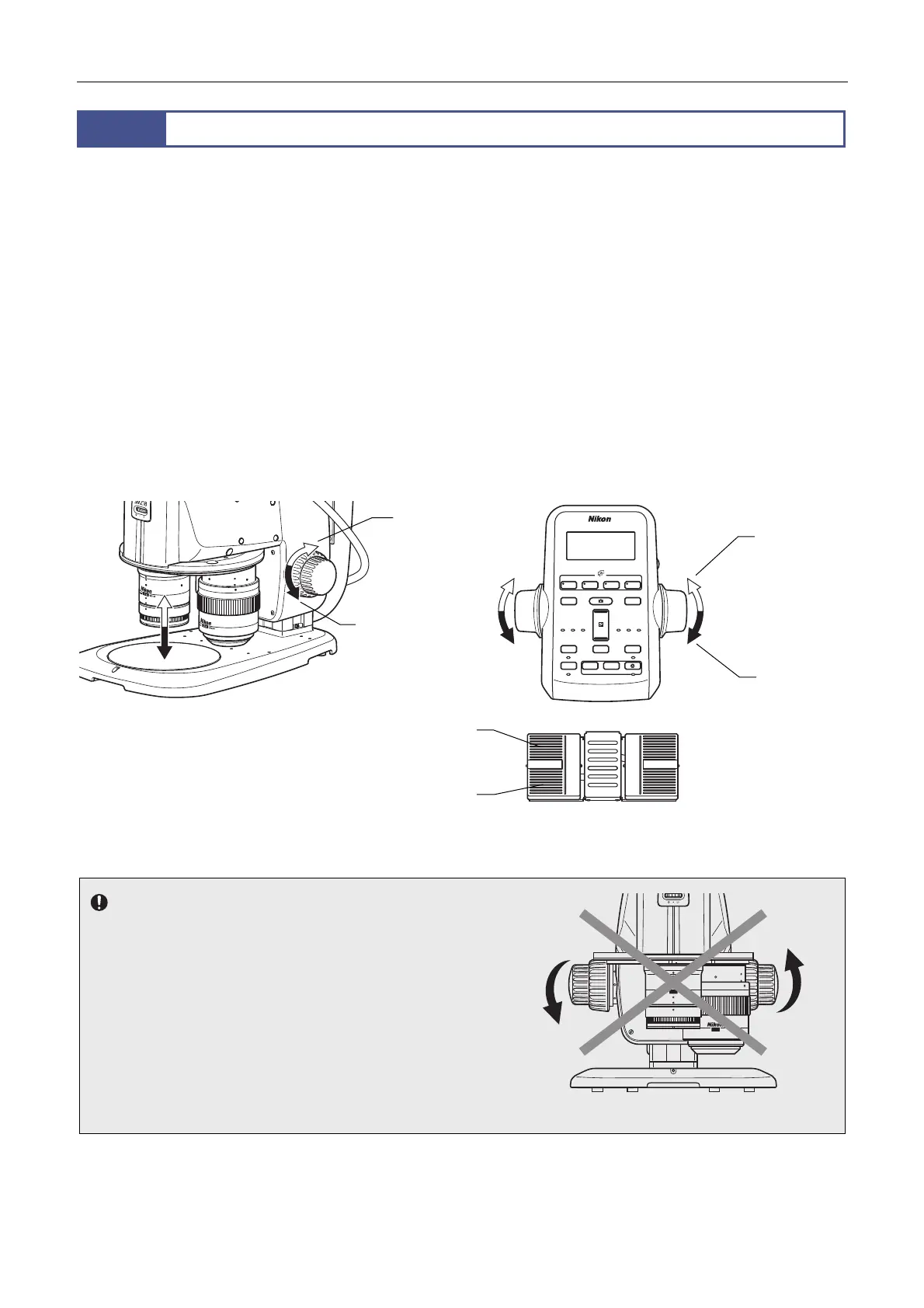

[Focus operation]
Focus unit, focus mount, remote controller: Focus knob
The figure shows the turning directions of the focus knobs and the corresponding vertical movements of the focus mount.
• Turning the knob backward: Upward movement
• Turning the knob forward: Downward movement
Foot switch: Left foot pedal
• Rear pedal: Upward movement
• Front pedal: Downward movement
(See Chapter 8, “10.2 AZ-FSW Foot Switch.”)
DISPLAY
BRIGHTNESS
ESCAPE
ALZ
−+
LIMIT
ZOOM
STEP
Z-RESET
Z-SPEED
ZOOM STEP
Coarse
FL Cube
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Fine
Ex Fine
1x
0.5x
0.1x
+
−
Focus operation
Notes on turning the focus knobs
• When using the focus knobs of the focus unit, focus mount or
the remote controller, do not turn (or twist) the right and left
focus knobs in opposite directions at the same time. Doing so
may cause malfunction.
• When the focus knobs of the focus unit or focus mount reach
their rotational limits for the unit’s vertical movement, do not
forcibly turn it further. Doing so may cause malfunction.
1 x
SHR Plan apo WD:60
2 x
SHR Plan apo WD:20
Do not turn the knobs in the opposite direction!
Upward
movement
Downward
movement
Upward
movement
Downward
movement
Left rear pedal
(Upward movement)
Left front pedal
(Downward movement)
