14 / Norstar Orientation

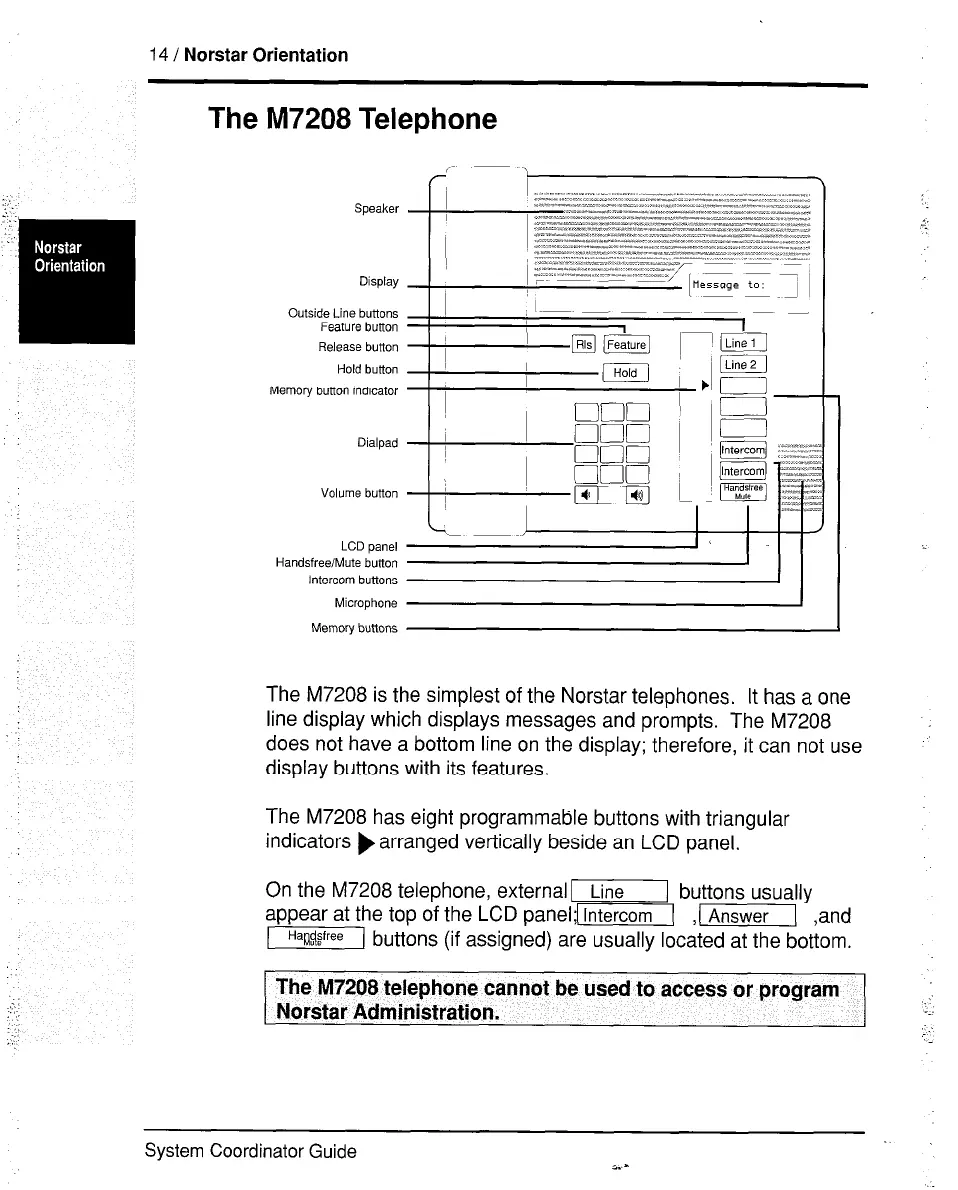

The M7208 Telephone
Speaker
Display
Outside Line buttons
Feature button
Release button
Hold button
Memory button indicator
Dialpad
Volume button
LCD panel
Handsfree/Mute button
Intercom buttons
Microphone
Memory buttons
I I
I
’ I
The M7208 is the simplest of the Norstar telephones. It has a one
line display which displays messages and prompts. The M7208
does not have a bottom line on the display; therefore, it can not use
display buttons with its features.
The M7208 has eight programmable buttons with triangular
indicators ) arranged vertically beside an LCD panel.
On the M7208 telephone, external m buttons usually
appear at the top of the LCD panel;( ,and
,(I
-1 buttons (if assigned) are usually located at the bottom.
The M7208 telephone cannot be used to access or program
Norstar Administration.
System Coordinator Guide
