AFP-2800 - Fire Indicator Panel – Appendix Page 67
©
N
OTIFIER
I
NERTIA
P
TY
L
TD
,
2001
WWW
.
INERTIA
.
COM
.
AU
5.4
5.45.4
5.4 LCD-80 O
LCD-80 OLCD-80 O
LCD-80 O
PERATION
PERATIONPERATION
PERATION
– T
– T– T
– T
ERMINAL
ERMINAL ERMINAL
ERMINAL
M
MM
M
ODE
ODEODE
ODE
The LCD-80 is an alphanumeric display module that acts as a remote display interface to the AFP-2800. It displays
Alarm, Fault and Isolate lists. A local buzzer will sound for any alarm or fault (this buzzer can be disabled if
required). The AFP-2800 can support up to 30 LCD-80 units on Ring 1. Refer to section 5.12.6 for connection,
addressing and set-up details.

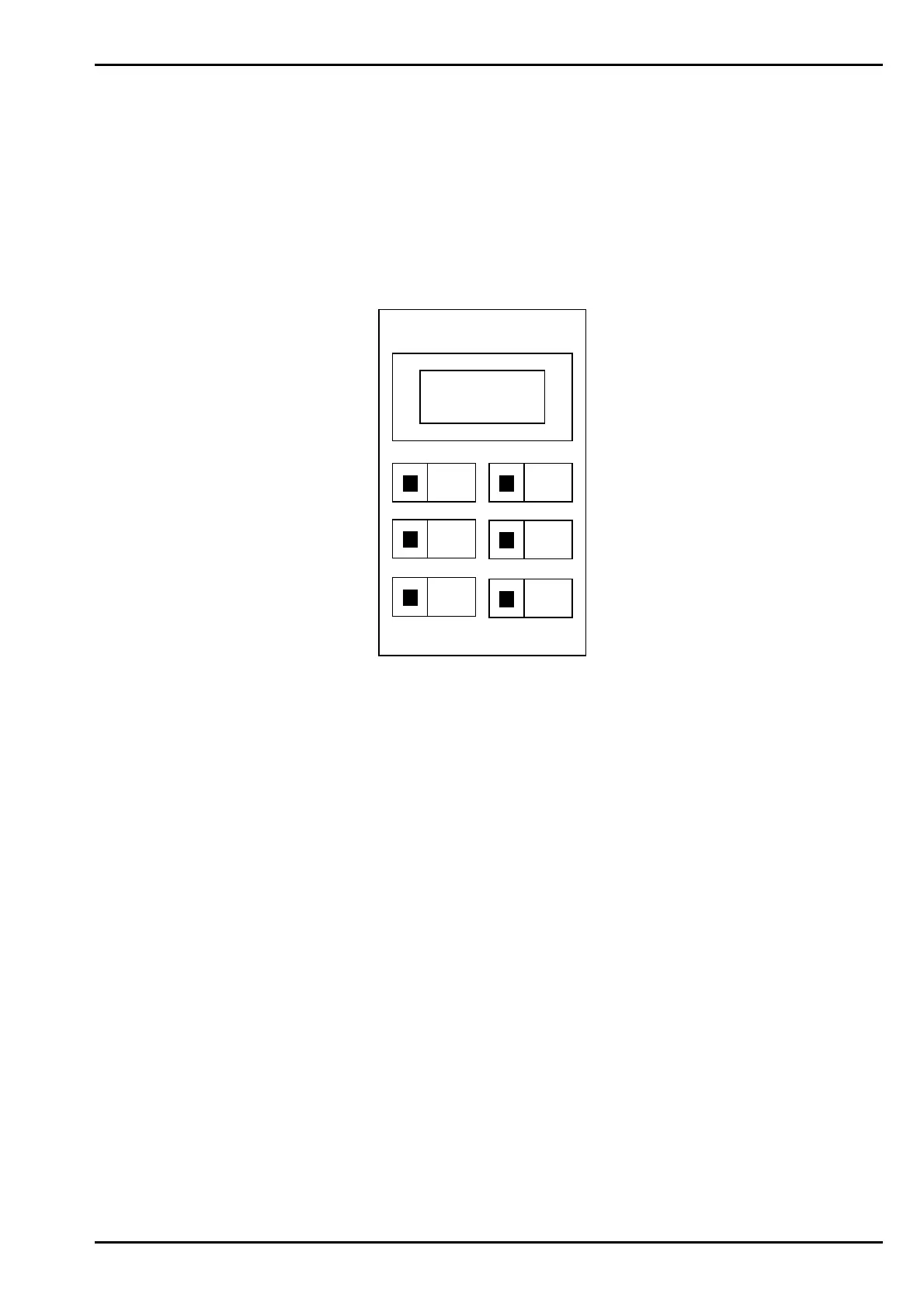

Display
Isolates
Display
Alarms
Display
Faults
Next
Previous
Mute
10 SEPT 12:34 1/1
EAST WING
1.2.Z6 FAULT
A=0 F=1 I=0
Normal Operation
The display will automatically show the highest priority event in the FIP event queue. Priorities, in descending
order, are Alarms, Faults, then Isolates. In the event that a fault is showing on the display and an alarm occurs,
the display will automatically change to show the alarm. Totals of all Alarms, Faults and Isolates are also shown
and are automatically updated every 10 seconds.
Manual Operation
• Pressing “DISPLAY ALARMS” will show the first alarm in the alarm list
• Pressing “DISPLAY FAULTS” will show the first fault in the fault list
• Pressing “DISPLAY ISOLATES” will show the first isolate in the isolate list
• Pressing the “NEXT” and “PREVIOUS” buttons allow the user to scroll up and down the lists. When the last
event on the list is reached, the display will wrap around to the first event on the list, and vice versa.
Note: If a new event occurs on the FIP, then the highest priority event will automatically be displayed.
Event Sounder
Switch 1 of DIP switch SW1 will disable the buzzer for alarms.
Switch 2 of DIP switch SW1 will disable the buzzer for faults.
If the buzzer is enabled, pressing the “MUTE” button will silence the buzzer until a new event is received.
