AFP-3030 Operations Manual — P/N DOC-01-039:A 26/11/2015 34
Disabled Points Event Operation of the Control Panel
2.11 Disabled Points Event
The control panel indicates disabled points by displaying a screen for each disabled detector, moni-
tor module, and control/relay module. Disabled points do not cause an alarm or any Con-
trol-by-event activity. If more than one point is disabled, the control panel automatically displays
each point in the sequence in which the point was disabled.
When one or more points are disabled, the control panel does the following:
• Holds all disabled output points in the off-state
• Illuminates the
DISABLE LED
• Sends a Disabled Point message to the History buffer, installed printer and annunciators
• Displays a message for each disabled point, with DISABLED in the upper left corner of the
LCD as well as other information about the point.

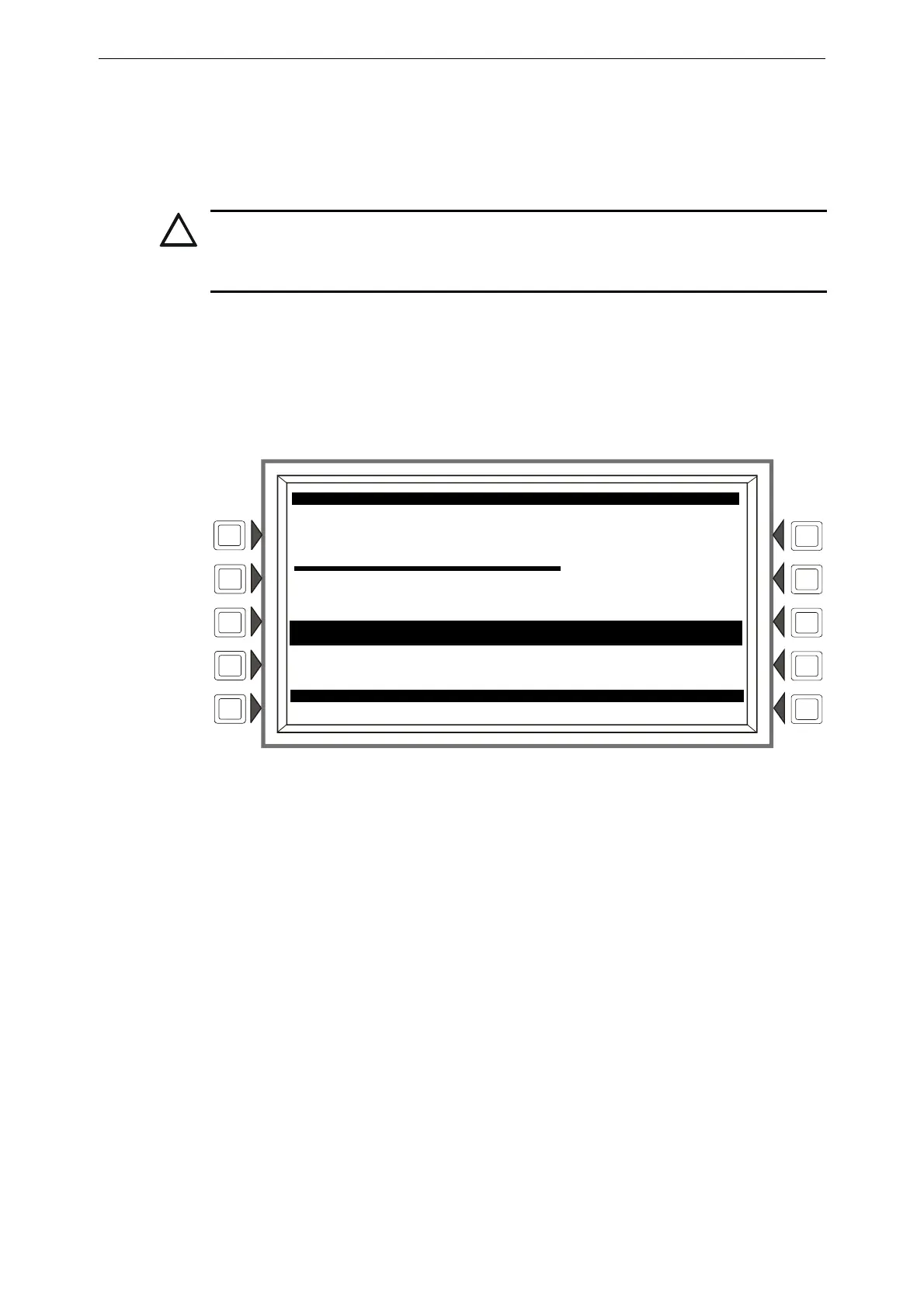

Figure 2.12 Sample Disabled Point Message
2.12 Active Event
2.12.1 How the Control Panel Indicates an Active Fire Control
Point
A point with a Type ID of FIRE CONTROL is used for air handler shutdown, intended to override nor-
mal operating automatic functions.
Activation of a
FIRE CONTROL point causes the control panel to do the following:
• Initiates the monitor module Control-by-Event
• Send a message to the panel display, History buffer, installed printer and annunciators
• Does NOT light an indicator at the control panel
•Displays ACTIVE in the upper left corner of the LCD, as well as a
FIRE CONTROL Type Code
and other information specific to the device
2.12.2 How the Control Panel Indicates an Active Non-fire Point
A point with a Type ID of NON-FIRE is used for energy management or other non-fire situations.
NON-FIRE point operation does not affect control panel operation, nor does it display a message at
the panel LCD. Activation of a
NON-FIRE point activates CBE—but does not cause any indication
!
CAUTION:
WHEN A ZONE IS DISABLED, ANY INPUT AND OUTPUT DEVICES MAPPED TO THE ZONE
ARE DISABLED IF THE ZONE IS THE POINT’S PRIMARY ZONE. (THE PRIMARY ZONE IS THE
ZONE IN THE FIRST POSITION OF THE ZONE MAP.)
DISABLE: 2 OF 2
DISABLED
ELEVATOR LOBBY EAST WING
FIRST FLOOR DOOR TAMPER
10:35:17A TUE 02 DEC 2014 L01M134
MORE INFO...
1 DIS L02D003
Detector L02D003
2 DIS L01M134
FIRST FLOOR DOOR
ALM:0 SUP:0 FLT:0 DIS:2 OTHER:0
11:58:43A TUE 02, DEC, 2014
