General Information Navigating Menu and Programming Screens
The second, third and fourth lines always contain the same device information, as follows:
Refer to Figure 1.3 on page 7 for an example of a Point Event Display.
If the fire panel is ALL SYSTEMS NORMAL and a Mass Notification event occurs over the
network on a MNS mapped node, the panel will display NETWORK MN ACTIVE. Refer to
VeriFire Tools for MN Mapping information.
Figure 1.5 Network Mass Notification Event Example
1.6 Navigating Menu and Programming Screens
The Main Menu (refer to Figure 1.6) leads to screens with various menu options. Choices may be
made from the menu screens by pressing the soft key closest to the menu option.
Field information may be added/modified using the keypad and special function keys.
Arrow keys on the keypad can be used to navigate between fields on a screen if there are no soft
keys to select the fields.
Pressing a BACK soft key on a screen returns the programmer to the previous screen without saving
the information entered.
Pressing an ACCEPT soft key will save information entered on the screen. It may also return to the
previous screen and/or perform other functions as described in the soft key section for each screen.
When the panel can not read a specified point (that is, if the point entered on the screen for
processing does not exist in the panel’s programming) it will display an error screen for several
seconds, then return to the screen where the address was entered. The user must check his input and
investigate the state of the point.
1.7 The Main Menu
The Main Menu screen is the means by which the programmer can access displays, history
information, printing and programming menus. This screen is accessible from the System Normal
Screen (Refer to Figure 1.2), and from most other screens by pressing the BACK soft key until it
displays.
MN ALARM
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF20 MN MON
11:58:45A TUE JAN 22, 2013 L03M002

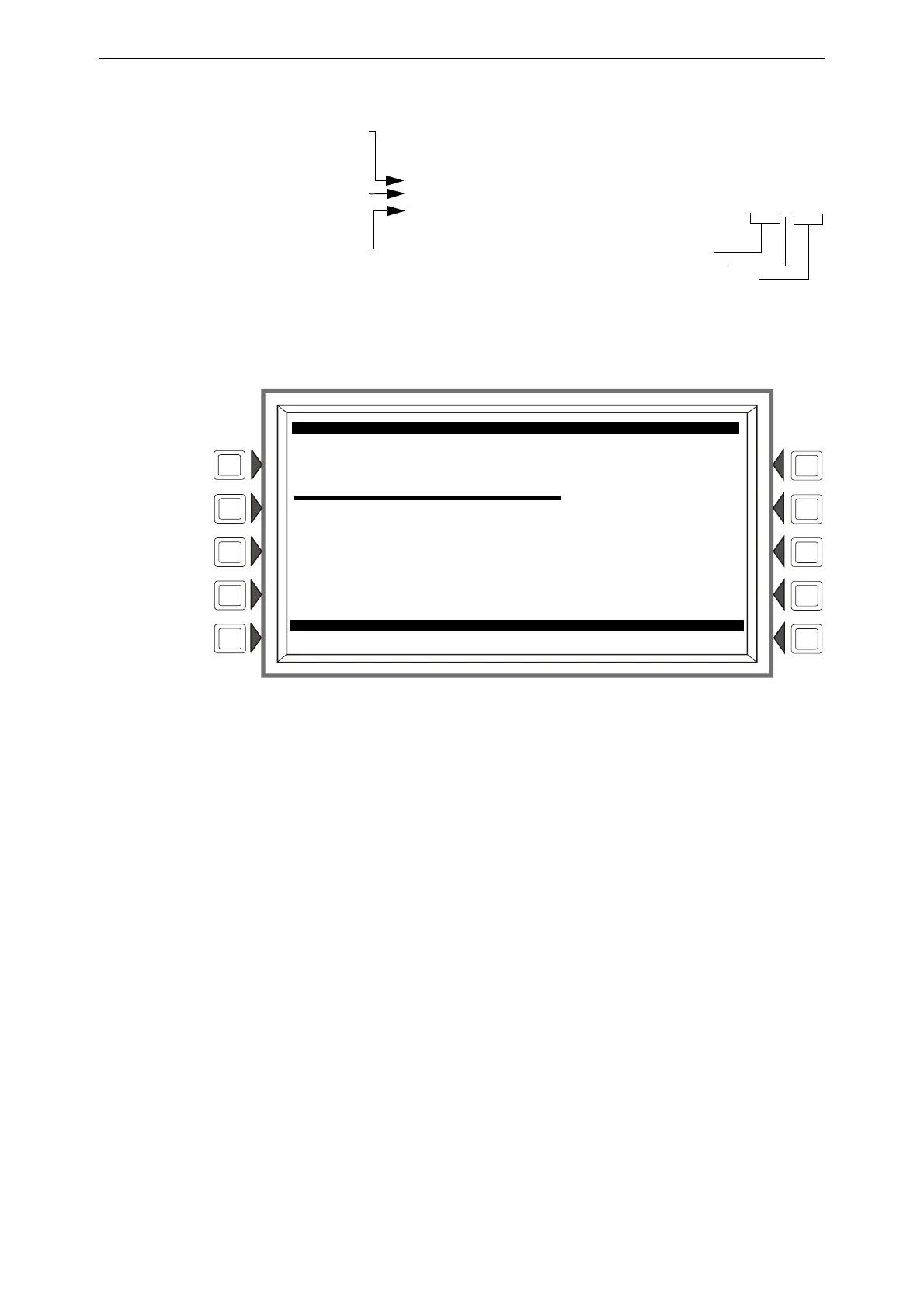

Line 2 - Displays the custom
label and the extended label
Line 3 - Displays the primary
zone label, the primary zone
number, and the software
Type ID.
Line 4 - Displays event time,
event date and device
address.
Loop number
Monitor
Device address
OTHER: 0 OF 0
NETWORK MN ACTIVE
10:35:17A TUE 02 DEC 2014
ALM:0 SUP:0 FLT:0 DIS:0 OTHER:0
11:58:43A TUE 02, DEC, 2014
To Next Page
