Aspiration Detector Read Status
Line 6 - Refer to the description for Status in Section 3.2, “Smoke Detector”, on page 41. The
MORE option will only be displayed when performing a Read Status on a Photo/CO detector. Refer
to the
MORE option screen below for further details.
Lines 7 through 14 - Refer to the descriptions in Section 3.2, “Smoke Detector”, on page 41.
Line 15 - The current time and date are displayed in this line.
Line 16 - Press
BACK to return to the previous screen.
Figure 3.5 Photo/CO Smoke Detector Screen (2) - Read Status
Lines 1 through 13 - Refer to the descriptions in Section 3.2, “Smoke Detector”, on page 41.
Line 14 - CO - This field represents the level of Carbon Monoxide for the device. The value is in
parts per million.
Line 15 - The current time and date are displayed in this line.
Line 16 - Press
BACK to return to the previous screen.
3.5 Aspiration Detector
When a detector address is entered into the Point Select Screen and the ACCEPT soft key is
pressed, the following screen will display if the detector is an aspiration detector.

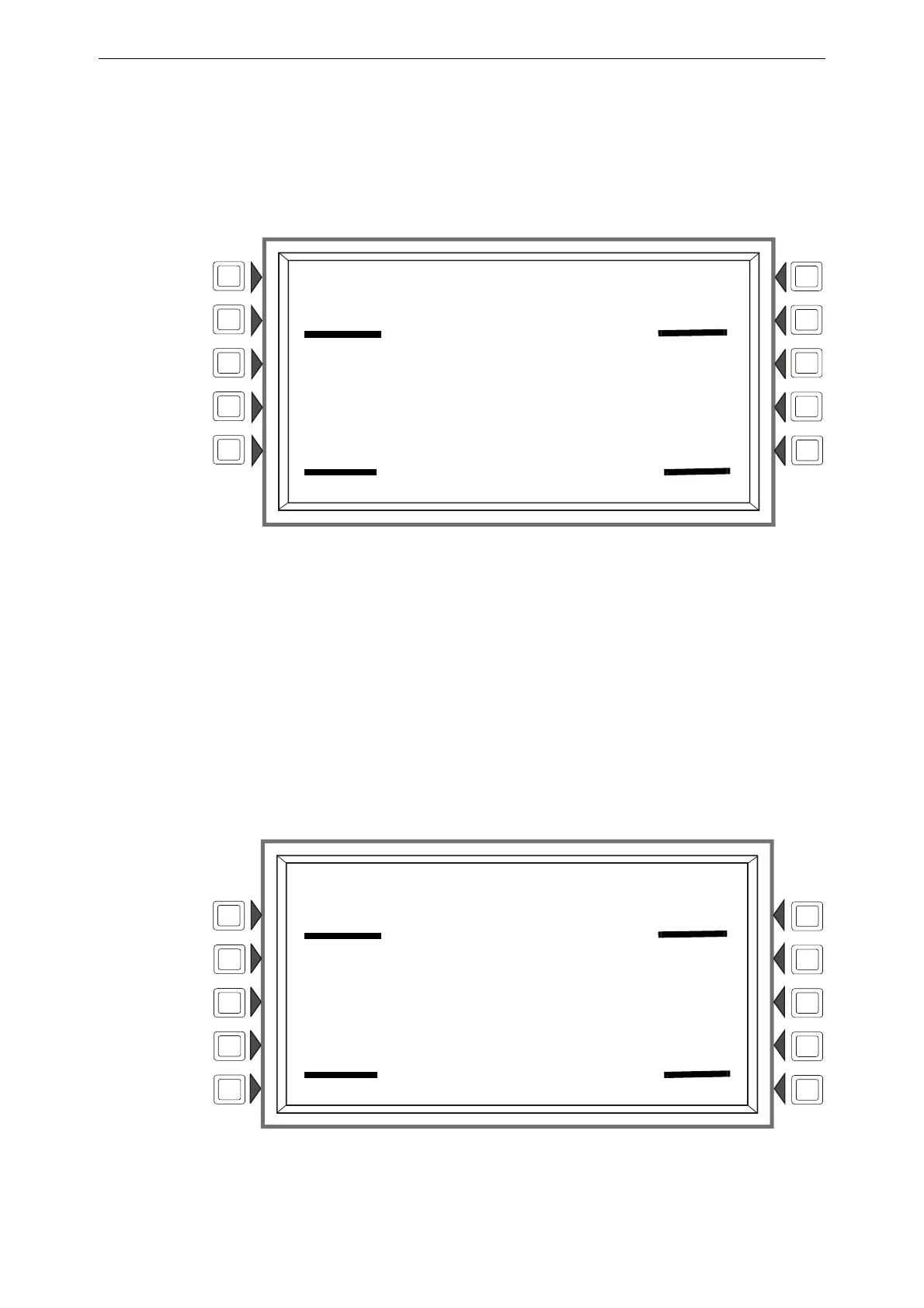

Figure 3.6 Aspiration Detector Screen - Read Status
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A TUE JAN 25, 2011
READ ADDRESS: N124L03D052
CO PREALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 PHOTO/CO
CO:200PPM
10:22:34A TUE JAN 25, 2011
BACK
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A TUE JAN 28, 2013
READ ADDRESS: L03D052
AUTOMATIC INACTIVE
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 ASPIRATION
Z005, Z027, Z066, , ,
, , , , ,
VALUES: 011% OF ALARM
ACTION/STATUS: NONE/VERY CLEAN
PEAKS=56% COUNT:02 TEMP:
10:22:34A TUE JAN 28, 2013
BACK
