Section 3 Installation Attaching Panel Circuit Modules
24 NFS-3030 Installation PN 51330:C 10/28/2003
• Type your point-programming information onto the slide-in labels provided with your panel
circuit module or create custom labels with LabelEase (available from Notifier); insert these
labels into the slots at the top of the module.
3.7.2 Mount Expander Boards
Expander Board Modules need to be mounted onto their respective modules (e.g. ICE-4 onto ICM-
4RK, or CRE-4 onto CRM-4RK) before being installed onto a chassis. To mount an expander module:
1. Remove one module support screw and set it aside for later use.
2. Replace the module support screw with one module stand-off (supplied with expander).
3. Repeat Steps 1 and 2 for the three remaining module support screws. Remove only one at a time so
the panel circuit module does not come apart.
4. Insert pins on the front of the expander board into connector on the back of the module. Make sure
the pins are in line; then, press the two units together until they snap into place.
5. Install the four module support screws (removed earlier) through the back of the expander board
and into the stand-offs. Tighten securely.
Figure 10 illustrates the steps.

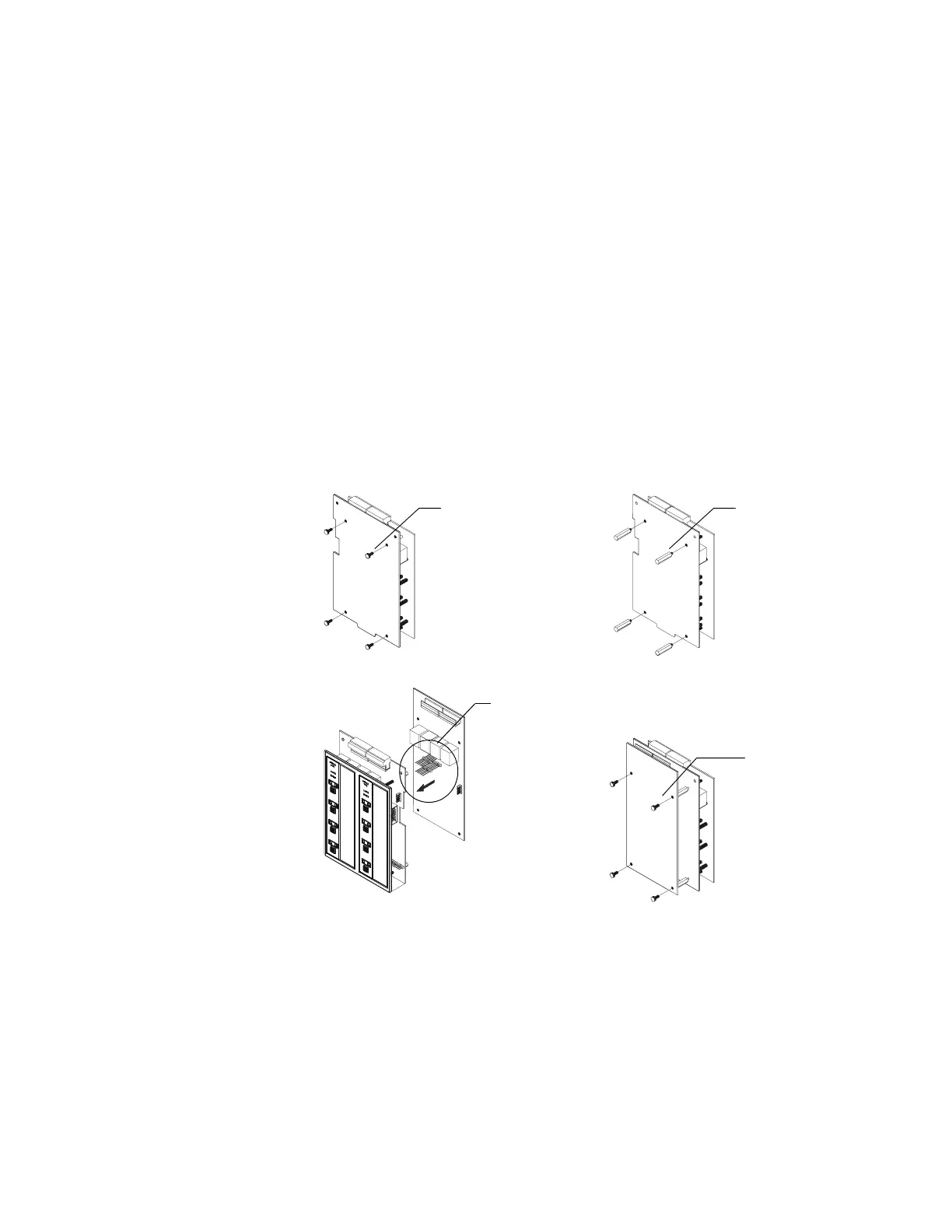

Figure 10
Expander Module Installation
Install module
stand-off
Remove existing
module support
screw
Plug in the
expander board
(front view shows
pin connectors)
Secure with
module support
screws
3030-pcmods.cdr
Steps 1 & 2:
Replace each screw with a standoff.
Note: Remove only one screw at a
time so that the panel circuit module
does not come apart.
Steps 4 & 5
Connect and secure expander board.
