Section 4 Applications Fire/Security Applications
56 NFS-3030 Installation PN 51330:C 10/28/2003
4.5.9 Security Annunciation
A1P1
Mode: Monitor
Source: ZLc
A1P2
Mode: Monitor
Source: ZLe
A1P3
Mode: Monitor
Source: LXXMYY
A1P4
Mode: Monitor
Source: LXXMYY
Additional doors can be monitored,
up to the number of available
annunciator points.
3. Programming Group Interfaces
Group Interface for Trouble when
system is armed while access
point(s) active
A. CM programming
Address: LXXMYYY (arbitrary)
Type ID: RELAY
Zone Map: ZLb
Custom Label: Arming Trouble Group
Output
Signal Silence: No
Walk Test: Yes/No (Installer Specified)
Switch Inhibit: Yes
B. MM Programming
Address: LXXMYYY (arbitrary)
Type ID: TROUBLE MON
Zone Map: (none)
Group Interface for Security Alarm
A. CM programming
Address: LXXMYYY (arbitrary)
Type ID: RELAY
Zone Map: ZLe
Custom Label: Security Group Output
Signal Silence: No
Walk Test: Yes/No (Installer Specified)
Switch Inhibit: Yes
B. MM Programming
Address: LXXMYYY (arbitrary)
Type ID: SECURITY-L
Zone Map: (none)
MM CM
System Status
(red is armed)
acm-24atface.cdr
System Alarm
(red is alarm)
Entry/Exit Door 1 Status
(red is unsecured)
Entry/Exit Door 2 Status
(red is unsecured)

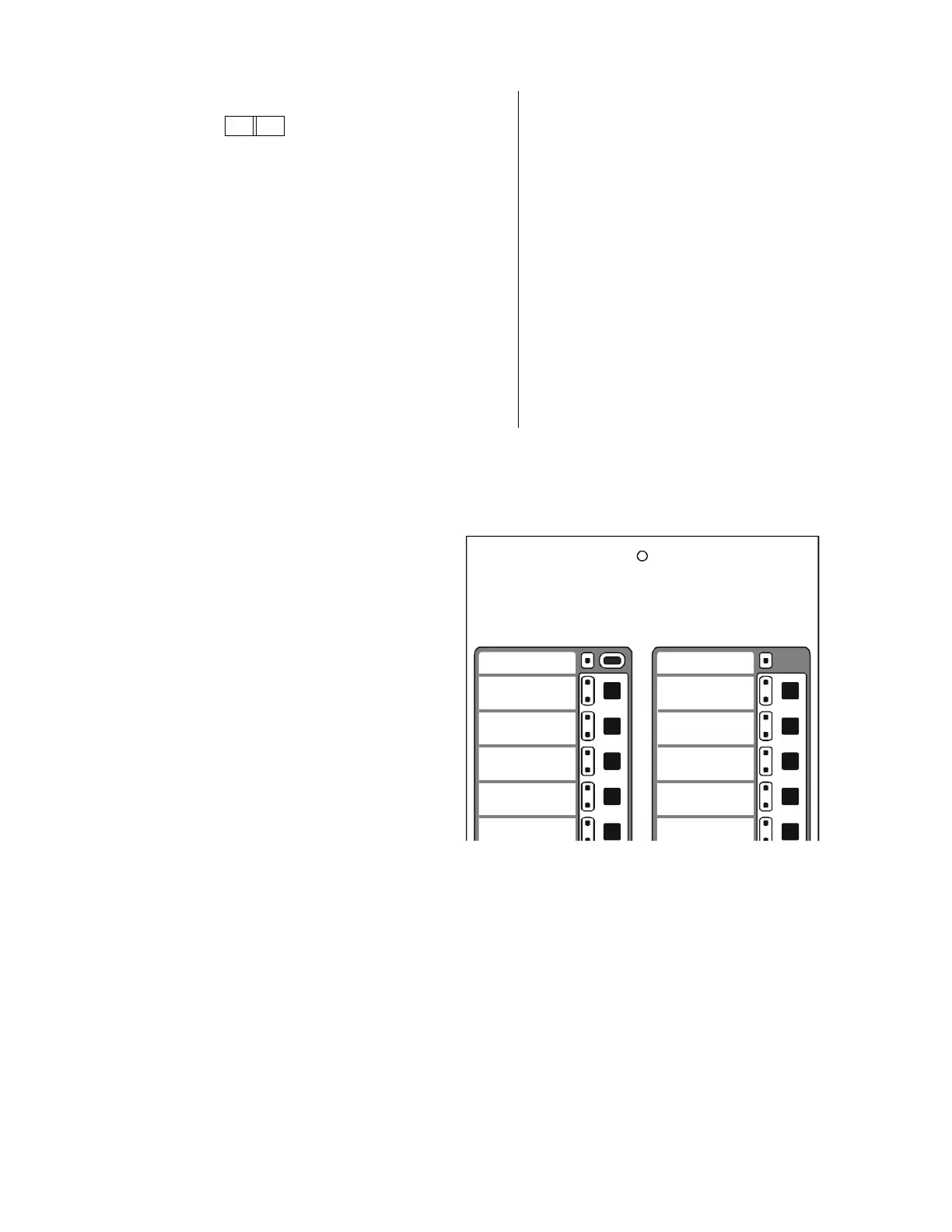

Figure 41 Sample Annunciator Display
