Fire/Security Applications Section 4 Applications
NFS-3030 Installation PN 51330:C 10/28/2003 55

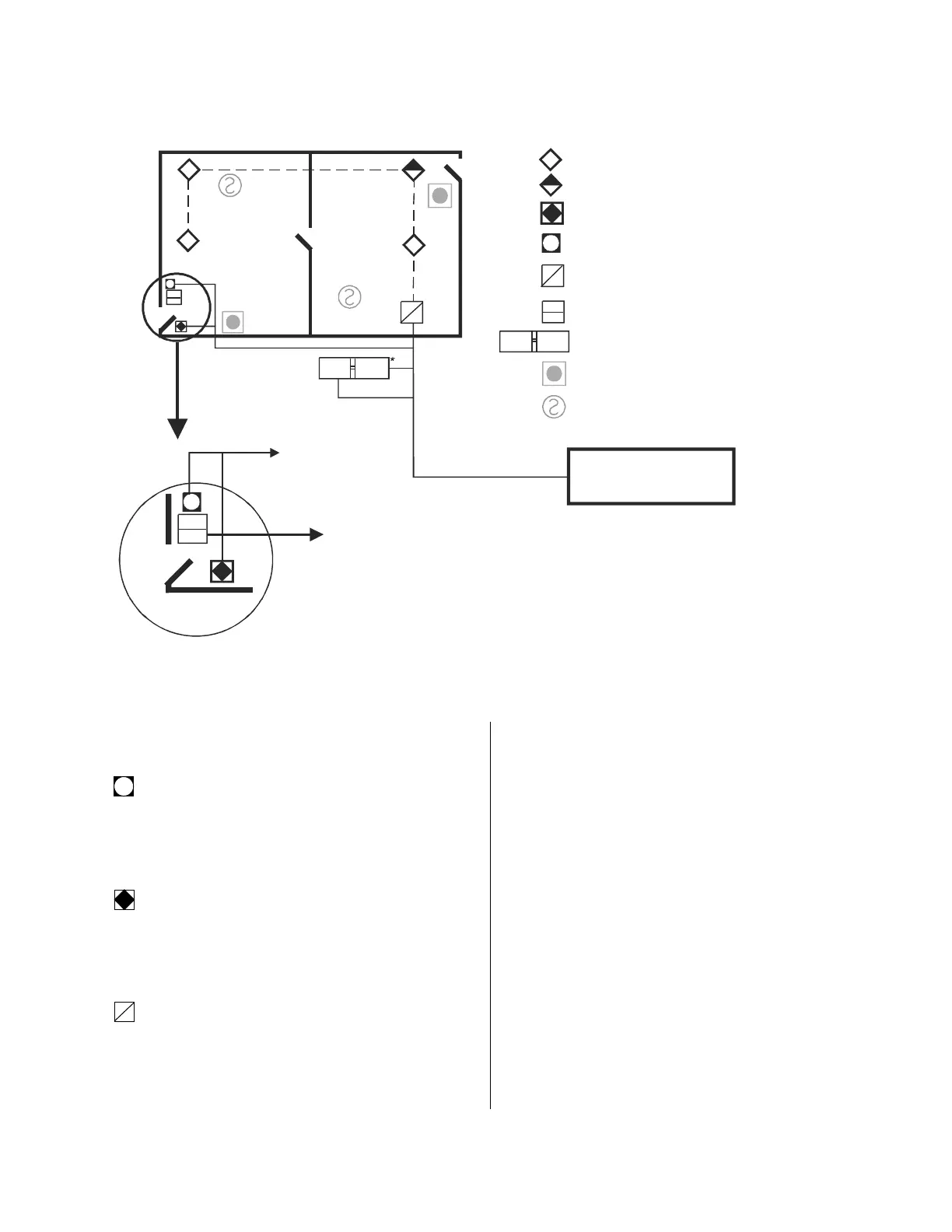

Figure 40 Single Tenant Security System with Entry/Exit Delay
Programming Notes for Figure 40
TENANT A
Area6_b.cdr
AREA 1
(Perimeter
and interior)
To Signaling
Line Circuit
MM
To Central Station
(via EIA-485 circuit)
Entry/Exit Door
NFS-3030
Central Station
* Group Interface must be
physically located in either
the protected premises or
the Central Station
Key
Motion Detector
Contact Switch
Contact Switch with MM Module
Pull Station
Smoke Detector
RKS-S Remote Key Switch with MM Module
Remote Annunciator
MM Security Access Monitor
Group Interface *
CM
MM CM
Note: See “Programming Notes for Figure 40” and Figure 40.
continued…
1. Programming of Key Switch,
Access Points, and Motion Detection
RKS Remote Key Switch with Monitor Module
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: (none)
Custom Label: Arming Switch
Contact Switches with Monitor Modules
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: ZA
Custom Label: Exit Door #
Motion Detectors with Monitor Modules
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: ZB
Custom Label: Motion Detection
2. Programming of Logic Equations
Logic Equation for 1 minute exit delay:
ZLa* = DEL(01:00, 00:00, address of
key switch)
Logic Equation for Trouble arming system:
ZLb* = AND (ZA, address of key
switch, NOT(Zla))
Logic Equation to arm system:
ZLc* = AND (ZLa, NOT(ZLb))
Logic Equation providing 30-second entry delay:
ZLd* = SDEL(00:30, 00:30, ZA)
Logic Equation for Security Alarm:
ZLe* = AND (ZLc, OR (ZLd))
*Follow the following restrictions on values:
a < b < c < d <e
To Next Page
