4. Component replacement
4.2 Method of component replacement
In this chapter, the replacement of parts and assemblies is described by the disassemble
ļ¬gures.

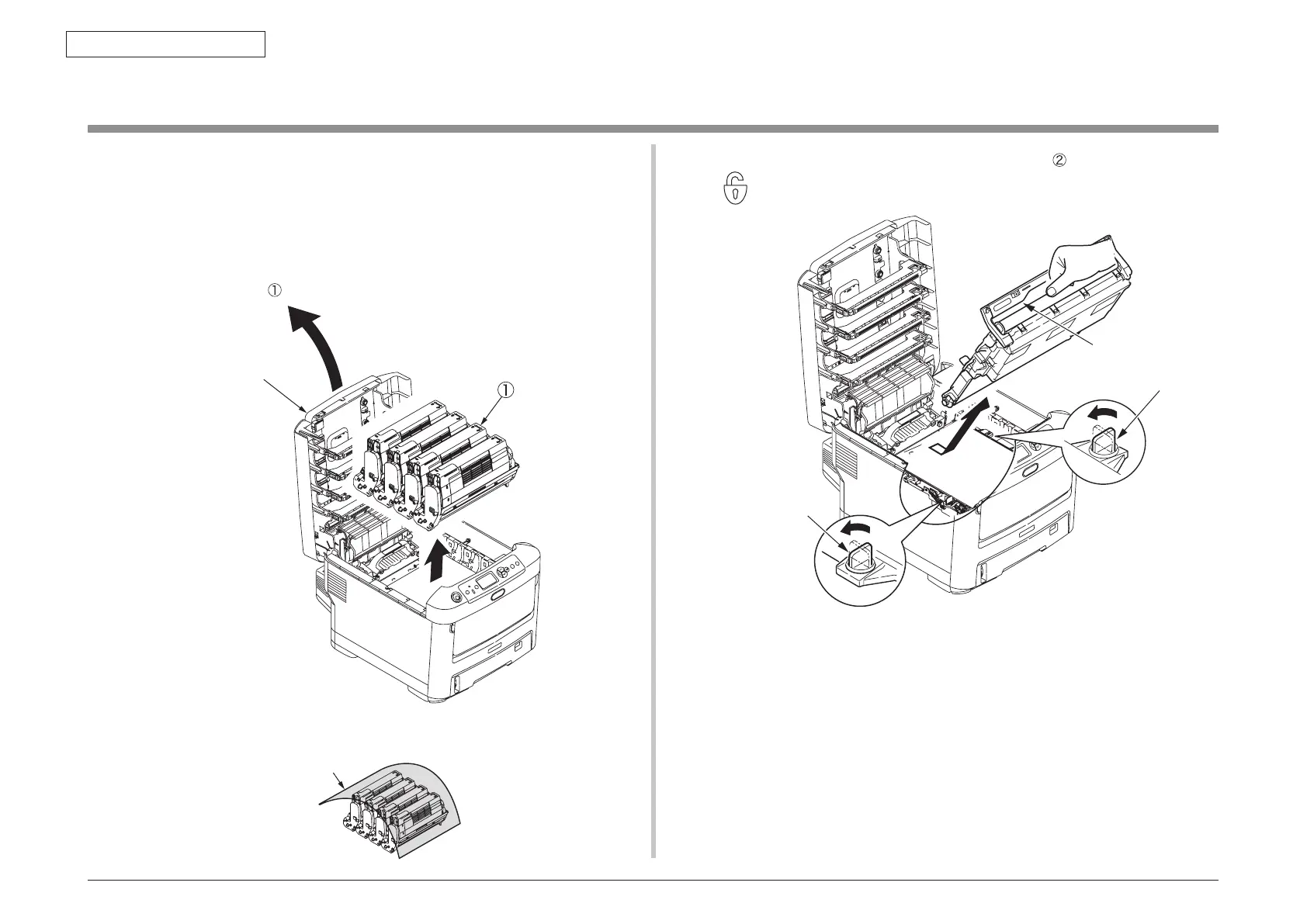

4.2.1 Belt unit
(1) Open the top cover.
(2) Remove the ID unit
.
(3) Rotate the lock lever (blue, 2 places) of the belt unit
in the direction of arrow
, and hold the lever (blue) to remove the belt unit.
Lock lever (blue)
Lock lever (blue)
Lever (blue)
Note! Cover the removed image drum cartridge with black paper.
