4. Component replacement

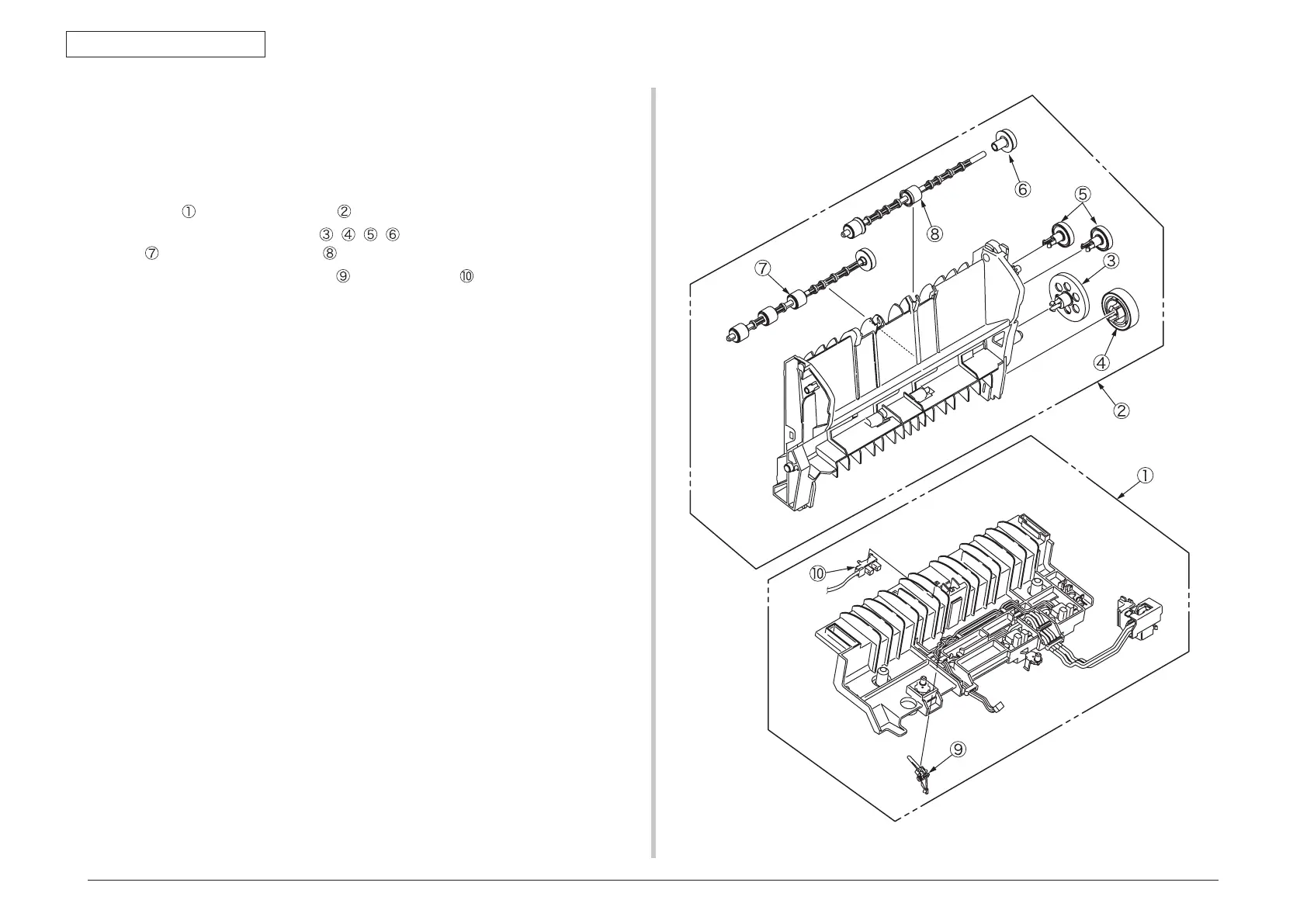

4.2.21 Shaft eject Assy (FU)/ Shaft eject Assy(FD/ Eject
sensor
(1) Remove the eject Assy. (See section 4.2.15)
(2) Disengage the claws (2 places), and disassemble the Assy into guide eject
lower
and guide eject upper .
(3) Remove the gear idle eject
, , , and remove the shaft Assy eject (FU)
and shaft Assy eject (FD) .
(4) Remove the lever eject sensor
and eject sensor .
