Oki C711 User Manual

44205401TH Rev.1
67 /
Oki Data CONFIDENTIAL
4. Component replacement

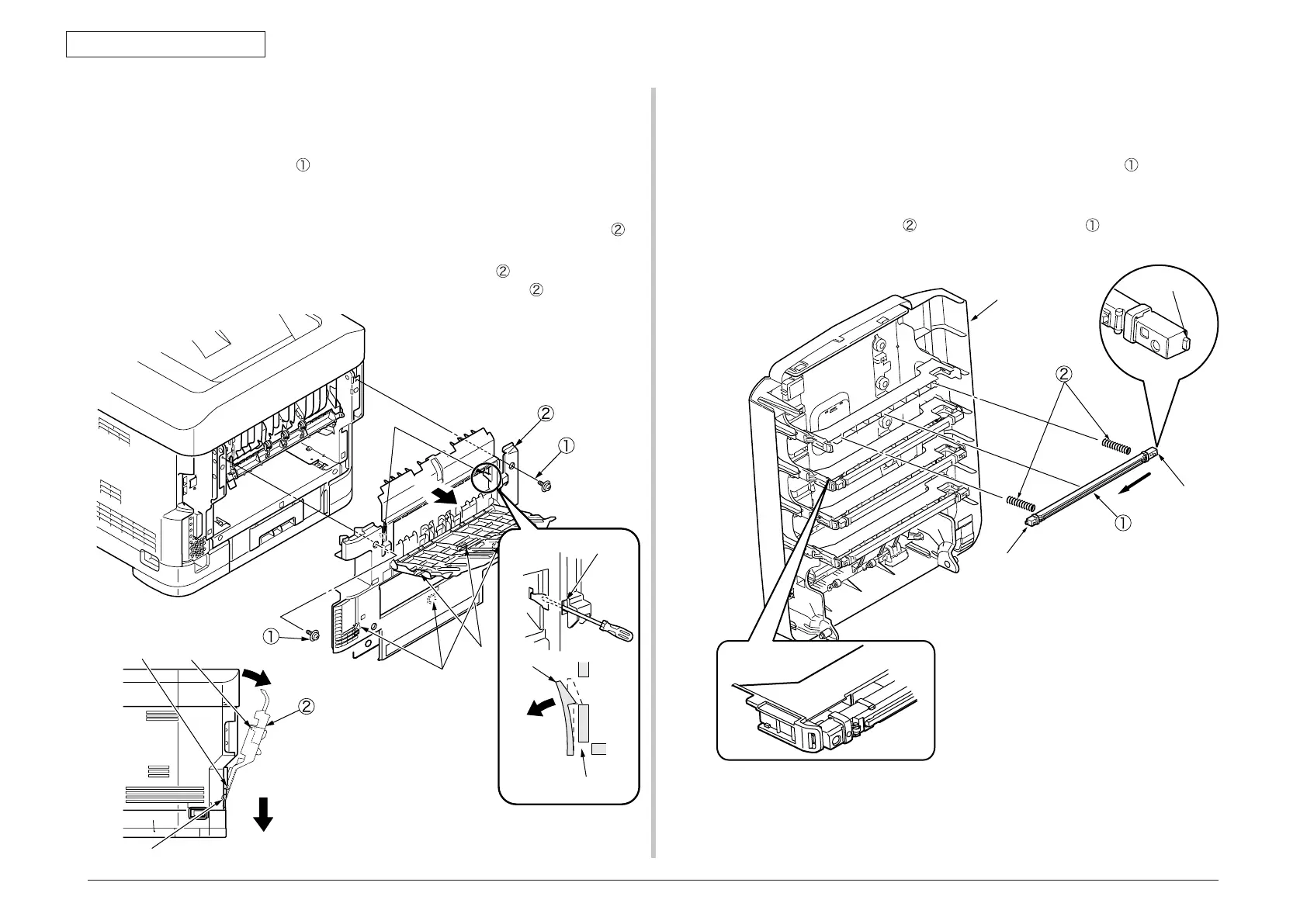

4.2.6 Rear cover
(1) Open the faceup tray.
(2) Remove the two screws
(silver, No:42920406).
(3) As shown in fig 2, insert the minus driver into the hole A to disengage the claw A (2
place).
(4) Disengage the
claw B (2 places) and pull the upper side of the rear cover
in
the direction of A.
(5) As sho
wn in fig 3, push the lower side of the rear cover
in the direction of B,
and disengage the claw C (3 places) to remove the rear cover
.
4.2.7 LED Assy/ LED Assy spring
(1) Open the top cover
(2) After removing the cable, as shown in fig 2, push the LED assy
tightly in the
direction of arrow. Take the hook A out firstly, and then take the hook B out, at
last remove the LED assy.
(At this time
, the two spr
ings
is removed with LED Assy .)
Claw A
Figure (2)
Figure (1)
Figure (3)
Claw C
Claw B
Claw C
Claw B
A
A
B
Claw A
Hole A
Hole A
Top cover
Hook B
Hook A
Hook A
Figure (1)
Figure (2)
