4. Component replacement
4.2.11 Control panel Assy

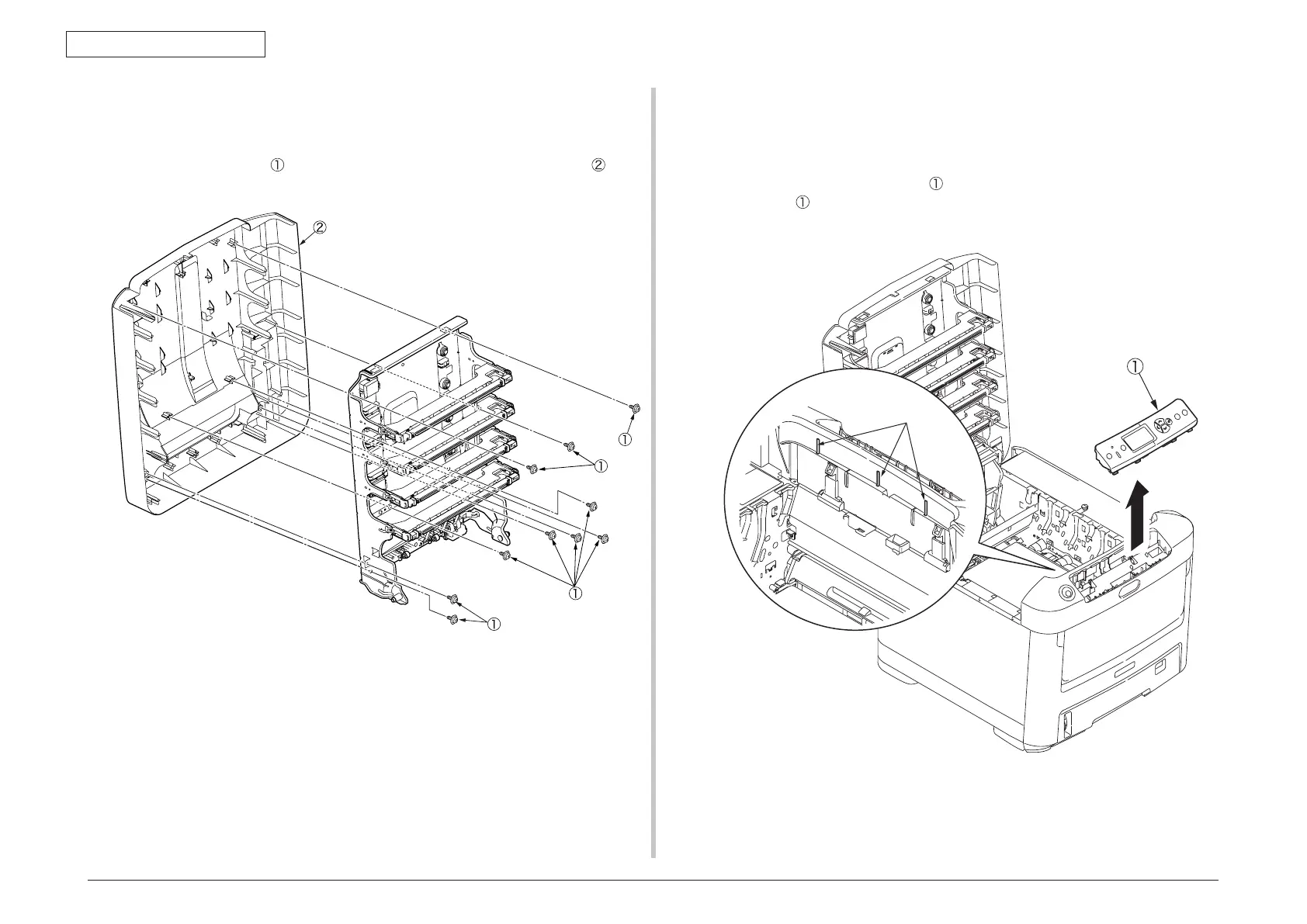

(1) Open the top cover.
(2) Insert the minus driver into the upper side of the slit (3 places) to disengage the
claws on the control panel Assy
, remove the connector and take the control
panel Assy
out.
4.2.10 Top cover
(1) Remove the top cover Assy. (See section 4.2.9)
(2) Remove ten screws
(Black, No:42932708), and remove the top cover .
