Set Up 7
English
Note 1:
When using a paper width of less than 127 mm for the
front feed and 102 mm for the rear feed, remove one
of the paper supports from between the tractors. This
is a push fit onto the supporting rods.
Note 2:
Refer to Controls & Indicators in Operation for
location of the buttons mentioned below.

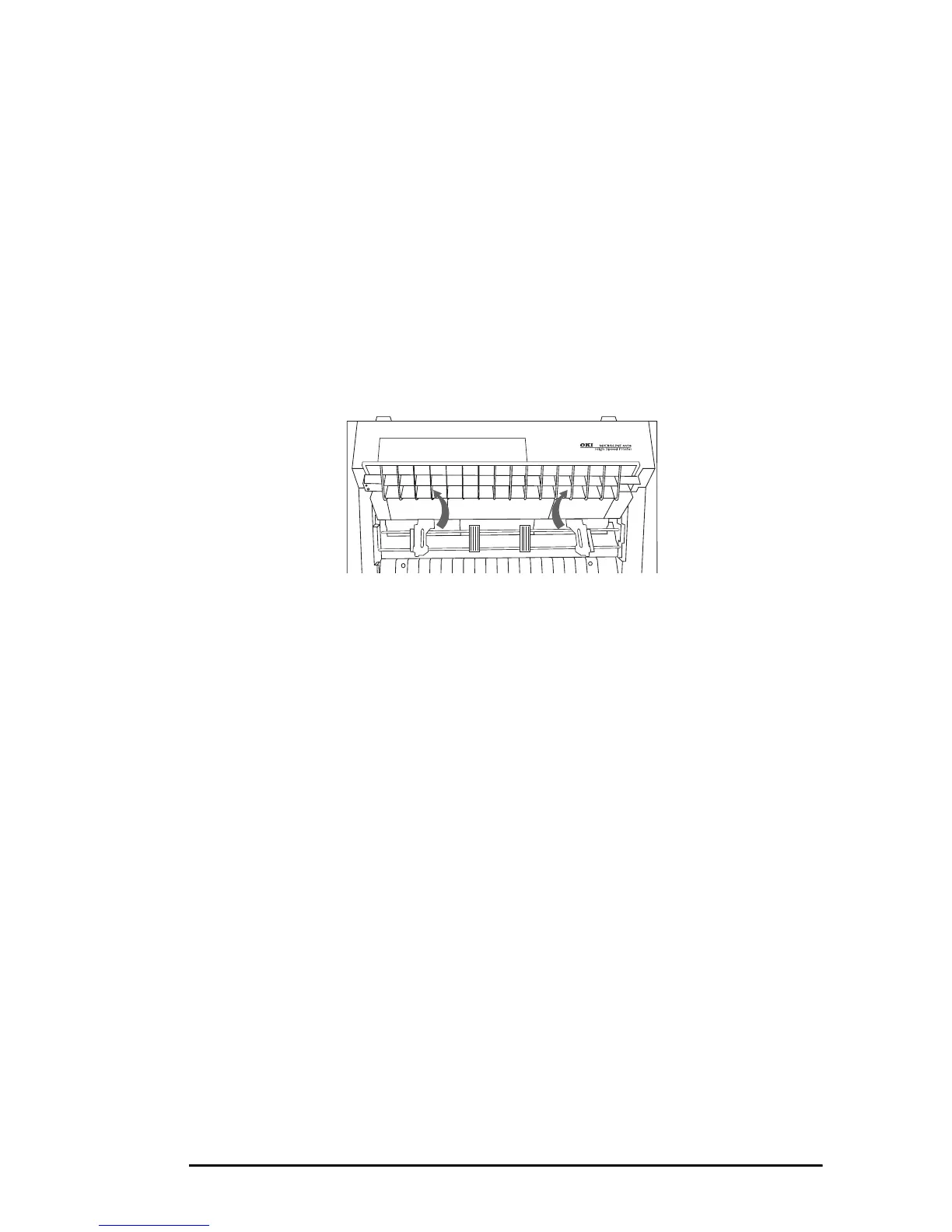

Front Paper Feed Loading
1. Open the front cover, then open the tractor covers and lift up the
tractor lock levers.
2. Move the right tractor to approximately fit the width of paper being
used.
3. Place the first three holes in the paper over the tractor pins at each
side and close the tractor covers.
4. Move the left tractor to align the edge of the paper with the
appropriate reference mark, then lock the tractor in place by
pressing down the lock lever.
5. Move the right tractor to centre the paper holes on the pins and lock
the tractor in place by pressing down the lock lever.
6. Select the paper feed path on the printer.
7. Press FF/LOAD button and the paper feeds into the printer from the
selected paper path.
Rear Paper Feed Loading
1. Open the rear cover, then open the tractor covers and lift up the
tractor lock levers.
2. Move the left tractor to approximately fit the width of paper being
used.
To Next Page
