Operation 13
English
Operation

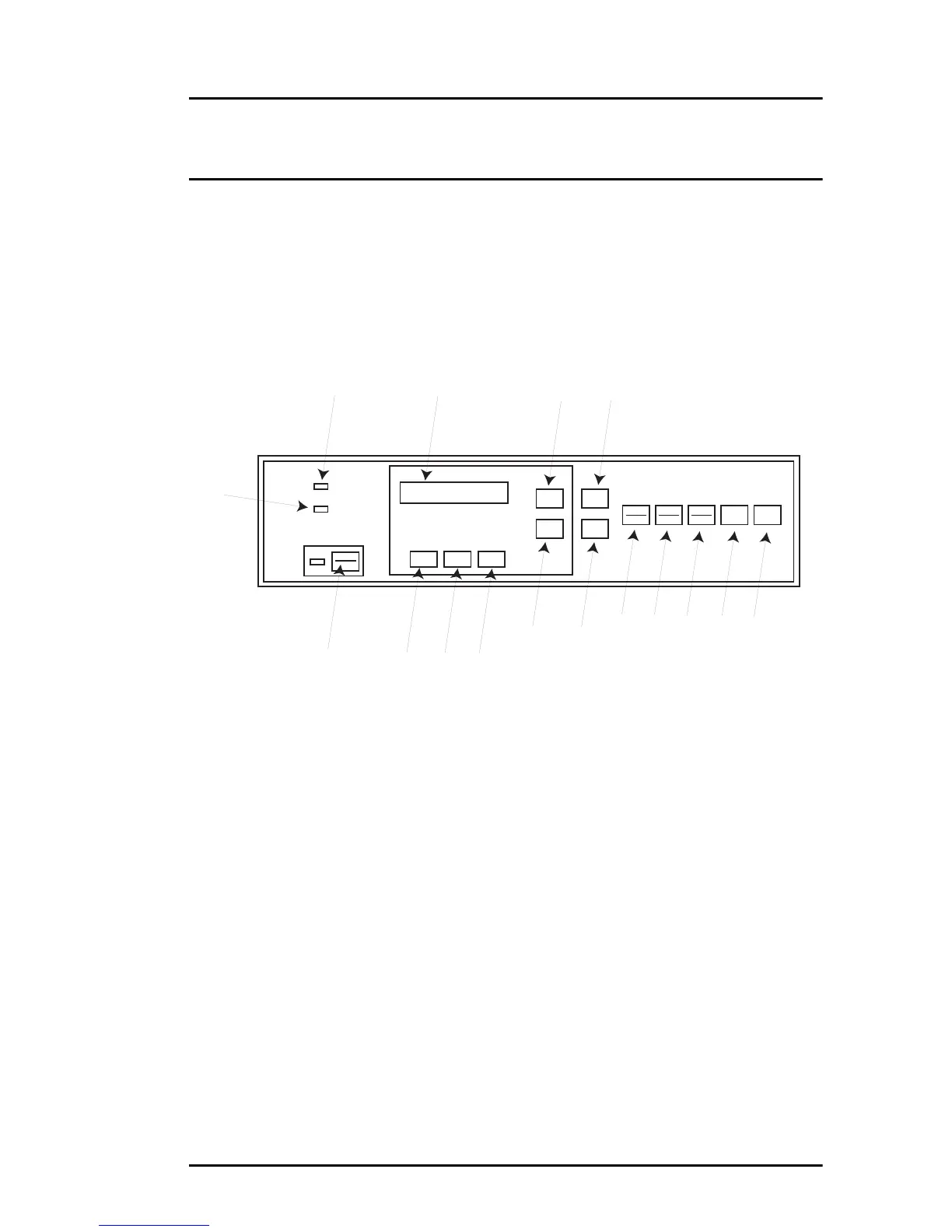

CONTROL PANEL
The control panel is used to program or configure the printer manually.
Some of the printer functions are overridden by software commands when
using the printer drivers installed in your computer.
Controls & Indicators
1 LCD Panel: Refer to this liquid crystal display (LCD) panel for
information when operating the printer and programming the printer in
menu mode.
2 POWER Indicator: Comes on when the printer is switched on.
3 ALARM Indicator: Comes on when there is a recoverable alarm
condition; e.g. paper out, paper jam, cover open. Flashes when there is a
non-recoverable alarm condition.
4 ON-LINE (RESET) Button: Switches the printer between on-line
and off-line when pressed. The ON-LINE indicator comes on when the
printer is on-line. When pressed in conjunction with the SHIFT button,
resets the printer.
5 GROUP Button: Selects the different menu groups when the
printer is in menu mode.
1
2
3
4
5
6
7
8
9
10
11
12 13 14
1516
